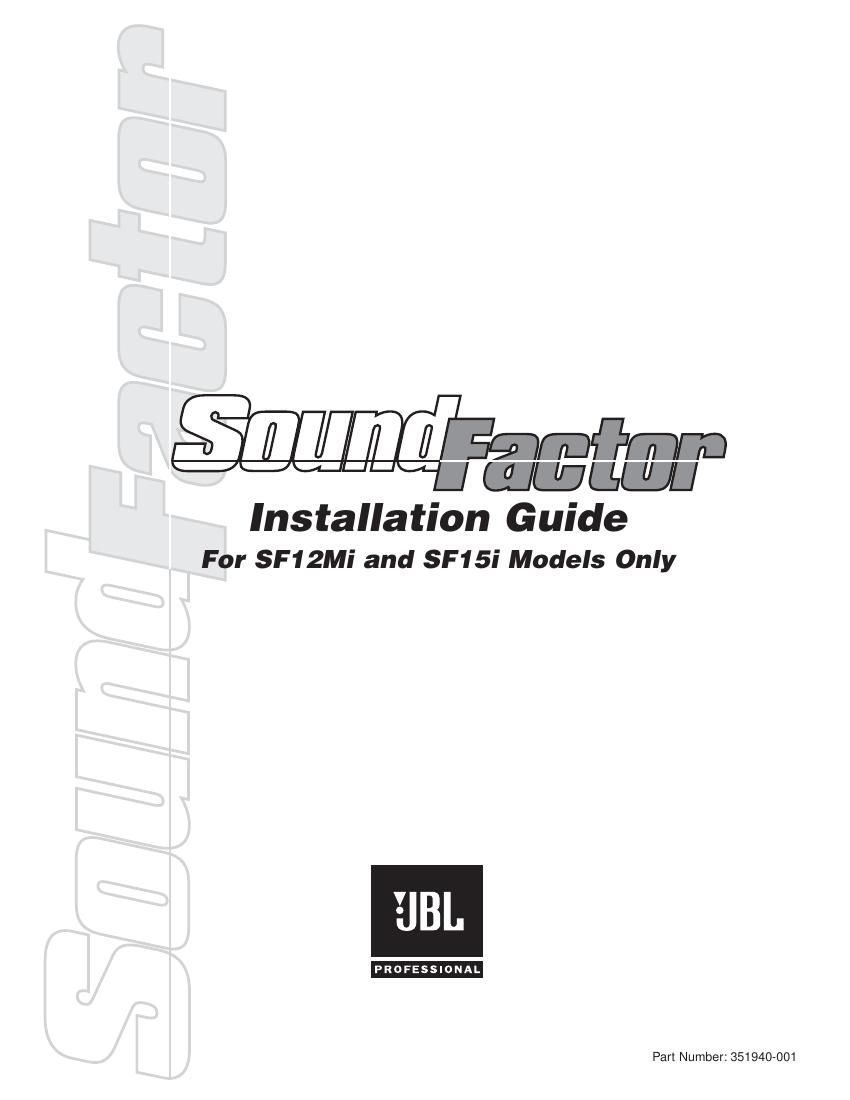

Page 1
CONTENTS Working Load Limit General Hardware Proper Use of Forged Shoulder Eyebolt Proper Sling Termination Rigging Connections Attachment to Structures Technical Specifications - SF12Mi Technical Specifications - SF15i Product Dimensions Inspection, Maintenance and Liability Resources and JBL Contact Information3 4 4 5 6 7-8 9 10 11 12 12 2 Who Is Protected By The JBL Warranty? Your JBL Warranty protects the original owner and all subsequent owners so long as: A.) Your JBL product has been purchased in the Continental United States, Hawaii or Alaska. (This Warranty does not apply to JBL prod- ucts purchased elsewhere except for purchases by military outlets. Other purchasers should contact the local JBL distributor for warranty information.); and B.) The original dated bill of sale is presented whenever warranty service is required. The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the date of the first consumer purchase. JBL amplifiers are warranted for three years from the date of original purchase. Enclosures and all other JBL products are warranted for two years from the date of original purchase. What Does The JBL Warranty Cover? Except as specified below, your JBL Warranty covers all defects in material and workmanship. The following are not covered: Damage caused by accident, misuse, abuse, product modification or neglect; damage occur- ring during shipment; damage resulting from failure to follow instructions contained in your Instruction Manual; damage resulting from the performance of repairs by someone not authorized by JBL; claims based upon any misrepresentations by the seller; any JBL product on which the serial number has been defaced, modified or removed. Who Pays For What? JBL will pay all labor and material expenses for all repairs covered by this warranty. Please be sure to save the original shipping cartons because a charge will be made if replacement cartons are requested. Payment of shipping charges is discussed in the next section of this warranty. How To Obtain Warranty Performance? If your JBL product ever needs service, write or telephone us at JBL Incorporated (Attn: Customer Service Department), 8500 Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (818/893-8411). We may direct you to an authorized JBL Service Agency or ask you to send your unit to the factory for repair. Either way, you'll need to present the original bill of sale to establish the date of purchase. Please do not ship your JBL product to the factory without prior authorization. If transportation of your JBL product presents any unusu- al difficulties, please advise us and we may make special arrangements with you. Otherwise, you are respon- sible for transporting your product for repair or arranging for its transportation and for payment of any initial shipping charges. However, we will pay the return shipping charges if repairs are covered by the warranty.
Page 2
Working Load Limit 3 The JBL SoundFactor Install loudspeakers are supplied with built-in internal braces to be used with the supplied forged shoulder eyebolts or other approved fastener. The system is designed to facilitate the sus- pension of the loudspeaker by a qualified person familiar with rigging hardware and industry practices. IMPORTANT! You must ensure that ALL installation procedures specified in this manual are carefully followed. Improper installation may result in damage, injury or death. The working load limit (WLL) of any JBL SoundFactor Install loudspeaker is maintained as long as no more than one loudspeaker is suspended by a minimum of two primary suspension points with no addi- tional load placed on the loudspeaker enclosure. The JBL SoundFactor Install loudspeakers are intend- ed for SINGLE-BOX SUSPENSION ONLY. DO NOT HANG A SECOND SPEAKER FROM A SOUND- FACTOR INSTALL SPEAKER. Secondary LoadSecondary Load Primary LoadPrimary LoadPrimary Load Secondary LoadPrimary Load SF15i SF12Mi
