Page 1

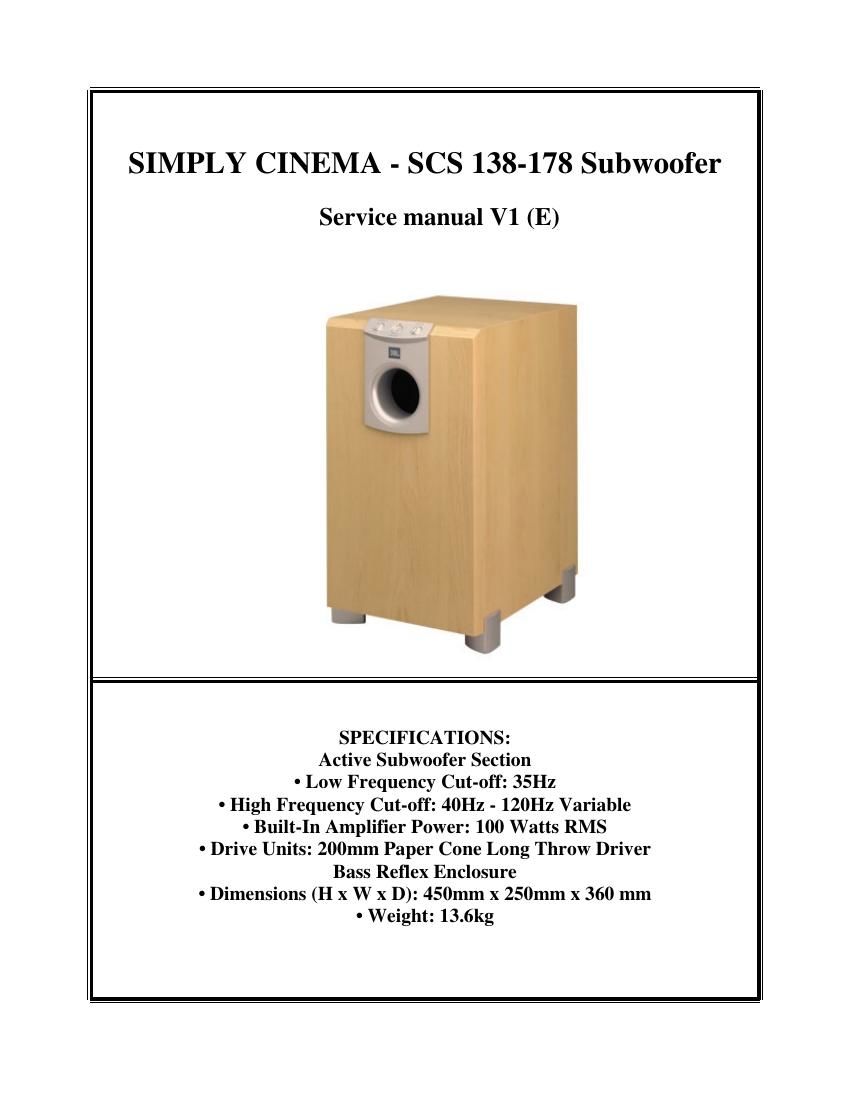

SIMPLY CINEMA - SCS 138-178 Subwoofer
Service manual V1 (E)
SPECIFICATIONS:
Active Subwoofer Section
- Low Frequency Cut-off: 35Hz
- High Frequency Cut-off: 40Hz - 120Hz Variable
- Built-In Amplifier Power: 100 Watts RMS
' Drive Units: 200mm Paper Cone Long Throw Driver
Bass Reflex Enclosure
0 Dimensions (H X W X D): 450mm X 250mm X 360 mm
- Weight: 13.6kg
