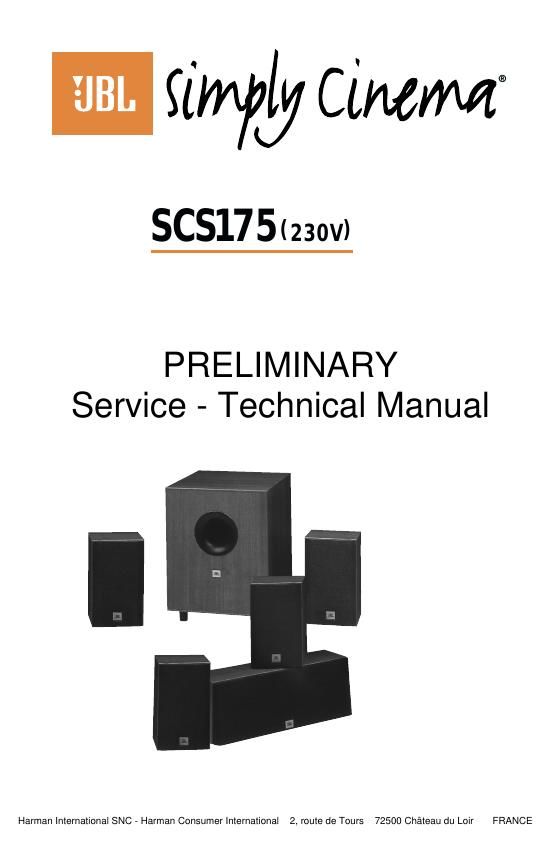

Jbl scs 175 service manual
This is the 13 pages manual for jbl scs 175 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from jbl scs 175 service manual (Ocr-read)
Page 1
SCS satellite Freq. Resp.: 90-22000 Hz Crossover: 4 kHz Sensitivity: 86 dB Nom. Imp.: 8 Ohms Recommended amp.: 25-100 Watts Drivers: 100 mm woofer / 10 mm polymer tweeter Dimensions (HxWxD): 230 x 140 x 164 mm Weight: 2,5 kg SCS center Freq. Resp.: 120-22000 Hz Crossover: 3 kHz Sensitivity: 88 dB Nom. Imp.: 8 Ohms Recommended amp.: 25-100 Watts Drivers: Two 100 mm woofer / 10 mm polymer tweeter Dimensions (HxWxD): 160 x 410 x 159 mm Weight: 4 kg SCS active sub- woofer Low-freq. cut-off: 36 Hz High-freq. cut-off: Adjustable 40-130 Hz Built-in power amp.: 110 Watts Driver: 210 mm long throw woofer Dimensions (HxWxD): 350 x 295 x 350 mm Weight: 11 kg SCS 175 Technical Specifications Refinements may be made on occasion to existing products without notice, but will always meet or exceed original specifications unless otherwise stated. JBL Consumer Products 250 Crossways Park Drive, Woodbury, NY 11797 8500 Balboa Boulevard, Northr idge, CA 91329 Europe: 2, route de Tours, 72500 Château du Loir, France www.jbl.com ©2001 JBL, Incorporated. JBL and Simply Cinema are registered trademarks of JBL, Incorporated. Printed 06/2001 Part No. SCS175OM230V A Harman International Company Declaration of Conformity We, JBL Europe, HCI 2, route de Tours 72500 Château-du-Loir France declare in own responsibility, that the product described in this owners manual is in compliance with technical standards: EN 55013/A12:1994 EN 55020:1994 EN 55022:1994 class B EN 61000-3-2:1995 EN 61000-3-3:1995 Luc Emmanuel Godard Harman Consumer International France.06/01
Page 2
On shelves. On the wall. Mounting Options On optional stands. Subwoofer Surround Speakers 150-180 cm Satellites and Surrounds one. Speaker Placement Satellites The customer is responsible for proper selection and use of mounting hardware, available through hardware stores, to properly and safely wall-mount the speakers.Always start with the subwoofer as close to one of the front cor- ners as possible to take advan- tage of solid-angle gains. If you get too much bass, adjust the VOLUME towards MIN. The result will be lower distortion and higher reliability. If the excessive bass is at one or more discrete frequencies, then it might be necessary to consider dealing with room modes. Here are your options: - Modify the acoustical coupl- ing of the subwoofer to the room boundaries and/or the room modes, i.e. move the subwoofer. - Modify the acoustical cou- pling of the listener to the room boundaries and/or the room modes, i.e. move the listener. - Move both the subwoofer and the listener.
