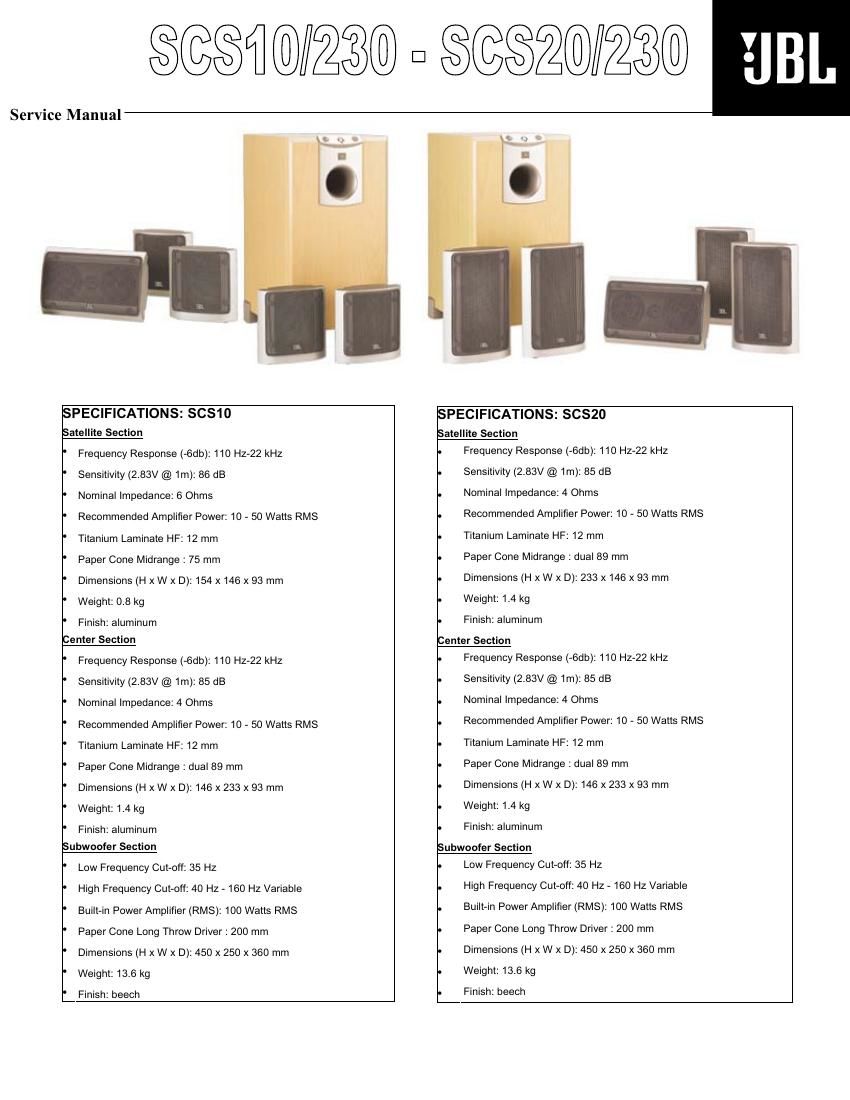

Page 1
Service Manual
§@$1]@//2@@ a §@§@@I2@@
EIB
SPECIFICATIONS: SCS10
Satellite Section
Frequency Response (-6db): 110 Hz-22 kHz
Sensitivity (2.83V @ 1m): 86 dB
Nominal Impedance: 6 Ohms
Recommended Amplifier Power: 10 - 50 Watts RMS
Titanium Laminate HF: 12 mm
Paper Cone Midrange : 75 mm
Dimensions (H x W x D): 154 x 146 x 93 mm
Weight: 0.8 kg
Finish: aluminum
Center Section
Frequency Response (-6db): 110 Hz-22 kHz
Sensitivity (2.83V @ 1m): 85 dB
Nominal Impedance: 4 Ohms
Recommended Amplifier Power: 10 . 50 Watts RMS
Titanium Laminate HF: 12 mm
Paper Cone Midrange : dual 89 mm
Dimensions (H x W x D): 146 x 233 x 93 mm
Weight: 1.4 kg
Finish: aluminum
Subwoofer Section
Low Frequency Cutoff: 35 Hz
High Frequency Cut-off: 40 Hz . 160 Hz Variable
Built~in Power Amplifier (RMS): 100 Watts RMS
Paper Cone Long Throw Driver : 200 mm
Dimensions (H x W x D): 450 x 250 x 360 mm
Weight: 13.6 kg
Finish: beech
SPECIFICATIONS: SCSZO
Satellite Section
Frequency Response (~6db): 110 HZ-22 kHz
Sensitivity (2.83V @ 1m): 85 dB
Nominal Impedance: 4 Ohms
Recommended Amplifier Power: 10 - 50 Watts RMS
Titanium Laminate HF: 12 mm
Paper Cone Midrange : dual 89 mm
Dimensions (H x W x D): 233 x146 x 93 mm
Weight: 1.4 kg
Finish: aluminum
Center Section
Frequency Response («6db): 110 Hz-22 kHz
Sensitivity (2.83V @ 1m): 85 dB
Nominal Impedance: 4 Ohms
Recommended Amplifier Power: 10 - 50 Watts RMS
Titanium Laminate HF: 12 mm
Paper Cone Midrange : dual 89 mm
Dimensions (H x W x D): 146 x 233 x 93 mm
Weight: 1.4 kg
Finish: aluminum
Subwoofer Section
Low Frequency Cutoff: 35 Hz
High Frequency Cut-off: 40 Hz - 160 Hz Variable
Built~in Power Amplifier (RMS): 100 Watts RMS
Paper Cone Long Throw Driver : 200 mm
Dimensions (H x W x D): 450 x 250 x 360 mm
Weight: 13.6 kg
Finish: beech
