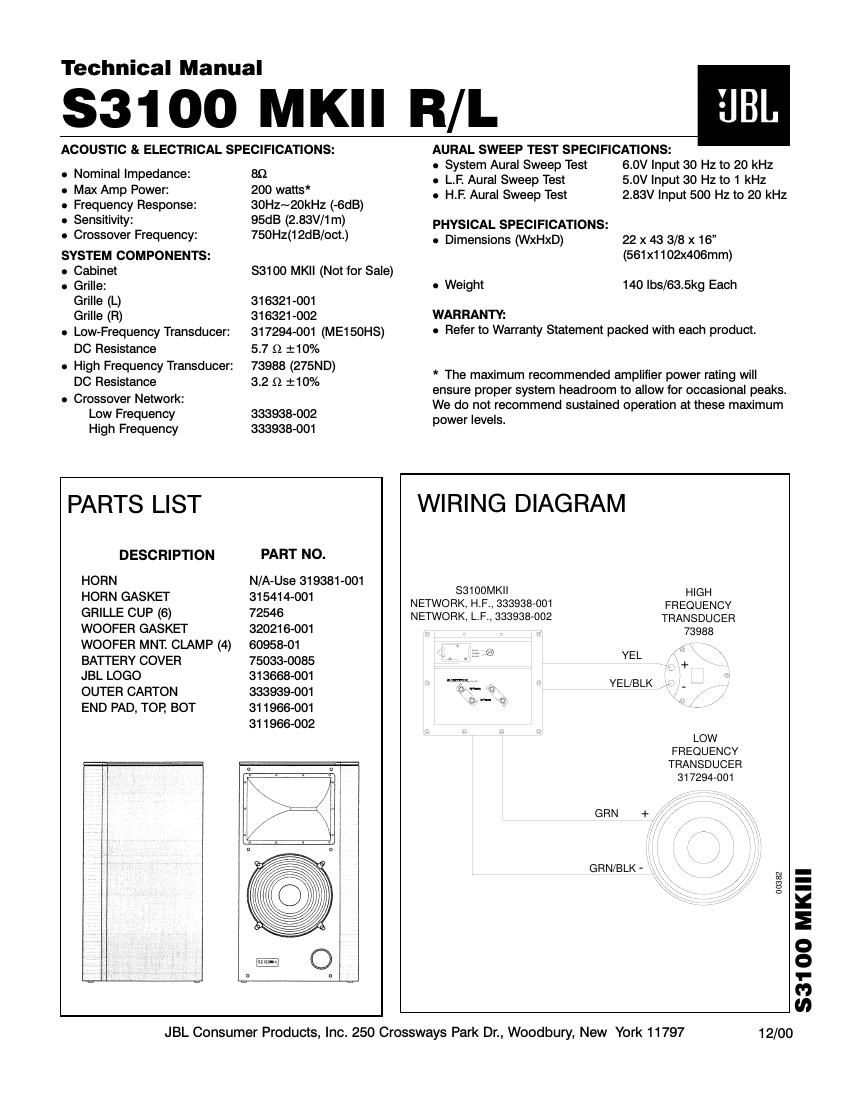

Page 1
Technical Manual
S31 00 MKII R/L
JBL
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
Nominal Impedance:
Max Amp Power:
Frequency Response:
Sensitivity:
Crossover Frequency:
SYSTEM COMPONENTS:
89
200 watts*
30Hz~20kHz (-6dB)
95dB (2.83V/1 m)
750Hz(12dB/oct.)
o Cabinet $3100 MKII (Not for Sale)
0 Grille:
Grille (L) 316321-001
Grille (R) 316321-002
o Low-Frequency Transducer: 317294-001 (ME150HS)
DC Resistance 5.7 Q 110%
- High Frequency Transducer: 73988 (275ND)
DC Resistance 3.2 Q 110%
o Crossover Network:
Low Frequency 333938-002
High Frequency 333938-001
PARTS LIST
DESCRIPTION PART NO.
HORN N/A-Use 319381-001
HORN GASKET 315414-001
GRILLE CUP (6) 72546
WOOFER GASKET 320216-001
WOOFER MNT. CLAMP (4) 60958-01
BATTERY COVER 75033-0085
JBL LOGO 313668-001
OUTER CARTON 333939-001
END PAD, TOP, BOT 311966-001
31 1966-002
JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797
AURAL SWEEP TEST SPECIFICATIONS:
0 System Aural Sweep Test
0 LE Aural Sweep Test
0 HF. Aural Sweep Test
PHYSICAL SPECIFICATIONS:
0 Dimensions (WxHxD)
. Weight
WARRANTY:
6.0V Input 30 HZ to 20 kHz
5.0V Input 30 HZ to 1 kHz
2,83V Input 500 Hz to 20 kHZ
22 x 43 3/8 x16"
(561 x1 1 02x406mm)
140 lbs/63.5kg Each
0 Refer to Warranty Statement packed with each product.
* The maximum recommended amplifier power rating will
ensure proper system headroom to allow for occasional peaks.
We do not recommend sustained operation at these maximum
power levels.
WIRING DIAGRAM
33100MKII
NETWORK, H.F., 333938-001
NETWORK, L.F., 333938-002
HIGH
FREQUENCY
TRANSDUCER
73988
YEL
+
YEL/BLK
LOW
FREQUENCY
TRANSDUCER
317294-001
GRN/BLK »
00382
$3100 MKIII
12/00
