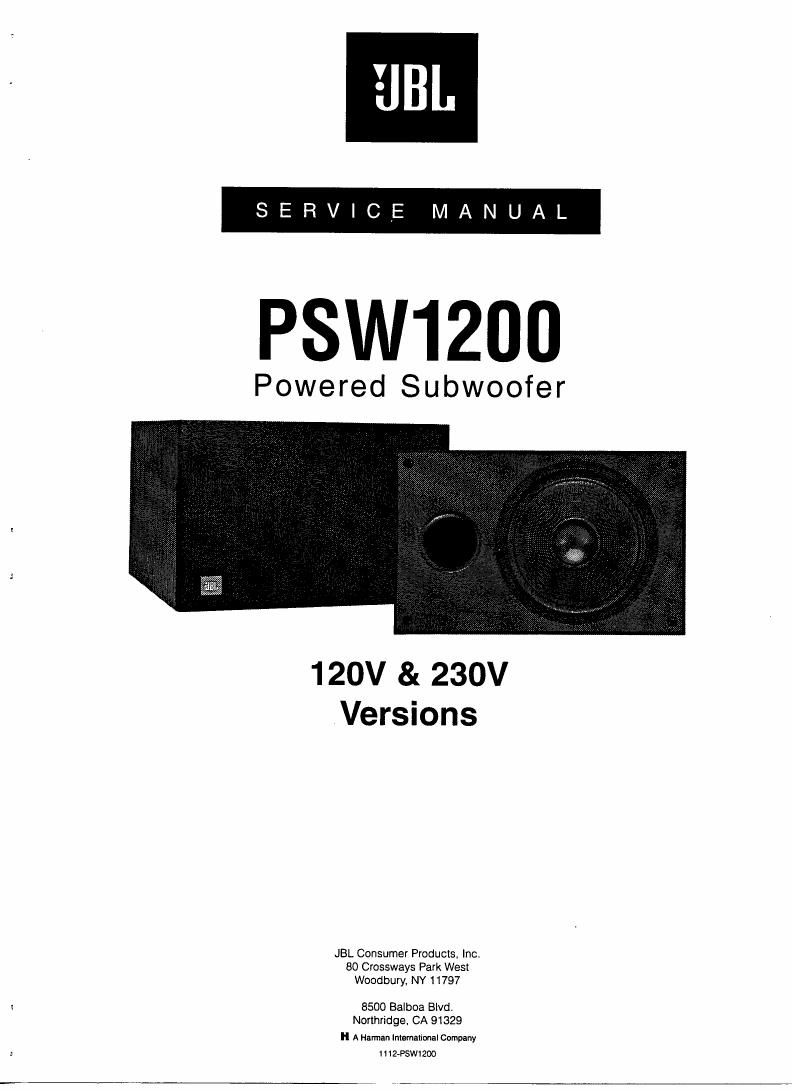

Jbl psw 1200 service manual

Page 2

Table of Contents

Warranty ....................................................................................................................................... 1
Specifications .......... 2
Safety Information ................................................... 3
Principles of Operation ......................................................... 5
Troubleshooting Before opening. 5
Removing the Amplifier ................... 6
Troubleshooting Afler Removal... ............................................. 6
Final Checks .......................................................................................................... 1 1

List of Safety Components Requiring Exact Replacements.

Driver Test Procedure ........................................................... 12
Parts List ............................... 13
Exploded View ............................................................. 17
Component Locations... ..................................... 1 8
Schematics ................................................................................................................................... 19

mm

The following warranty information is provided with all PSW Series products:

URL

1 Year Limited Warranty - Electronics
5 Year Limited Warranty - Loudspeakers

This is an important document. Attach a copy of your bill of sale to this card and keep it in
a safe place. Your bill of sale is your warranty.

The JBL warranty on the electronic components within this loudspeaker system remains in effect
for one year from the date of the first consumer purchase.

The JBL warranty on loudspeaker components (except enclosures) remains in effect for five
years from the date of the first consumer purchase. Enclosures are warranted for two years from
the date of purchase.

WHO IS PROTECTED BY THIS WARRANTY

The JBL warranty protects the original owner and all subsequent owners providing that the JBL
product was purchased from an authorized dealer in the United States or purchased by military
personnel from an authorized military outlet. A copy of the original dated bill of sale must be
presented whenever warranty service is required.

WHAT IS COVERED BY THIS WARRANTY
Except as specified below, the JBL warranty covers all defects in material and workmanship. The
following are not covered: Damage caused by accident, misuse, abuse, product modification or

1
