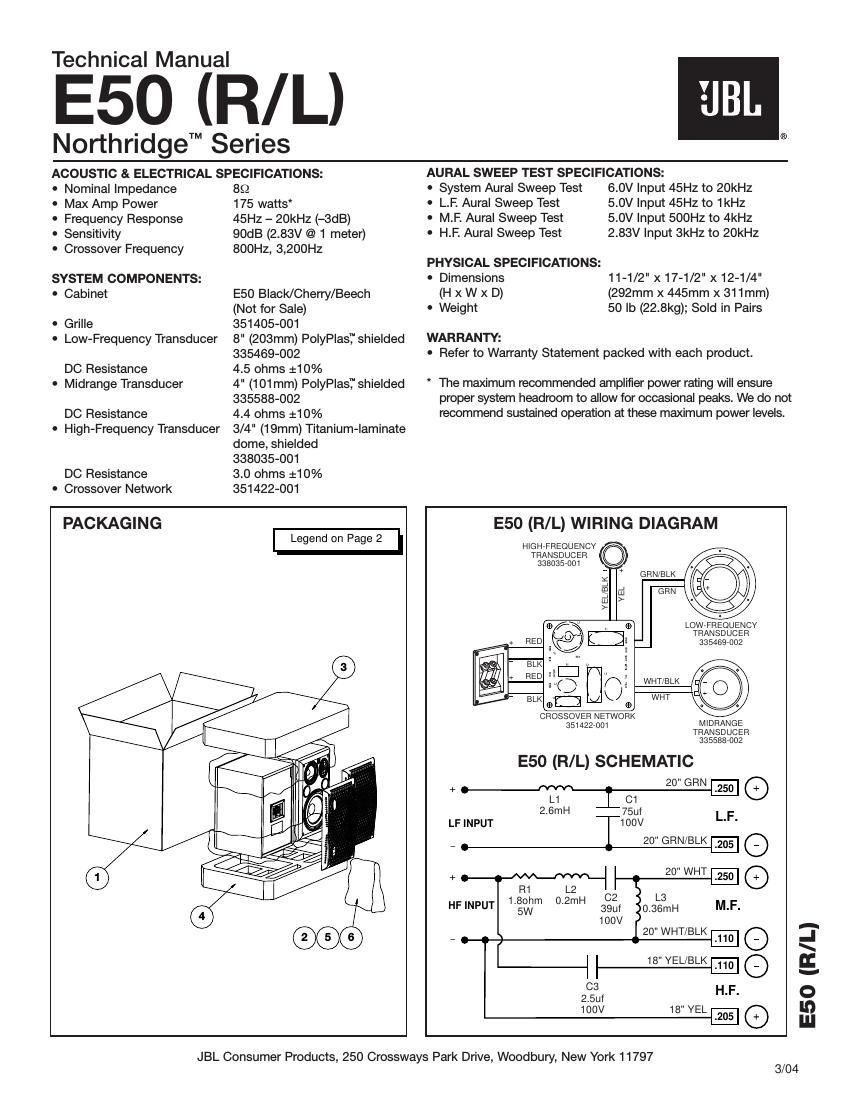

E50 Cabinet – Not for Sale (Left Cabinet Shown) 21 20 12 24 23 11 16 19 9 8 7 18 14 15 17 15 22 16 13 25 (4) (2) 10 E50 (R/L) JBL Consumer Products, 250 Crossways Park Drive, Woodbury, New York 11797 3/04 ITEM NO. DESCRIPTION QTY. PART NO. 1. Outer Carton (Black) 1 351380-001 (Beech) 351380-002 (Cherry) 351380-003 2. Owners Manual 1 350038-002 3. End Pad (top) 1 351381-001 4. End Pad (bottom) 1 351381-002 5. Bump-On Pads 8 330104-001 6. Warranty Card 1 338322-001 7. Tweeter 1 338035-001 8. Tweeter Gasket 1 350354-001 9. Tweeter Faceplate 1 350130-001 10. Woofer 1 335469-002 11. Grille 1 351405-001 12. Port Tube 2 337775-004 13. Terminal Cup 1 351317-001 ITEM NO. DESCRIPTION QTY. PART NO. 14. Screw (tweeter) 2 905402-010 MS PHH H/L 6-19 x 5/8 ZNC 15. Screw (twt faceplate/mid driver) 8 908302-012 PB, HXS, #6 x 3/4 ZNC 16. Screw (term cup/xover) 8 882-41110-12 6 X 3/4, PAN, PH, PB, BLK ZINC, LCS 17. Screw (woofer) PB, HXS, #8 x 3/4 ZNC 6 903802-012 18. Tweeter Hold-Down Bar 1 338059-001 19. Crossover Network 1 351422-001 20. Trim Ring (midrange) 1 350144-001 21. Midrange 1 335588-002 22. Grille Retainer (Black mdl) 4 333249-001 (Beech/Cherry mdls) 333249-003 23. Logo (cabinet) 1 350542-001 24. Flower Pot, Plastic 1 334072-001 25. Shorting Straps (set) 1 CS06-6 Technical Manual E50 ( R/L ) Northridge ™ Series EXPLODED VIEW
