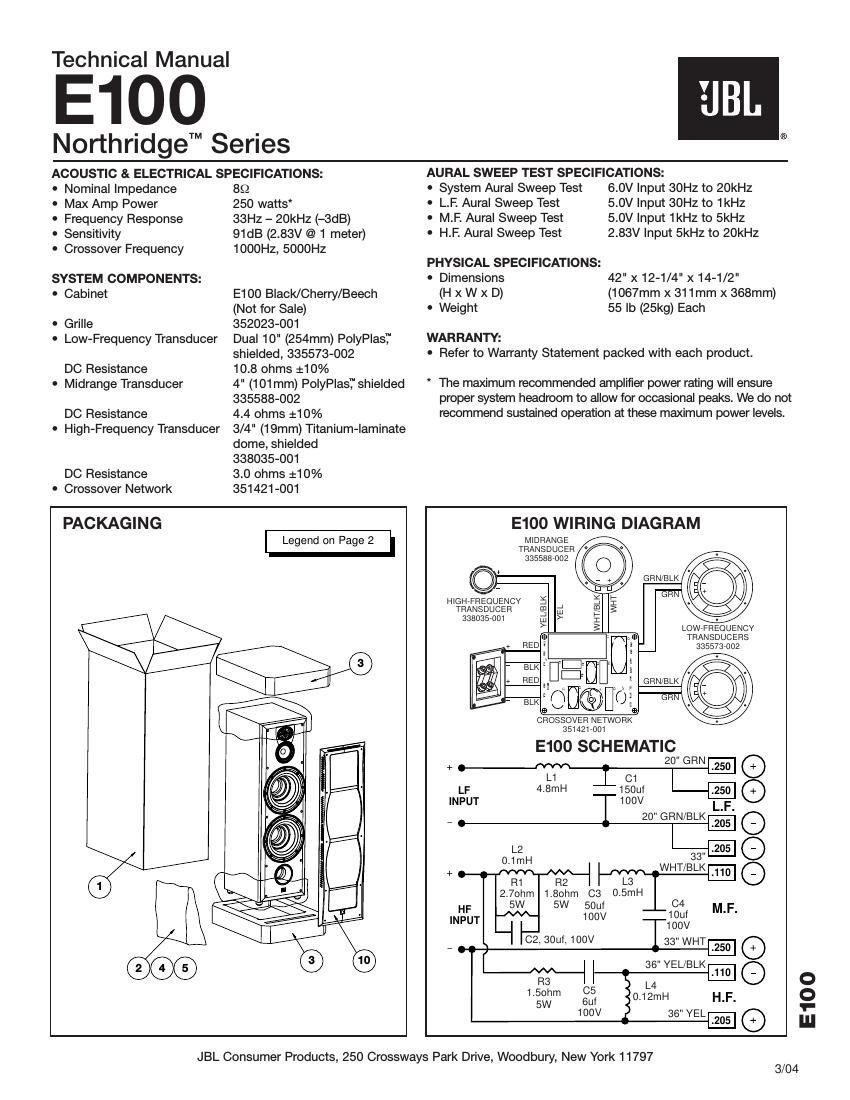

E100 Cabinet – Not for Sale 25 22 8 20 14 19 9 11 7 6 17 13 23 10 21 16 24 18 15 15 12 (4) (10) E10 0 JBL Consumer Products, 250 Crossways Park Drive, Woodbury, New York 11797 3/04 ITEM NO. DESCRIPTION QTY. PART NO. 1. Outer Carton (Black) 1 351417-001 (Beech) 351417-002 (Cherry) 351417-003 2. Owners Manual 1 350038-002 3. End Pad 2 351418-001 4. Spike Foot Set 1 338076-001 5. Warranty Card 1 338322-001 6. Tweeter 1 338035-001 7. Tweeter Gasket 1 350354-001 8. Tweeter Faceplate 1 350130-001 9. Woofer 2 335573-002 10. Grille 1 352023-001 11. Port Tube 1 350426-004 12. Terminal Cup 1 351317-001 13. Screw (tweeter) 2 905402-010 MS PHH H/L 6-19 x 5/8 ZNC ITEM NO. DESCRIPTION QTY. PART NO. 14. Screw (twt faceplate/mid driver) 8 908302-012 PB, HXS, #6 x 3/4 ZNC 15. Screw (term cup/xover) 8 882-41110-12 6 X 3/4, PAN, PH, PB, BLK ZINC, LCS 16. Screw (woofer) PB, HXS, #8 x 3/4 ZNC 16 903802-012 17. Tweeter Hold-Down Bar 1 338059-001 18. Crossover Network 1 351421-001 19. Trim Ring (midrange) 1 350144-001 20. Midrange 1 335588-002 21. Grille Retainer (Black mdl) 10 333249-001 (Beech/Cherry mdls) 333249-003 22. Logo (cabinet) 1 350542-001 23. Flower Pot, Plastic 1 334072-001 24. Shorting Straps (set) 1 CS06-6 25. Foot Assembly w/Threaded Insert 4 338037-001 Technical Manual E10 0 Northridge ™ Series EXPLODED VIEW
