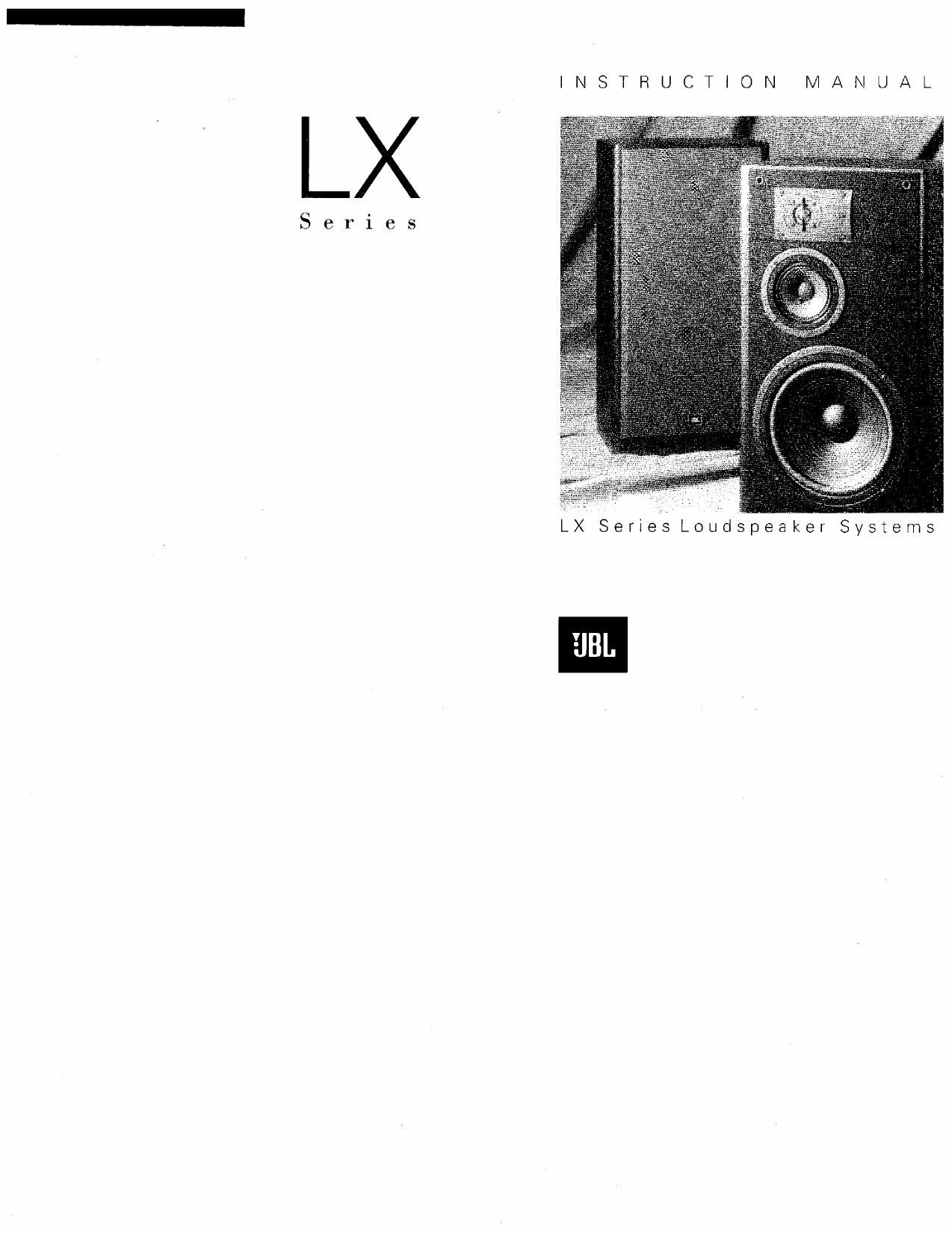

Page 1
INSTRUCTION MANUAL
Series
LX Serle's Loudspeaker Systems
{IBL
Page 2
LX Series Instruction Manual
Congratulations on choosing JBL
LX Series loudspeakers. IBL LX
Series loudspeakers were designed
using technology developed for JBLs
latest studio monitor systems.
The same low distortion, accurate,
dynamic sound demanded by .
recording professionals is available
for the home listener.
Placement
Built with careful attention to detail.
and with only the highest-quality
materials, your .lBL speakers will
provide many years of excellent
performance.
The instructions in this manual will
help you realize the full potential of
your loudspeakers.
J BL LX Series loudspeakers are
designed to produce a flat frequency
response in the home when located
free standing, at least 1 foot from wall.
40 -60
m
(Fig. 1)
The LX22 will additionally benefit
from placement 3" from the wall or
back panel when set on a bookshelf
or 15" to 20" from the wall when
placed on a speaker stand.
For best stereo imaging, the two
loudspeakers should be equidistant
from your listening position and
separated by an angle of between 40°
and 60° (see Fig. 1). For example. if
your listening position is 8 to 12 feet
from each speaker, the two systems
should be about 8 feet apart. Since
every room is different, there are no
absolutes regarding placement. so
please experiment.
