JBL LX 2000 SUB Service Manual
This is the 12 pages manual for JBL LX 2000 SUB Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from JBL LX 2000 SUB Service Manual (Ocr-read)

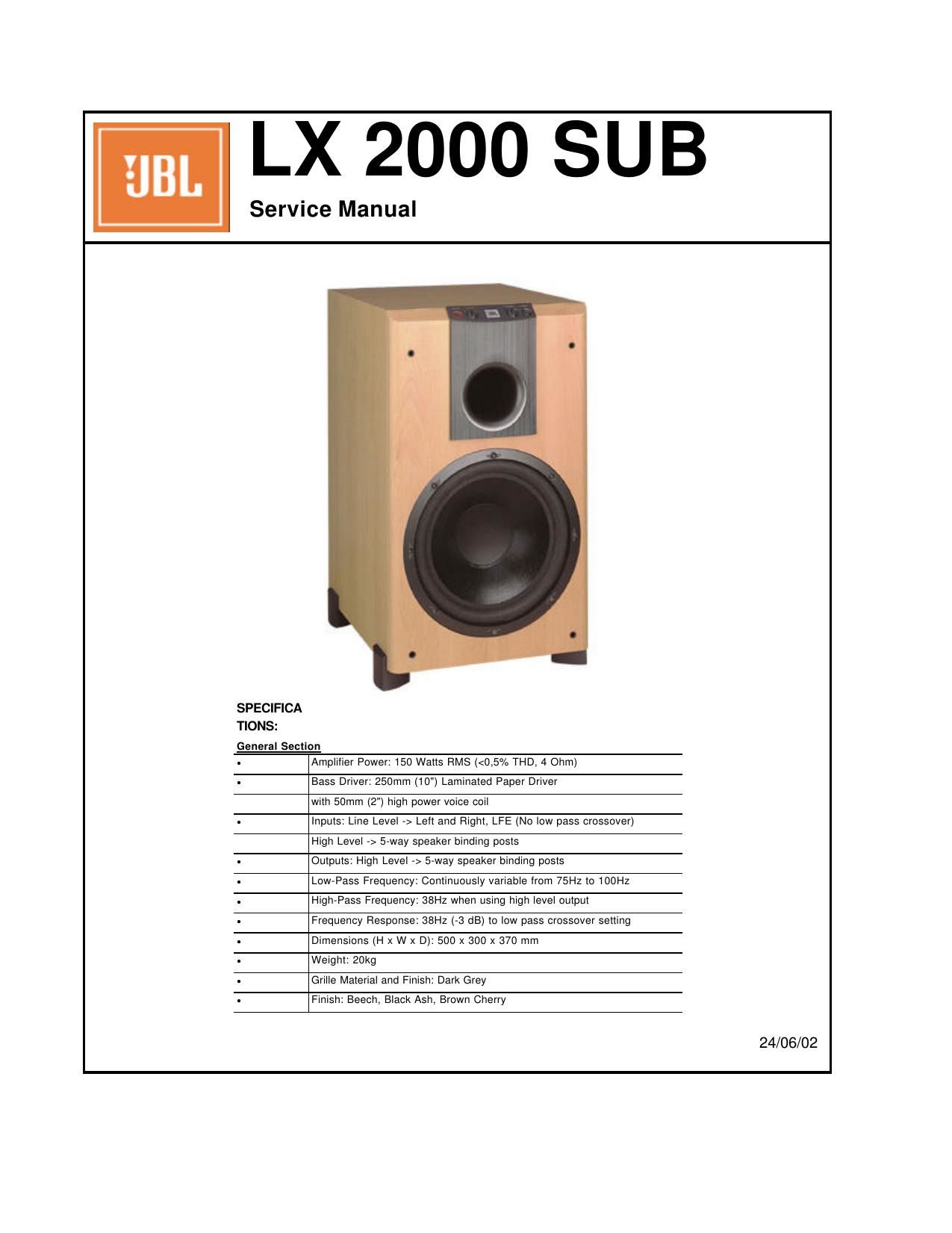

Page 1
JB
LX 2000 SUB
Service Manual
SPECIFICA
110NS:
General Section
Amplifier Power: 150 Watts RMS (<0,5% THD, 4 Ohm)
Bass Driver: 250mm (10") Laminated Paper Driver
with 50mm (2") high power voice coil
Inputs: Line Level -> Lelt and Right, LFE (No low pass crossover)
High Level -> 5-way speaker binding posts
Outputs: High Level -> 5-way speaker binding posts
Low-Pass Frequency: Continuously variable lrorn 75Hz to 100Hz
High-Pass Frequency: 38Hz when using high level output
Frequency Response: 38Hz (-3 dB) to low pass crossover setting
Dimensions (H x W x D): 500 x 300 x 370 mm
Weight: 20kg
Grille Material and Finish: Dark Grey
Finish: Beech, Black Ash, Brown Cherry
24/06/02
Page 2
TechnicoI Manual
LX-QOOO SUB
SPECIFICATIONS
ACOUSTIC 8c ELECTRICAL SPECIFICATIONS: PHYSICAL SPECIFICATIONS:
* Law-freq. Cut off 75 Hz 7 100 Hz * Enclosure Dimensions (H,W,D):500x300x370mm.
* HIgh-freqi Cut-off 38 Hz (19.7x1I.8x14.6 Inch.)
* Built in Power amp. 150 Watts RMS * N51 Weight; 47.4 Ibs. (21,5 kg.)
SYSTEM COMPONENTS: WARRANTY INFORMATION:
* Cub'met ELX-2000 SUE [Not for sale) * Refer to the Warranty Statement packed with each product
* GrIlIe: GLX-ZOUU SUB [2404510)
* Woofer SE221DA 250mm Wuofer
Laminated Paper Drive,
50mm high power voice coil
DC Resistance: 2.92 Ohm
PACKAGE- SCHEMATIC
Spike set JBL 2000 Sub
Stymfoam (2) 9431235
9832229 \
Curto n
5820 1 4-4
Valid fron BeriuI nu. DIUDI
Rev.
LX42OOO SUB
