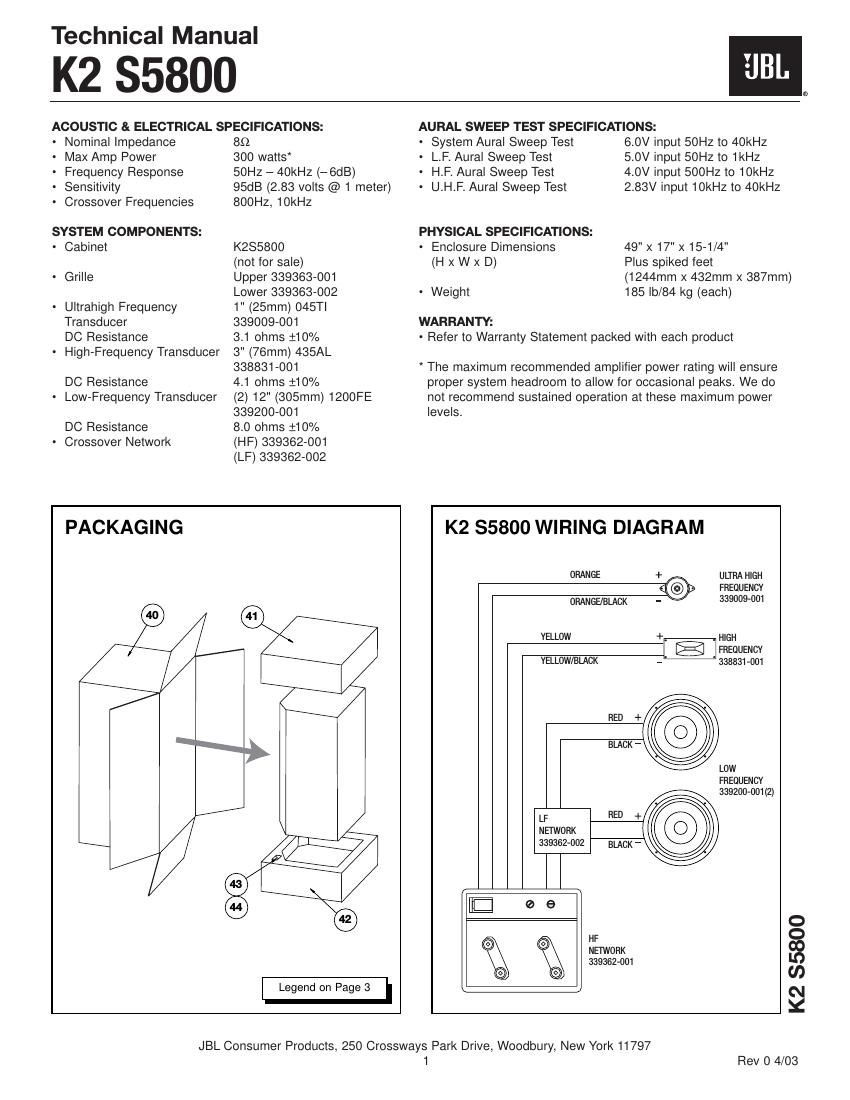

Page 1
Technical Manual
K2 S5800 BL
®
ACOUSTIC & ELECTRICAL SPECIFICATIONS: AURAL SWEEP TEST SPECIFICATIONS:
- Nominal Impedance 80 - System Aural Sweep Test 6.0V input 50Hz to 40kHz
- Max Amp Power 300 watts" - L.F. Aural Sweep Test 5.0V input 50Hz to 1kHz
- Frequency Response 50Hz - 40kHz (-6dB) - H.F. Aural Sweep Test 4.0V input 500Hz to 10kHz
- Sensitivity 95dB (2.83 volts @ 1 meter) - U.H.F. Aural Sweep Test 2.83V input 10kHz to 40kHz
- Crossover Frequencies 800Hz, 10kHz
SYSTEM COMPONENTS: PHYSICAL SPECIFICATIONS:
- Cabinet K285800 - Enclosure Dimensions 49" x 17" x 15-1/4"
(not for sale) (H x W x D) Plus spiked feet
- Grille Upper 339363-001 (1244mm x 432mm x 387mm)
Lower 339363-002 - Weight 185 lb/84 kg (each)
- Ultrahigh Frequency 1" (25mm) 045T|
Transducer 339009-001 WARRANTY:
DC Resistance 3.1 ohms 110% - Refer to Warranty Statement packed with each product
- High»Frequency Transducer 3" (76mm) 435AL
338831-001 * The maximum recommended amplifier power rating will ensure
DC Resistance 4.1 ohms t10% proper system headroom to allow for occasional peaks. We do
- Low-Frequency Transducer (2) 12" (305mm) 1200FE not recommend sustained operation at these maximum power
339200-001 levels.
DC Resistance 8.0 ohms :10%
- Crossover Network (HF) 339362-001
(LF) 339362-002
PACKAGING K2 S5800 WIRING DIAGRAM
ORANGE + , ULTRA HIGH
© r FREQUENCY
ORANGE/BLACK - , 3390097001
VELLOW + HIGH
FREQUENCY
VELLOW/BLACK - . 3388317001
RED + @
BLACK -
1
LOW
FREQUENCY
asezooroouz)
LF RED +
NETWORK
3393627002 BLACK -
HF
NETWORK
3393627001
Legend on Page 3
JBL Consumer Products, 250 Crossways Park Drive, Woodbury. New York 11797
1 Rev 0 4/03
K2 S5800
