Page 1

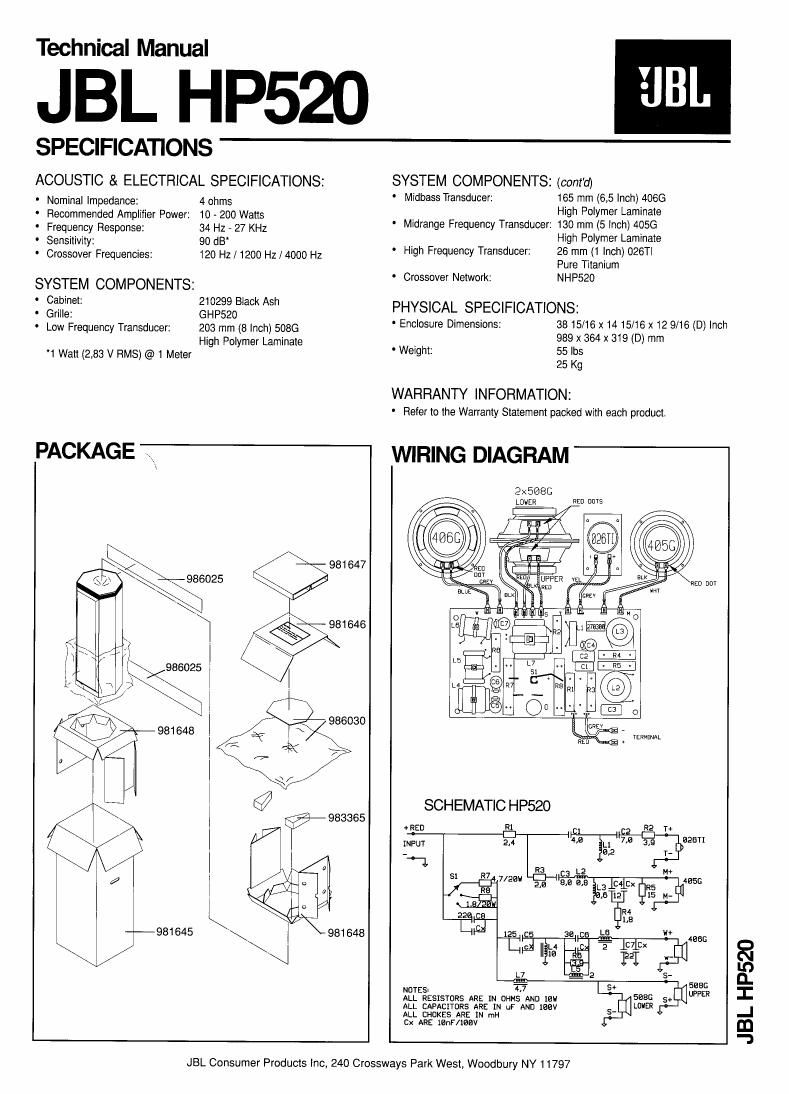

Technical Manual
JBL HP5
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
- Nominal Impedance: 4 ohms
' Recommended Amplifier Power: 10 - 200 Watts
- Frequency Response: 34 Hz - 27 KHz
' SensitIvIty: 90 dB'
' Crossover Frequencies: 120 Hz / 1200 Hz / 4000 Hz
SYSTEM COMPONENTS:
c Cabinet: 210299 Black Ash
' Grille: GHP520
- Low Frequency Transducer: 203 mm (8 Inch) SOBG
High Polymer Laminate
1 Watt (2,83 V FIMS) @1 Meier
PACKAGE
986030
SYSTEM COMPONENTS: (conta)
' Midbass Transducer: 165 mm (6,5 Inch) 4066
High Polymer Laminate
' Midrange Frequency Transducer: 130 mm (5 Inch) 4056
High Polymer Laminate
26 mm (1 Inch) 026T|
Pure Titanium
NHP520
' High Frequency Transducer:
- Crossover Network:
PHYSICAL SPECIFICATIONS:
' Enclosure Dimensions: 3815/16 x14 15/16 x 12 9/16 (D) Inch
989 x 364 x 319 (D) mm
55 lbs
25 Kg
WARRANTY INFORMATION:
' Refer to the Warranty Statement packed with each product:
' Weight:
WIRING DIAGRAM
2X508G
RED ours
TERMINAL
SCHEMATIC HP520
+RED R1 :1 R2 1+
INF-UT 4,3 Ll , azan
_ a;
-1,
a
8,8 9,9 L3 (:4 Ex R5 55
in 12 gm 'III
I mac
NDTESI T7 5
ALL RESISTDRS ARE IN OHHS AND mu
ALL CAPACITORS ARE IN uF AND IBBV
ALL CHOKES ARE IN mH
Ox ARE lenF/IBBV
JBL Consumer Products Inc, 240 Crossways Park West, Woodbury NY 11797
JBL HP520
