Jbl hls 820 service manual
This is the 2 pages manual for jbl hls 820 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from jbl hls 820 service manual (Ocr-read)
Page 1

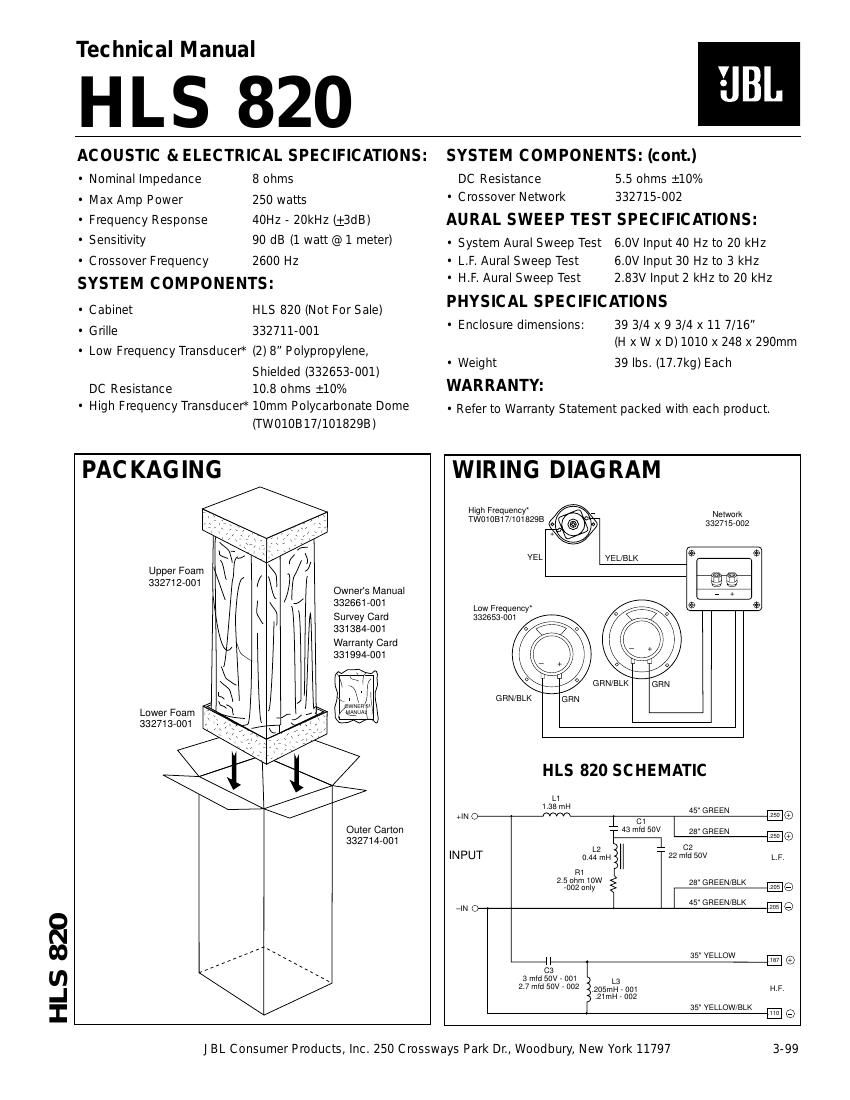

Foilcal 332662-004 332711-001 Grille Assembly Crossover Network 332715-002Plastic Foot 331831-001 Cabinet (Not for Sale) HLS 820 Screw (4) 61867 #6 x 3/4 OVHDPH Screw (2) 903101-016 #8 x 1" PTH Woofer* 332653-001 Tweeter * TWO10B17/101829B Screw (8) #8 X 3/4"PANHD BLK 61868 Port Tube 70515-02 Logo 332665-002 Woofer* 332653-001 Grille Retainer (10) 333249-001 * See JBL Service Bulletin #JBL9703 for details regarding the removal and installation of drivers. Terminal Cup 70442-01 HLS Plastic Horn COMPONENT EXPLODED VIEW HLS 820 HLS 820 3-99 JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797
