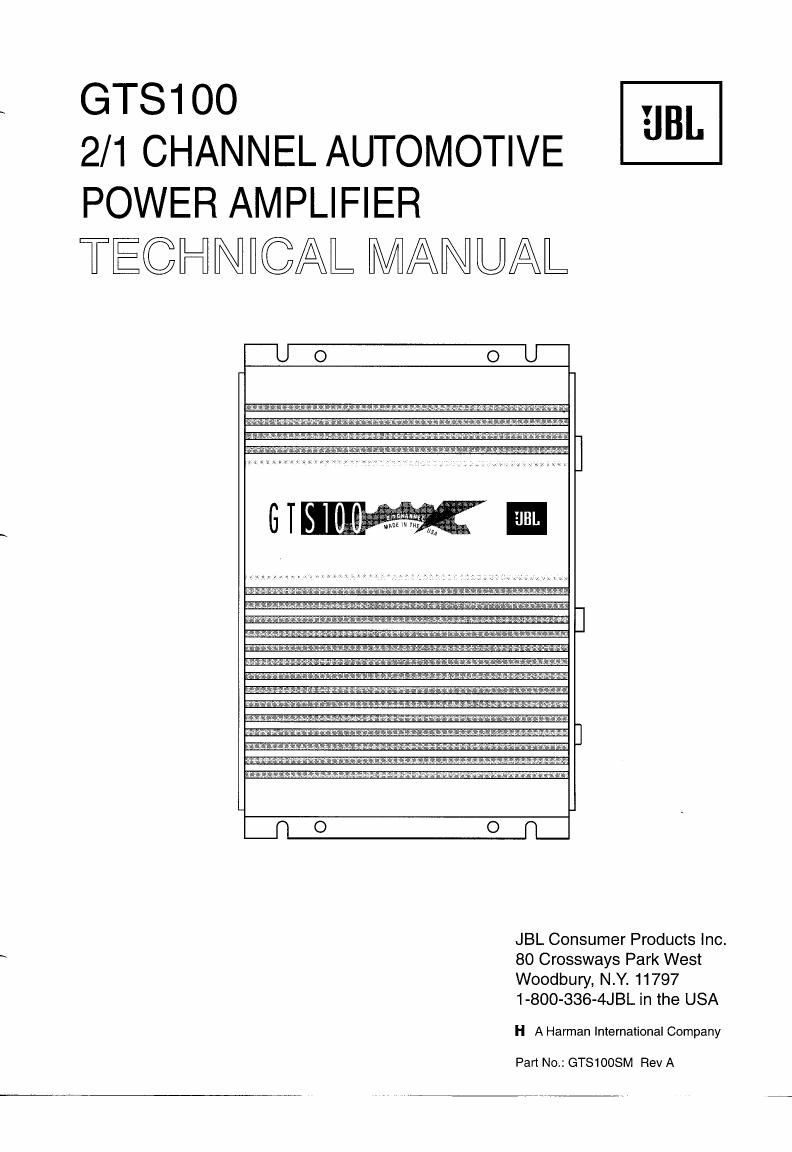

GTS100 UBL 2/1 CHANNEL AUTOMOTIVE POWER AMPLIFIER
Table Of Contents
Specifications. . 1
Feature... . 2
Controls, Connectors and Switches 4
Typical System Configuration (Speaker Level Input and Output Color Codes) ................................................. 3
Mechanical Exploded View... . 4
Mechanical Parts List.. . 4
Main Circuit Board (Top Component Side) . 5
Main Circuit Board (Bottom Side) .............................................................................................................................. 6
Electrical Parts List .................................. . 7
Integrated Circuit Layout and Voltages. . 10
Packaging Parts List and Exploded View .. 11
Block Diagram ............................................................................................................................................................. 12
Schematic Wiring Diagrams ...................................................................................................................................... 13
GTS100 Nominal Specifications
Continuous Power Output
(20Hz - 50kHz,
14.4V Battery Voltage,
80 kHz filter)
Signal to Noise Ratio
Frequency Response
Damping Factor
Line Level Input Sensitivity
(for rated power)
Line Level Input Impedance
Speaker Level Input Impedance
Speaker Level Input Sensitivity
Preamp Output Sensitivity
Minimum Speaker Impedance
Single Ended, Non-Bridged
Bridged
Built-In Electronic Crossover
Frequency and Slope
Power Requirement
Fuse Size
Size (L x W x H)
Weight
Speaker Input / Output Mating
Connector
Power Mating Connector
35 watts x 2
(4 Ohms, 0.05% THU
50 watts x 2
(2 Ohms, 0.08% THD)
100 Watts x 1
(4 Ohms, 0.08% THD)
1 00d BA
1OHz - 50kHz (+0 - 1:13)
20Hz - 20kHz (+0 - 0,1dB)
>200
100mV - 4V RMS (500mV nominal)
10k Ohms
15 Ohms
200mV - 8V RMS (1V nominal)
2V Out for 4V Speaker Level Input
2 Ohms
4 Ohms
80Hz, 18dB per octave Low Pass Filter
100Hz, 18dB per octave High Pass Filter
11 to 16V DC Negative Ground
20 Amp ATC Type Fuse
6-5/8" x 9-1/4" x 2"
(168.3mm x 2350mm x 50.8mm)
4le. 302. (1 .90kg)
Molex Mini-Fit Jr. # 39-01-2040
Metal Pins: 39-00-0038
Plastic Housing: AMP #1-480700-0
Metal Pins for Ground & +12V:AMP # 350923-3
Metal Pins for Rem. In: AMP # 350536-1
