Jbl EON 15 G2 Owners Manual

This is the 4 pages manual for Jbl EON 15 G2 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4
Jbl EON 15 G2 Owners Manual

Extracted text from Jbl EON 15 G2 Owners Manual (Ocr-read)


Page 1

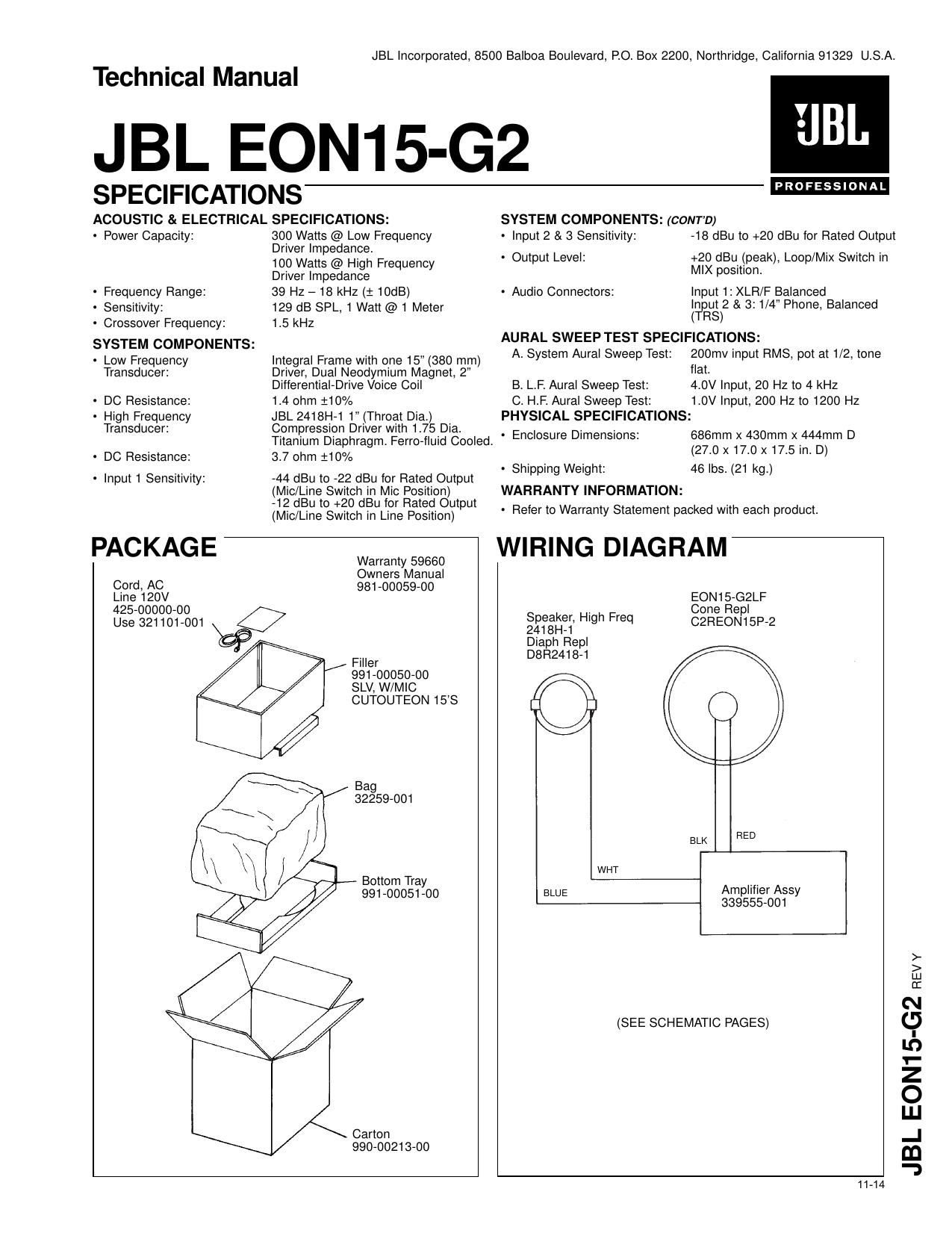

Clip, Christmas Tree 321814-001 LED Assembly (Supplied with AMP) WIRE CONNECTION LAYOUT Pictorial for Refference Only L.F. (Woofer/Baffle) BLACK WHITE BLUE REDF .187 - F .250 + H.F. (2418H-1) F .205 - F .250 + Amplifier PCA Transformer AC Power Input, PCA Signal Input, PCAHarness Assy (Supplied with Signal Input) Tree Mount Tie 925-00003-00 Ground Wires Connect to Aluminum Baffle Screw (2) 905002-006 10-32 x 3/8 PN PH JBL EON15-G2 JBL EON15-G2 Knob 34-0043
