Page 1

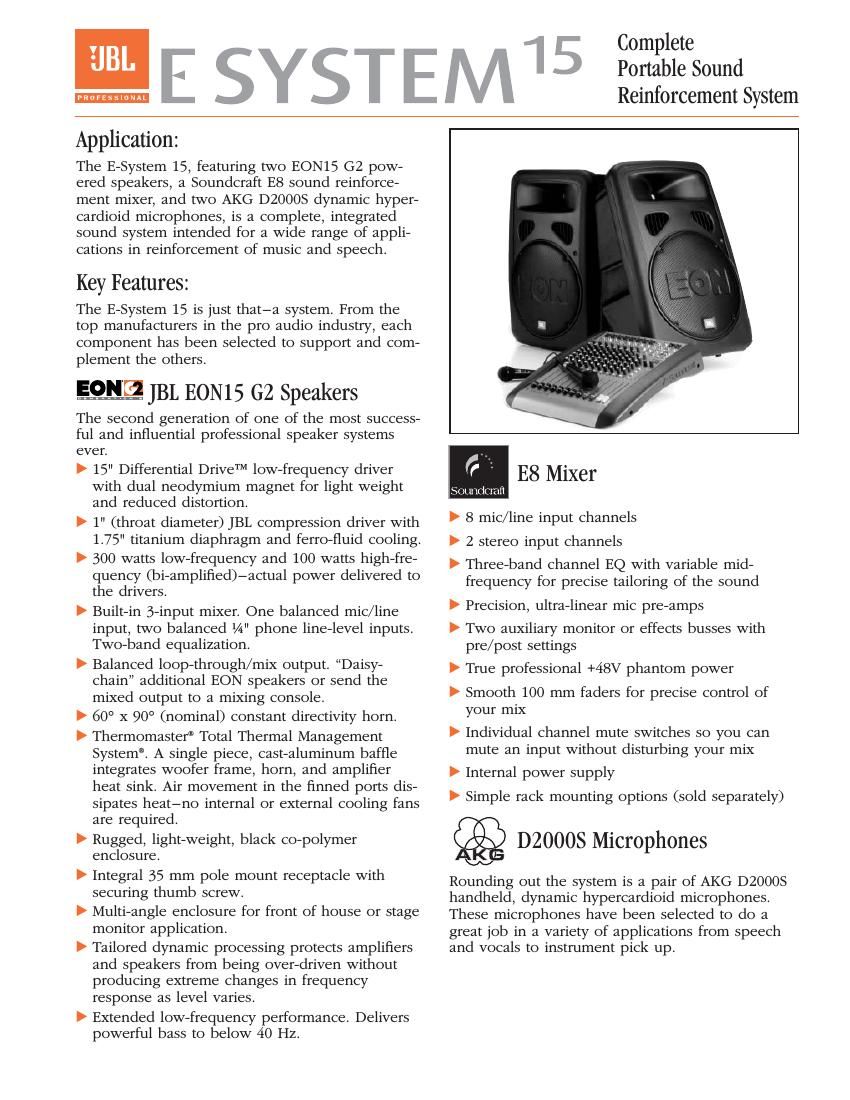

E-System 15 Complete Sound Reinforcement System A complete sound reinforcement system so good that no one company could build it all. Start wih the second generation of the speaker that started the powered-speaker revolution – the JBL EON15 G2. Then add a Soundcraft E8 mixer with that great British sound and wide range of features. To com- plete the system, a pair of dynamic, hypercardioid microphones from AKG – the D2000S. Rounding out the system are four 25 ft XLR cables to hook it all together. JBL EON15 G2 Freq. Range (-10 dB)39 Hz - 18 kHz Freq. Response (±3 dB)42 Hz - 17 kHz Horz. Coverage (-6 dB)90° Nominal Vert.Coverage (-6 dB)60° Nominal Rated Maximum SPL129 dB, @ 1 m (3.3 ft) Dimensions (H x W x D)686 mm x 430 mm x 444 mm (27 in x 17 in x 17.5 in) Net Weight21 kg (46 lb) LF DriverIntegral frame with one 15" (380 mm) driver, neodymium magnet, 2" Differential Drive voice coil. HF DriverJBL 2418H-1 1" (throat diame- ter) compression driver with 1.75" diameter titanium diaphragm. Ferro-fluid cooled. Amplifier Power LF300 watts @ low-frequency driver impedance. Amplifier Power HF100 watts @ high-frequency driver impedance. Input 1 Sensitivity-44 dBu to -22 dBu for rated output (Mic/Line switch in MIC position) -12 dBu to +20 dBu for rated output (Mic/Line switch in LINE position) Input 2 & 3 Sensitivity-18 dBu to +20 dBu for rated output Output Level+20 dBu (peak), Loop/Mix switch in MIX position Output Level+26 dBu (peak), Loop/Mix switch in MIX positionAudio Connectors Input 1 XLR/F, balanced Input 2 & 3¼"Phone, balanced (TRS) Loop/Mix Out XLR/M, balanced EQHigh Frequency Shelving, ±15 dB @ 5 Hz Low Frequency Shelving, ±15 dB @ 120 Hz Active Crossover Freq.1.5 kHz LimitingLow frequency amplifier con- trolled by dymanic filter to prevent amplifier overload under extreme conditions. AC Input110 – 230 VAC, 50 – 60 Hz., 175 watts rating per UL, detachable IEC power cabl e. EON15 G2 Block Diagram MICMIC SIGNALSIGNAL INPUT2INPUT2 INPUT3INPUT3 INPUT1INPUT1 OUTOUT LOOP MIXPEAK PEAK INPUT2INPUT2 INPUT3INPUT3 LOLOW HIGHW HIGH EQEQ HPFHPF INPUT1INPUT1 300W300W 100W100W LPF & DYNAMIC FILTER SUMSUM LINE MIC
Page 2
Soundcraft E8 Mixer Input Channels8 Mic/Line, mono 2 Line, stereo Aux. Sends2, globally selectable, pre/post Noise (22 Hz-22 kHz measurement bandwidth) Mic EIN @ max gain, 150Ω source impedance -128 dBu Mix @ max, faders down <-85 dBu Crosstalk (typ. @ 1 kHz) Channel mute >96 dB Fader cut-off (rel +10 mark) >96 dB Aux send pot offness >86 dB Frequency Response Mic/Line input to any output +/- 0.5 dB 20 Hz - 20 kHz THD+ Noise Mic gain 30 dB, -30 dBu input Mix out, fader max @ 1 kHz <0.007% Input & Output Impedance Mic Input 2.4kΩ Line Input 11kΩ Stereo Input 100kΩ Outputs 75Ω Input & Output Levels Mic Input (max. level) +17 dBu Line Input (max. level) >30 dBu Stereo Input (max. level) >30 dBu Mix Input (max. level) >20 dBu Headphones (@200Ω)300mW Size Weight 6.75 kg (14.88 lb) Dimensions (HxWxD) 87.58 mm x 426.4 mm x 400.10 mm (3.45 in x 16.79 in x 16.33 in) Rack MountingRequires Soundcraft Part#P-S20001D-01 AKG D2000S Microphone TypeDynamic microphone Frequency Range70 - 20,000 Hz Polar PatternHypercardioid Sensitivity @ 1000 Hz 2.0 mV/Pa (-54 dBV re 1V/Pa) Equivalent noise level20 dB(A) to DIN 45412 Maximum SPL for 1% (3%) THD140 dB SPL (150 dB SPL) Electrical impedance<500 ohms Recommended load impedance>1200 ohms Connector3-pin male XLR Finish Matte black enamel Size Length : 181 mm (7.13 in) Ø: 50 mm (1.97 in) Weight 8.1 oz (0.9 lb) System Contents Item Qty JBL EON15 G2 Speakers 2 Soundcraft E8 Mixer 1 AKG D2000S Microphones 2 25 ft. (7.6m) XLR/M to XLR/F Cables 4 JBL EON15 G2 User Guide 1 Soundcraft E8 User Guide 1
