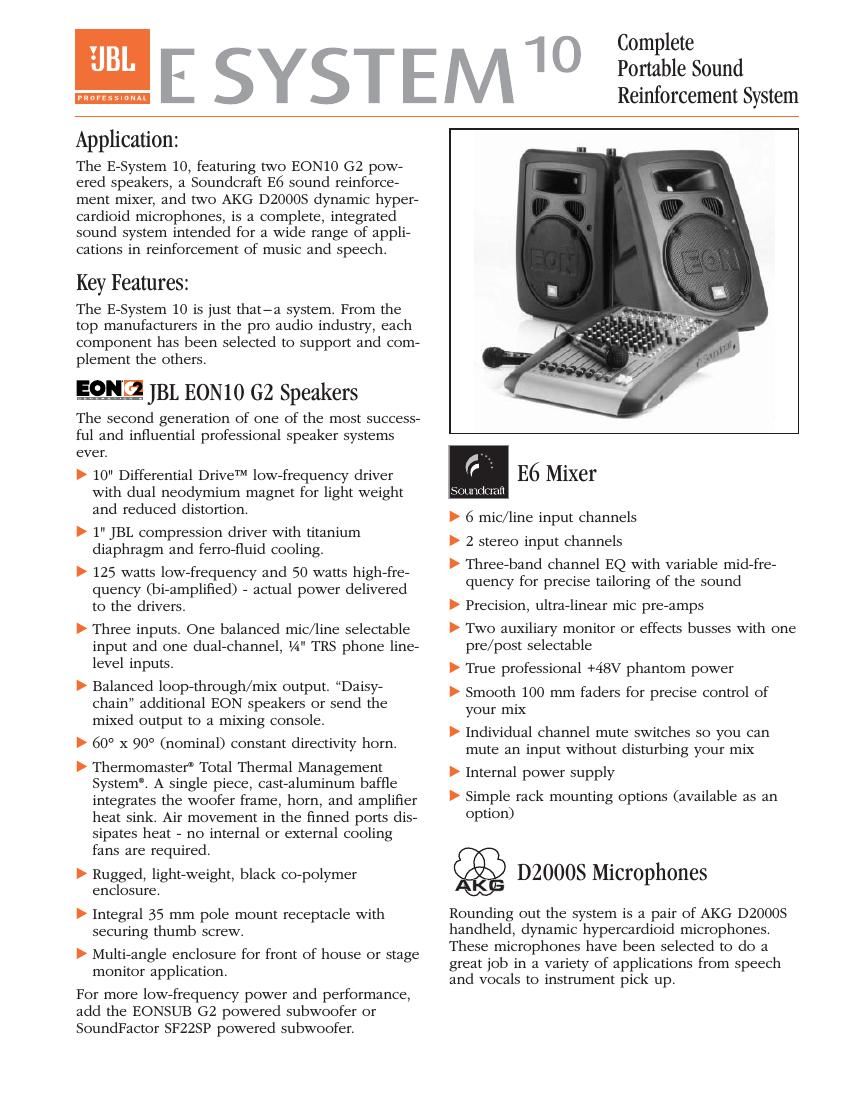

Page 1
E-System 10 Complete Sound Reinforcement System A complete sound reinforcement system so good that no one company could build it all. Start wih the second generation of the speaker that started the powered-speaker revolution - the JBL EON10 G2. Then add a Soundcraft E6 mixer with that great British sound and wide range of features. To com- plete the system, a pair of dynamic, hypercardioid microphones from AKG - the D2000S. Rounding out the system are four 25 ft XLR cables to hook it all together. JBL EON10 G2 Freq. Range (-10 dB)65 Hz - 18 kHz Freq. Response (±3 dB)90 Hz - 16 kHz Horz. Coverage (-6 dB)90° Nominal Vert.Coverage (-6 dB)60° Nominal Rated Maximum SPL117 dB, @ 1 m (3.3 ft) Dimensions (H x W x D)493 mm x 356 mm x 307 mm (19.4 in x 14.0 in x 12.1 in) Net Weight10.4 kg (23 lb) LF DriverIntegral frame with one 10" (254 mm) driver, neodymi- um magnet, 1.5" Differential Drive voice coil. HF DriverJBL 2412 1" (throat diame- ter) compression driver with titanium diaphragm. Ferro-fluid cooled. Amplifier Power LF125 watts @ low-frequency driver impedance. Amplifier Power HF50 watts @ high-frequency driver impedance. Input 1 Sensitivity-48 dBu to 0 dBu for rated output (Mic/Line switch in MIC position) -6 dBu to +20 dBu for rated output (Mic/Line switch in LINE position)Input 2 & 3 Sensitivity-12 dBu to +20 dBu for rated output Output Level+26 dBu (peak), Loop/Mix switch in MIX position Audio Connectors Input 1 XLR/F, balanced Input 2 & 3¼"Phone, dual-channel (TRS) Loop/Mix Out XLR/M, balanced Active Crossover Freq.2.7 kHz AC Input110 – 230 VAC, 50 – 60 Hz., 175 watts rating per UL, detachable IEC power cable. EON10 G2 Block Diagram
Page 2
Soundcraft E6 Mixer Input Channels6 Mic/Line, mono 2 Line, stereo Aux. Sends2, globally selectable, pre/post Noise (22 Hz-22 kHz measurement bandwidth) Mic EIN @ max gain, 150Ω source impedance -128 dBu Mix @ max, faders down <-85 dBu Crosstalk (typ. @ 1 kHz) Channel mute >96 dB Fader cut-off (rel +10 mark) >96 dB Aux send pot offness >86 dB Frequency Response Mic/Line input to any output +/- 0.5 dB 20 Hz - 20 kHz THD+ Noise Mic gain 30 dB, -30 dBu input Mix out, fader max @ 1 kHz <0.007% Input & Output Impedance Mic Input 2.4kΩ Line Input 11kΩ Stereo Input 100kΩ Outputs 75Ω Input & Output Levels Mic Input (max. level) +17 dBu Line Input (max. level) >30 dBu Stereo Input (max. level) >30 dBu Mix Input (max. level) >20 dBu Headphones (@200Ω)300mW Size Weight 5.75 kg (12.68 lb) Dimensions (HxWxD) 87.58 mm x 375.60 mm x 400.10 mm (3.45 in x 14.79 in x 16.33 in) Rack MountingRequires Soundcraft Part#P-520000D-01 AKG D2000S Microphone TypeDynamic microphone Frequency Range70 - 20,000 Hz Polar PatternHypercardioid Sensitivity @ 1000 Hz 2.0 mV/Pa (-54 dBV re 1V/Pa) Equivalent noise level20 dB(A) to DIN 45412 Maximum SPL for 1% (3%) THD140 dB SPL (150 dB SPL) Electrical impedance<500 ohms Recommended load impedance>1200 ohms Connector3-pin male XLR Finish Matte black enamel Size Length : 181 mm (7.13 in) Ø: 50 mm (1.97 in) Weight 8.1 oz (0.9 lb) System Contents Item Qty JBL EON10 G2 Speakers 2 Soundcraft E6 Mixer 1 AKG D2000S Microphones 2 25 ft. (7.6m) XLR/M to XLR/F Cables 4 JBL EON10 G2 User Guide 1 Soundcraft E6 User Guide 1
