Jbl e 230 p service manual

This is the 18 pages manual for jbl e 230 p service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 18
jbl e 230 p service manual

Extracted text from jbl e 230 p service manual (Ocr-read)

Page 1

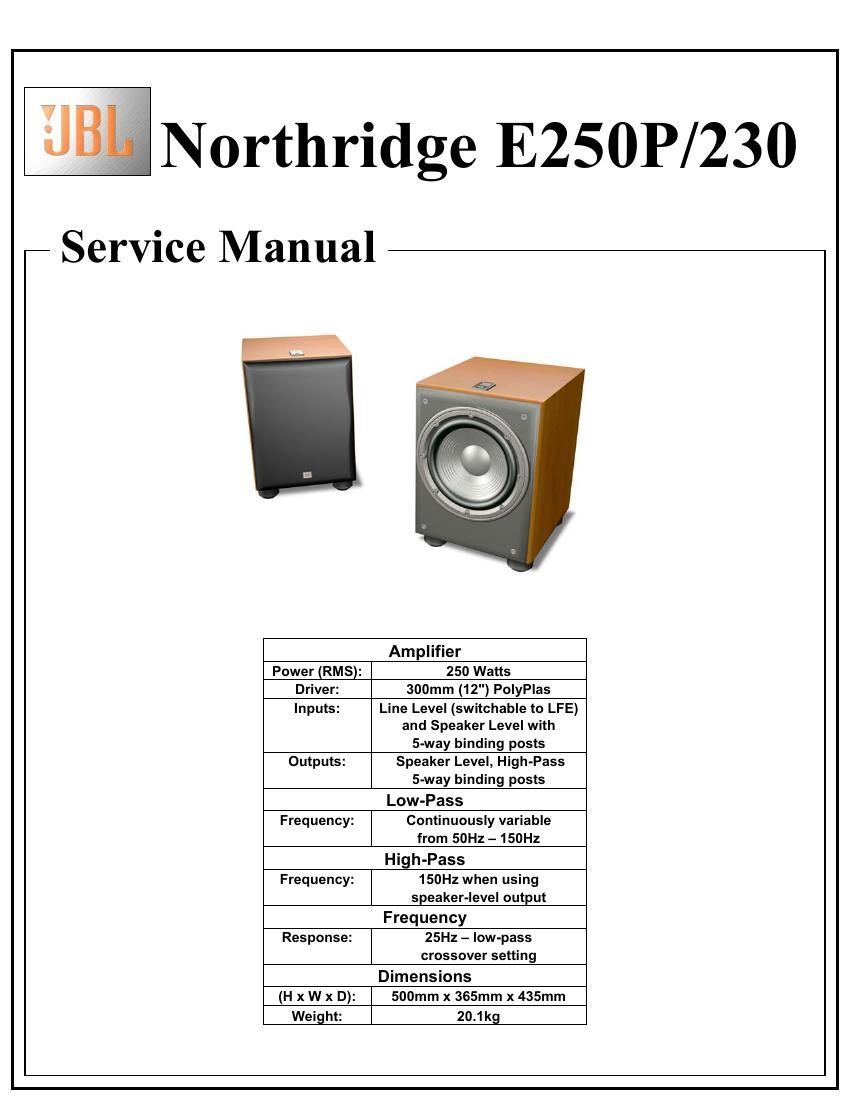

'JB Northridge E250P/230

- Service Manual

Amplifier
Power (RMS): 250 Watts
Driver: 300mm (12") PolyPlas
Inputs: Line Level (switchable to LFE)
and Speaker Level with
5-way binding posts
Outputs: Speaker Level, High-Pass
5-way binding posts
Low-Pass
Frequency: Continuously variable
from 50Hz -150Hz
High-Pass
Frequency: 150Hz when using
speaker-level output
Frequency
Response: 25Hz - low-pass
crossover setting
Dimensions
(H x W x D): 500mm x 365mm x 435mm
Weight: 20.1kg
