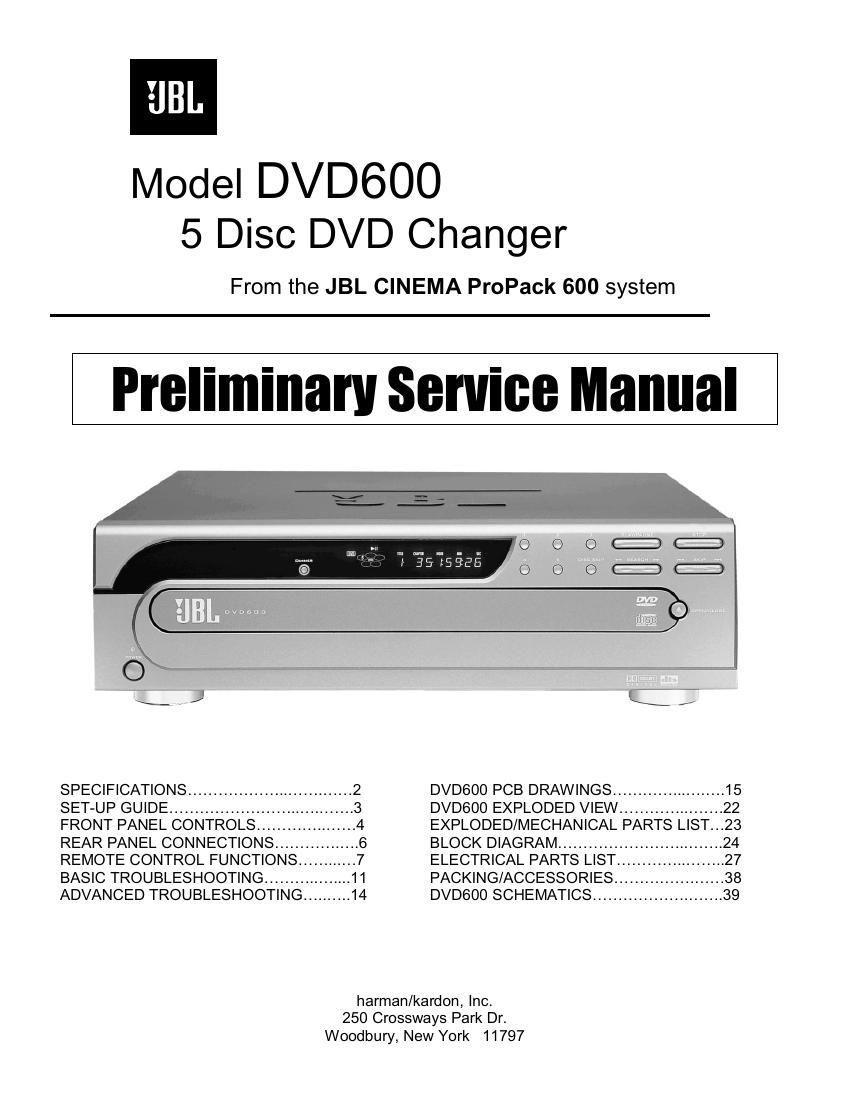

Jbl dvd 600 service manual
This is the 57 pages manual for jbl dvd 600 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from jbl dvd 600 service manual (Ocr-read)
Page 1
2 TECHNICAL SPECIFICATIONS DVD600 Playback Media:5-inch (12cm) or 3-inch (8cm) DVD-Video: Region 1, single or dual sides/layers, linear PCM, Dolby Digital, or DTS CD, CD-RW: Linear PCM Audio Video CD (VCD): MPEG-1 Video, Linear PCM Audio Video Section: Signal format: NTSC Composite Output: 1V p-p/75 ohms, sync, negative polarity S Output: Y/Luminance: 1V p-p/75 ohms, sync, negative polarity C/Chrominance: 0.286V p-p Component Outputs: Y: 1V p-p/75 ohms, sync, negative polarity Pr: 0.648V p-p/75 ohms Pb: 0.648V p-p/75 ohms Audio Section: Coaxial Digital Output: 0.5V p-p/75 ohms Frequency Response: 2Hz to 22kHz, +/Ð 0.5dB (44.1kHz sampling rate) Dynamic Range: DVD: 105dB (20-bit) CD: 100dB Channel Separation: 90dB THD: 0.0035% Signal-to-Noise Ratio: 100 dB Wow and Flutter: below measurable limits General: Unit Power Consumption: 25W Unit Dimensions: Width: 17.3 inches (440mm) Height: 5.1 inches (130mm) Depth: 16.9 inches (420mm) Unit Weight: 14.4 lb (7.6kg) Depth measurement includes knobs and buttons. Height measurement includes feet and chassis. All features and specifications are subject to change without notice. This product incorporates copyright protection technology that is protec\ ted by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and \ other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended\ for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineer\ ing or disassembly is prohibited.
Page 2
3 Quick Setup Guide to Using the DVD600 (with the DCR600) The DVD600 can play discs in the following formats: ¥ Both 5-inch (12cm) and 3-inch (8cm) discs ¥ CD audio discs ¥ DTS audio discs ¥ CD-RW audio discs ¥ DVD movie discs ¥ VCD video compact discs However, it cannot play: ¥ DVD discs with a Region Code other than "1" or "All" ¥ DVD discs using PAL format video ¥ DVD-ROM data discs ¥ DVD-RAM discs ¥ CD-R discs ¥ CD-I discs ¥ CD-G discs ¥ SVCD discs ¥ Photo CD discs ¥ MP3 audio discs Press the DVD600Õs Power Switch so that it latches and the Status Indicator turns amber, indicating that the unit is in the Standby mode. Turn the unit on by pressing either the Power On Button bon the remote or the Open/Close Button or Play Button on the front panel. The Status Indicator will turn green. Open the DVD600Õs drawer, and insert up to 5 discs in the tray locations, using the Disc Skip Button to rotate the carousel to access all locations. Make sure each disc is loaded with the label side up, and that it is seated correctly in its location. When you close the drawer, the DVD600 will automatically start playing the first disc it rec- ognizes, whether it is a CD or DVD disc. However, whichever type of disc is playing, make sure that you have selected DVD as the input source on the DCR600 by pressing don the remote, or !on the front panel of the receiver until DVD is indicated. For most discs, the DVD600 and DCR600 will automatically select the correct surround mode. To make sure that audio in the DTS audio format is correctly processed, you must choose that for- mat as the default in the DVD600Õs setup menu. Simply stop play of the disc, and enter the setup menu by pressing zon the remote. Use the Ú/ÛButtons y to scroll down to Digital Audio Output. Press the Set Button to select this option, and a screen will pop up, allowing you to choose from PCM, Dolby Digital or DTS outputs. Use the Ú/Û Buttons y to highlight DTS, then press the Set Button to select this choice. You do not need to reset the audio output for other formats. The DCR600 and DVD600 will automat- ically process PCM, Dolby Digital and DTS sig- nals correctly. Press the Menu Buttonzto exit the menu screen. If you press the Menu Button zwhile the disc is playing, you can access the discÕs menu to choose the DTS for- mat there as well. You may wish to experiment with surround modes other than Dolby Digital and DTS using the DCR600Õs functions. Press the Surround Mode Selector t7to scroll through such choices as Dolby Pro Logic, Dolby 3 Stereo, 5-Channel Stereo, Hall, Theater, VMAx, Logic 7 or Surround Off (Stereo). See page 52 for descriptions of these modes. Press the Stop Button once to enter Resume mode, in which play will resume from the point where it was stopped. Pressing the Stop Button twice will cause play to resume from the beginning of the disc, or the discÕs main menu. You may wish to listen to the tracks of a CD, or view the chapters of a DVD, in a different order than they appear on the disc. The Random function will play all of the tracks on one CD, or all of the chapters on one DVD, in a random order selected by the DVD600. The DVD600 does not randomly play selections from all five discs inserted in its tray, since this might result in the odd experience of alternating among audio tracks and disjointed video selections. Simply press the Random Button once to start random play, and press it again to return to standard play, using the discÕs main menu. The DVD600 offers several variations of Repeat Play: Repeat All discs in the unit once; Repeat 1 Disc until play is manually stopped; Repeat Title on a DVD disc until play is manually stopped; Repeat Track/Chapter on either a CD or DVD disc until play is manually stopped; and Repeat AÐB, which repeats a programmed selection until play is manually stopped. Press the Repeat Button to scroll through the repeat choices. Repeat play can be stopped by pressing the Repeat Button until Repeat Off is selected, or by pressing the Stop Button twice. Program the Repeat AÐB function while a disc is playing. Press the Repeat AÐB Button at the start of the passage to be repeated, and press it again at the end of the passage. The passage will continue to play until the Stop Button is pressed. You can also program play lists of selected tracks or chapters. 1. Select the DVD600 by pressing the DVD Button d, and press the Program Button to bring up the Program Edit Screen. 2. Use the Ú/Ûy keys to select a disc number, and press either Setor Ý to enter the selection and move to the next option. 3. Use the Ú/Ûy keys to select a track (for a CD) or title (for a DVD), and press either Set or Ý to enter the selection and move to the next option. If Ò99Ó appears, it means the DVD600 has not read the disc yet to determine whether it is a CD or DVD. 4. For DVDs only, use the same procedure to enter a chapter. 5. The next choice is to add the selection to the play list by pressing the Set Button. 6. Repeat Steps 2Ð5 to enter up to 25 selections into the play list. 7. Play the list by using the arrow keys to high- light the Play selection, and the Set Button to begin play. Press the Stop Button twice to stop playback of the list. To cancel the list, press the Clear Button. 8. To delete a selection, highlight the item to be deleted, press the Set Button, and then use the Ú/Ûy keys to choose the Delete Button . Press the Set Button again to delete it. Alternatively, highlight the item and press the Clear Button to delete it. 9. Insert an entry by highlighting the item in the play list at the point of insertion, pressing the Set Button , and using the Û key once to select the Insert option. Follow Steps 2 through 5 above to enter the new selection. You may also edit an entry by pressing the Check Button twice to step through the items in a play list. Use the Ü/Ý` keys to choose a disc, track or chapter to be edited, and the Ú/Ûy keys to make a change. This completes the quick setup and operation of your JBL Cinema ProPack 600 system. Additional information is provided in the following sections for those users with additional components, or who wish to make other, more advanced adjustments to their system. 53 47 47 61 46 8D 61 56 8D 61 55 55 50 61 8D 61 8D 4D 51 2D 10 D 6D 2D 1D
