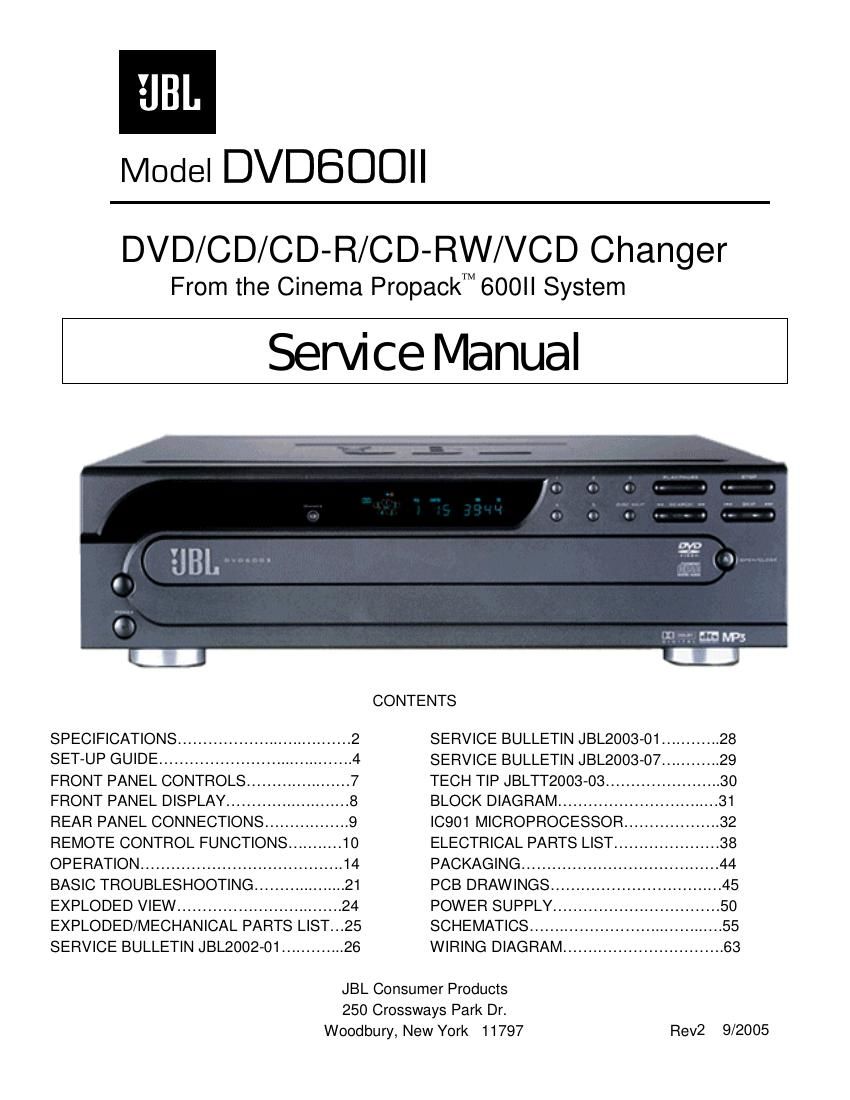

Jbl dvd 600 mk2 service manual
This is the 63 pages manual for jbl dvd 600 mk2 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from jbl dvd 600 mk2 service manual (Ocr-read)
Page 1
2 Playback Media:5-inch (12cm) or 3-inch (8cm) DVD-Video: Region 1, single or dual sides/layers, linear PCM, Dolby Digital or DTS CD, CD-R, CD-RW: Linear PCM Audio MP3 Video CD (VCD): MPEG-1 Video, Linear PCM Audio Video Section: Signal format: NTSC Composite Output: 1V p-p/75 ohms, sync, negative polarity S Output: Y/Luminance: 1V p-p/75 ohms, sync, negative polarity C/Chrominance: 0.286V p-p Component Outputs: Y: 1V p-p/75 ohms, sync, negative polarity Pr: 0.648V p-p/75 ohms Pb: 0.648V p-p/75 ohms Audio Section: Coaxial Digital Output: 0.5V p-p/75 ohms Frequency Response: 2Hz to 22kHz, +/– 0.5dB (44.1kHz sampling rate) Dynamic Range: DVD: 105dB (20-bit) CD: 100dB Channel Separation: 90dB THD: 0.0035% Signal-to-Noise Ratio: 100 dB Wow and Flutter: below measurable limits General: Unit Power Consumption: 25W Unit Dimensions: Width: 17.3 inches (440mm) Height: 5.1 inches (130mm) Depth: 16.9 inches (420mm) Unit Weight: 14.4 lb (7.6kg) Depth measurement includes knobs and buttons. Height measurement includes feet and chassis. All features and specifications are subject to change without notice. Technical Specifications DVD600 II This product incorporates copyright protection technology that is protec\ ted by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and \ other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended\ for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineer\ ing or disassembly is prohibited. DVD600II
Page 2
DATE:SEP 26.2001 1. Audio * Test Disc : YEDS 7(Sony),EIAJ CD- 1 Coaxial(75 Ω) 2. Video(75 Terminated) --->NTSC VIDE O * Test Disc : Navigation Vol 1 FOR SYSTEM(DVD-NF200 ) * VM700T C-Video Output level Y/Cb/Cr Video RCA JACK S/NS- JACK S/N RCA JACK Freq. Resp. S-JACK Freq.Resp Video S/N 100% Flat Video S/N 50% Flat 100% Color Bar WTD : Off, SC TRAP On BPF : 100KHz ~ 5.0MHz 100% Color Bar 1 - 1 - 8 - LPF : 500KHz 1 - 1 - 1 HPF : 10KHz 75% Color Bar Data Frequency Response Nominal Spec Norminal Spec 40 IRE 1.0V ± 0.1(p-p) 1.0V ± 0.1(p-p) Frequency Response C-Video S - Video C-Video S - Video C-Video S - Video C-Video S - Video Cr Output Level 0.286V(p-p) ± 20% 0 ±2.5dB 55dB 60dB 1.0V(p-p) ± 10% Cb Output Level 0.7V(p-p) ± 20% Y Output Level 0.7V(p-p) ± 20% Color Burst Error 55dB Color S/N AM/PM ±150Hz ± 120Hz60dB Color S/N AM/PM RCA Jack Color S/N S- Jack Color S/N Output Level Item (Y)Output Level S - Video (C)Output Level RCA JACK Level Item Test Track Test Conditions Limite Spec 1 Limite Spec Test Conditions Test Trac 0.5 + 0.05V(p-p) 1 - 1 -7 100% Flat 100% Flat 1 - 1 -7 100% Flat Data 100% Red Color 4.2 MHz ±0.5MHz(NTSC) Multiburst 1 - 1 - 61 - 1 -1 1 -1 - 8 - 1 - 1 -1 DVD600II
