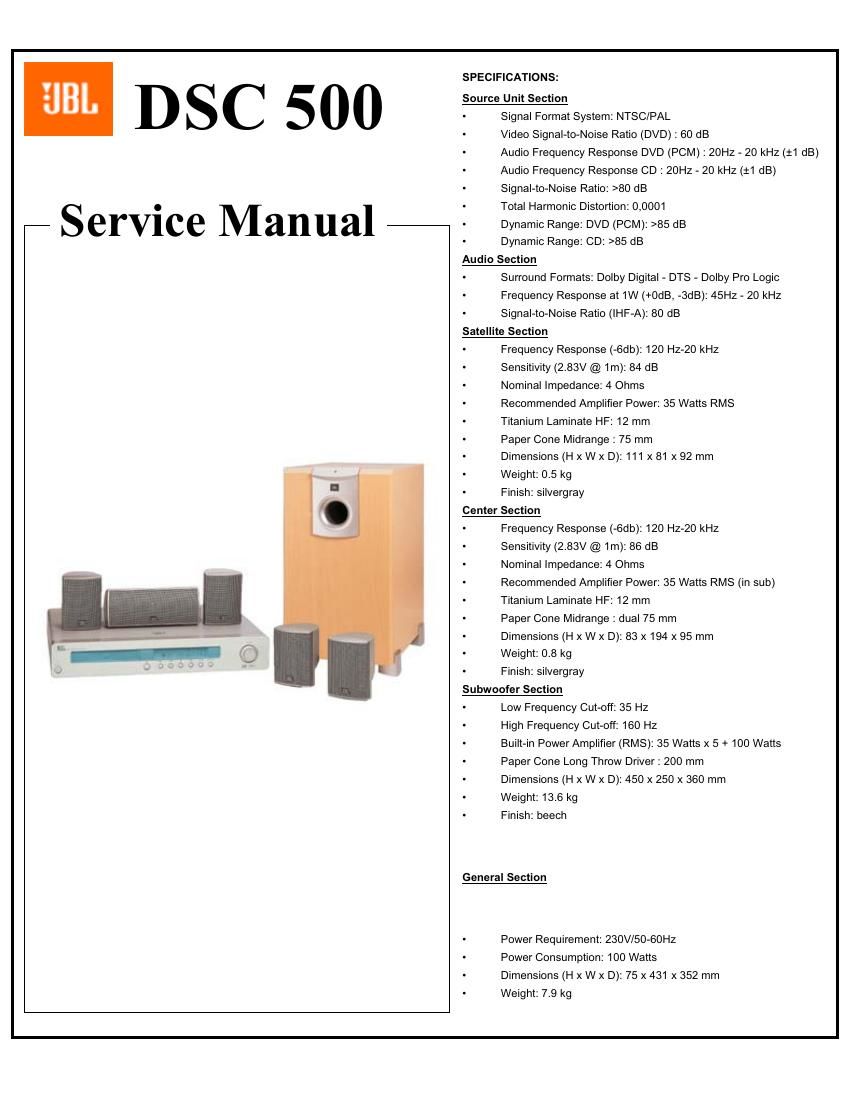

Page 1

DSC 500

- Service Manual -

SPECIFICATIONS:

Source Unit Section

- Signal Format System: NTSC/PAL
Video Signal-to-Noise Ratio (DVD) : 60 dB
- Audio Frequency Response DVD (PCM) : 20Hz - 20 kHz (:1 dB)
- Audio Frequency Response CD : 20Hz » 20 kHz (:1 dB)
- Signal-to-Noise Ratio: >80 dB
- Total Harmonic Distortion: 0,0001
- Dynamic Range: DVD (PCM): >85 dB
- Dynamic Range: CD: >85 dB
Audio Section
- Surround Formats: Dolby Digital - DTS - Dolby Pro Logic
- Frequency Response at 1W (+0dB, -3dB): 45Hz - 20 kHz
- Signal-to-Noise Ratio (lHF-A): 80 dB
Satellite Section
- Frequency Response (-Bdb): 120 Hz-20 kHz
- Sensitivity (2.83V @ 1m): 84 dB
- Nominal Impedance: 4 Ohms
- Recommended Amplifier Power: 35 Watts RMS
- Titanium Laminate HF: 12 mm
- Paper Cone Midrange :75 mm
- Dimensions (H x W x D): 111 x 81x 92 mm
- Weight: 0.5 kg
- Finish: silvergray
Center Section
- Frequency Response (-Bdb): 120 Hz-20 kHz
- Sensitivity (2.83V @ 1m): 86 dB
- Nominal Impedance: 4 Ohms
- Recommended Amplifier Power: 35 Watts RMS (in sub)
- Titanium Laminate HF: 12 mm
- Paper Cone Midrange : dual 75 mm
- Dimensions (H x W x D): 83 x 194 x 95 mm
- Weight: 0.8 kg
- Finish: silvergray
Subwoofer Section
- Low Frequency Cut-off: 35 Hz
- High Frequency Cut-off: 160 Hz
- Built-in Power Amplifier (RMS): 35 Watts x 5 + 100 Watts
- Paper Cone Long Throw Driver : 200 mm
- Dimensions (H x W x D): 450 x 250 x 360 mm
- Weight: 13.6 kg
- Finish: beech

General Section

- Power Requirement: 230V/50-60Hz
- Power Consumption: 100 Watts
- Dimensions (H x W x D): 75 x431 x 352 mm

- Weight: 7.9 kg
