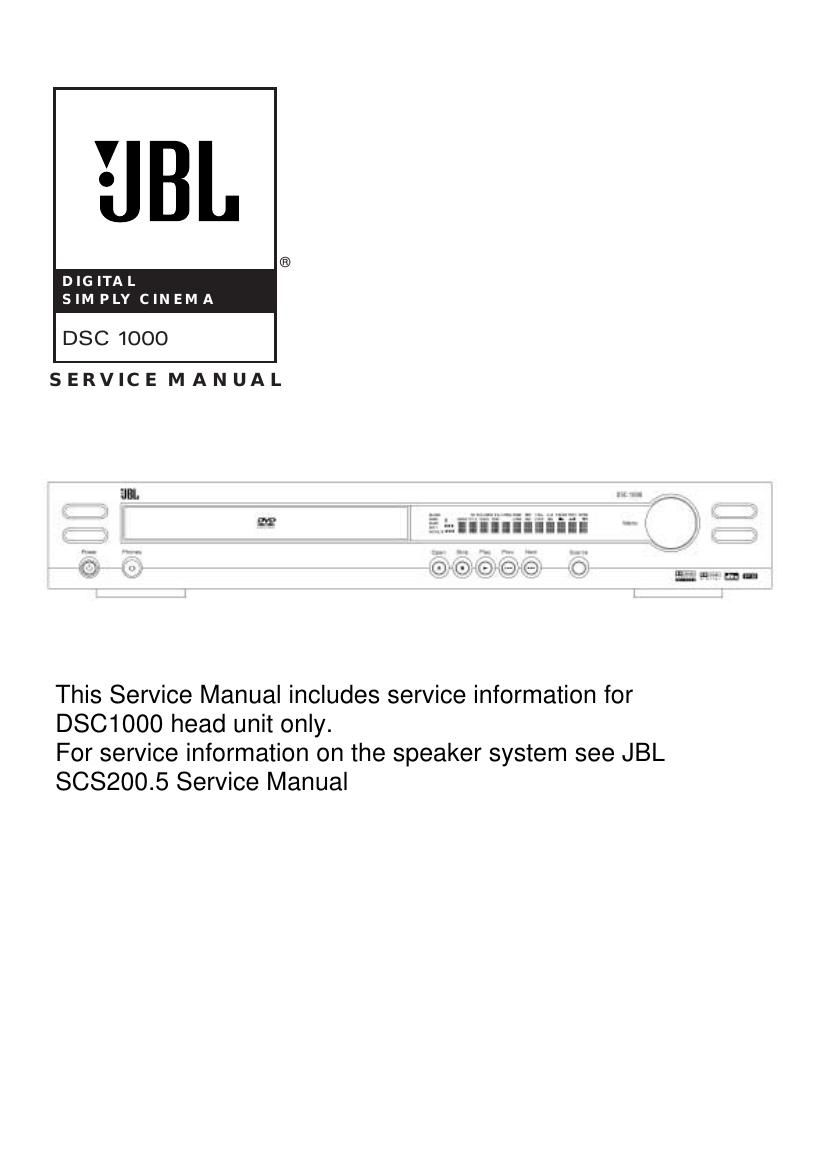

Page 1

{IBL

DIGITAL
SIMPLY CINEMA

DSC 1000

SERVICE MANUAL

an.
* tnilfiifliié

I -i 7: [Vi-I ~31 m a :2-

This Service Manual includes service information for
DSC1000 head unit only.

For service information on the speaker system see JBL
SCS200.5 Service Manual

Page 2

DSC 1000 CONTROLLER
SPECIFICATIONS

DVD player
Pickup: Semiconductor laser, wavelength 650nm
Signal system: NTSC/ PAL
Video signal horizontal resolution: More than 480 lines (DVD)
Video signal-to-noise ratio: More than 60 dB (DVD)
Audio frequency response: DVD IPCMI: 20Hz ~22kHzI+/-1.0dBI
(Stereo) CD (PCMI: 20Hz ~ 20kHzI+/-1.0dBI
Audio signal-to-noise ratio: More than 80 dB (PCM)
Total harmonic distortion: Less than 0.01% (PCM)
Dynamic range: DVD IPCMI: More than 85 dB IEIAJ, 2kHzI

CD: More than 85 dB IEIAJ)
FM Tuner

System:

PLL quartz-locked digital synthesizer system

Tuning range:

87.50 ~ 108.00 MHZ

Antenna terminals:

75 ohms, unbalanced

Intermediate frequency:

10.7 MHZ

Video Outputs
Component Video Output:

Y: 1 Vp-p/75 Ohms, sync negative polarity
Cr: 0.7 Vp»p/75 Ohms
Cb: 0.7 Vp-p/75 Ohms

CVBS Video:

1Vp-p 75 ohms

S-video:

Y: 1 Vp-p 75 ohms
C: PAL 0.3 Vp-p 75 ohms/ NTSC 0.286 Vp-p 75 ohms

Audio line Outputs
Audio L/R:

1Vrms,1 kilohms

General
Power requirements:

AC 230 V, 50 Hz

Power consumption: 20 W
Dimensions (WxHxDI: 431 x 75 x 352 mm, 17" x 3 x 14"
Weight: 8.5 kg, 18.7 lb.

* Designs and specifications are subject to change without notice.

JBL continually strives to improve its products by introducing design refinements into existing models without notice. For
this reason, the DSC 1000 systems may differ in some respects from the published specifications and descriptions, but will
always equal or exceed the original specifications unless othenNise stated.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS
PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE.
SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD
DEFINITION' OUTPUT. IFTHERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p

AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

IN CASE OF 525 OR 625 PROGRESSIVE
