Jbl control 29 av owners manual
This is the 4 pages manual for jbl control 29 av owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from jbl control 29 av owners manual (Ocr-read)

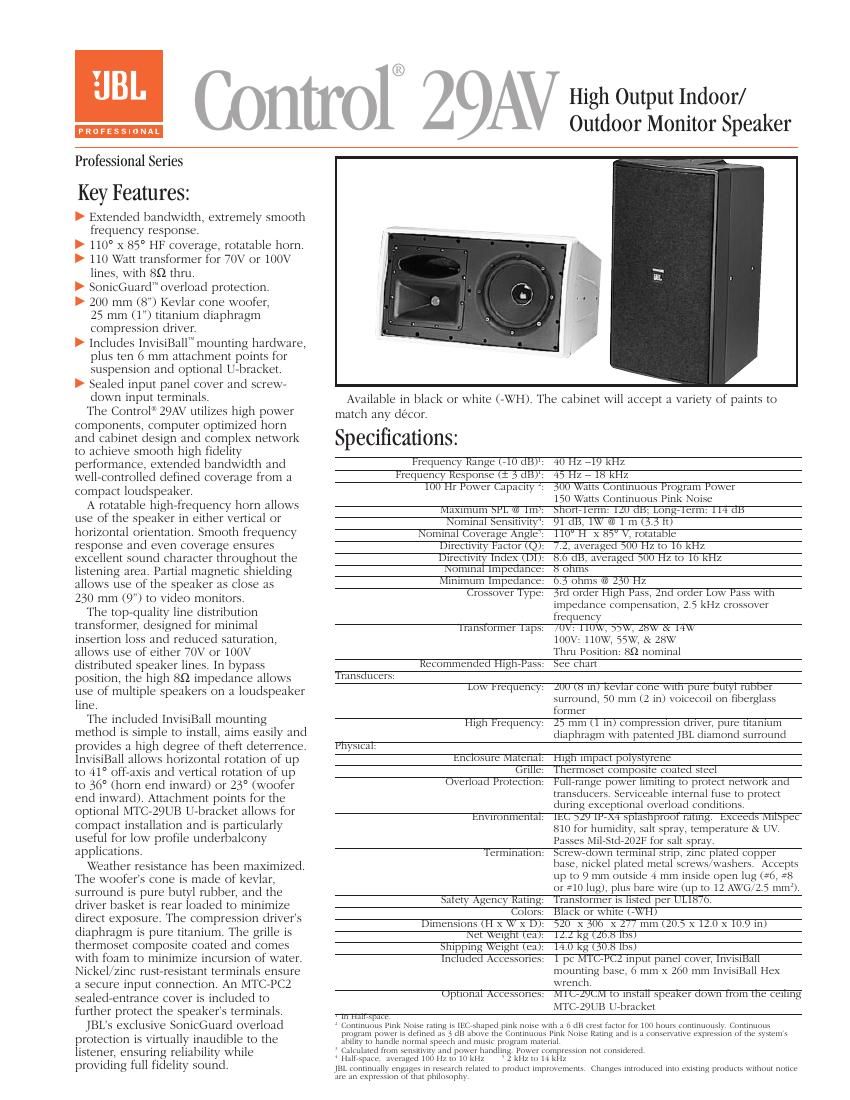

Page 1
10 100 360 20 100 1000 10000 20000-6 dB Beamwidth (degrees) Frequenc y (Hz) Horizontal Vertical Horizontal Off Frequency Vertical Off Axis Frequency Response (down) Vertical Off Axis Frequency Response (up) Frequency Response, on axis in half space (2p, dotted line) and full space (4p, solid line) at thru (8W) setting, Input Impedance. Directivity Index, Q Beamwidth vs. Frequency 1.8 [46] 2.7 [68] 3.3 [84] 3.1 [79] 5.1 [130] 12¡2.75 [70] 2.00 [51] 3.5 [89] 2.75 [70] ø0.27 [ø7] C/ L 10.9 [277] 15.2 [385] 12.0 [306 ] C/ L 2.7 [68]5.0 [127]3.2 [82] 7.7 [195] 20.5 [520] Dimensions in inches [mm] 4.3 [108] c Control ¨ 29AV High Output Indoor/Outdoor Monitor Speaker
Page 2
Horizontal 1/3 Octave Polars Architectural Specifications: The loudspeaker shall consist of a 200 mm (8 in) low frequency transducer, 25 mm (1 in) compression driver, and frequency dividing network. The low frequency driverÕs voice coil shall be 50 mm (2 in) in diameter. Performance specifications of a typical unit shall be as follows: Usable frequency response shall extend from 40 Hz to 18 kHz (10 dB below rated sensitivity, half-space, no external equalization). Rated power shall be at least 300 watts continuous program power for 100 continuous hours duration (defined as 3 dB above a test signal of filtered random pink noise conforming to IEC268-5). Measured sensitivity shall be at least 91 dB-SPL (at 1 m [3.3 ft] with 2.83 V input, ave. 100 Hz to 10 kHz). The input shall be switchable for use either at nominal 8 ohms, or on a 70.7V or 100V distributed speaker line via built-in transformer. Selectable taps shall nominally be 110W, 55W, or 28W on either a 70.7V or 100V distributed speaker line, plus 14W on 70.7V line only. The system shall be protected against damage from occasional overpowering via full range limiting, which shall be inaudible during activation. The compression driver shall be horn-loaded to cover 110 degrees by 85 degrees with a high degree of accuracy and the horn shall be rotatable to achieve these coverages either in the horizontal or vertical planes, regardless of cabinet orientation. The cabinet and grille shall be paintable. The grille shall be secured via screws to keep it in place when facing downward. The low frequency transducer shall have woven kevlar cone and butyl rubber surround, with the frame protected from direct weather exposure. The compression driver shall be constructed with a titanium diaphragm for weather resistance. The system shall withstand Mil Spec 810 testing with specified durations with no effect on its acoustical performance or structural integrity: salt spray (method 509.3), tempera- ture (method 501.3 and 502.3), humidity (method 507.3) and ultraviolet (method 505.3). Further, it shall pass Mil-Std-202F (method 101D) for salt spray. The system shall have an IEC 529 splashproof rating of IP-X4. For theft-deterrence, the installation access area shall be hidden behind a snap-out cover on the front grille. The included ball mecha- nism shall be internal to the cabinet. The cabinet shall have ten (10) 6 mm mounting points, including 2 on each side and 3 on top and bottom and an accessory U-bracket shall be available. The grille logo shall be rotatable for proper orientation with loudspeaker mounted horizontally or vertically. The external wiring connectors shall be screw-down terminals. Overall cabinet dimensions shall be no greater than 520 mm high x 306 mm wide x 277 mm deep (20.5 x 12.0 x 10.9 in) and shall weigh no more than 12.2 kg (26.8 lb). The finish shall be lightly textured black or white. The system shall be the JBL Model Control 29AV (or Control 29AV- WH) with included InvisiBall ¨ (mounting system).
