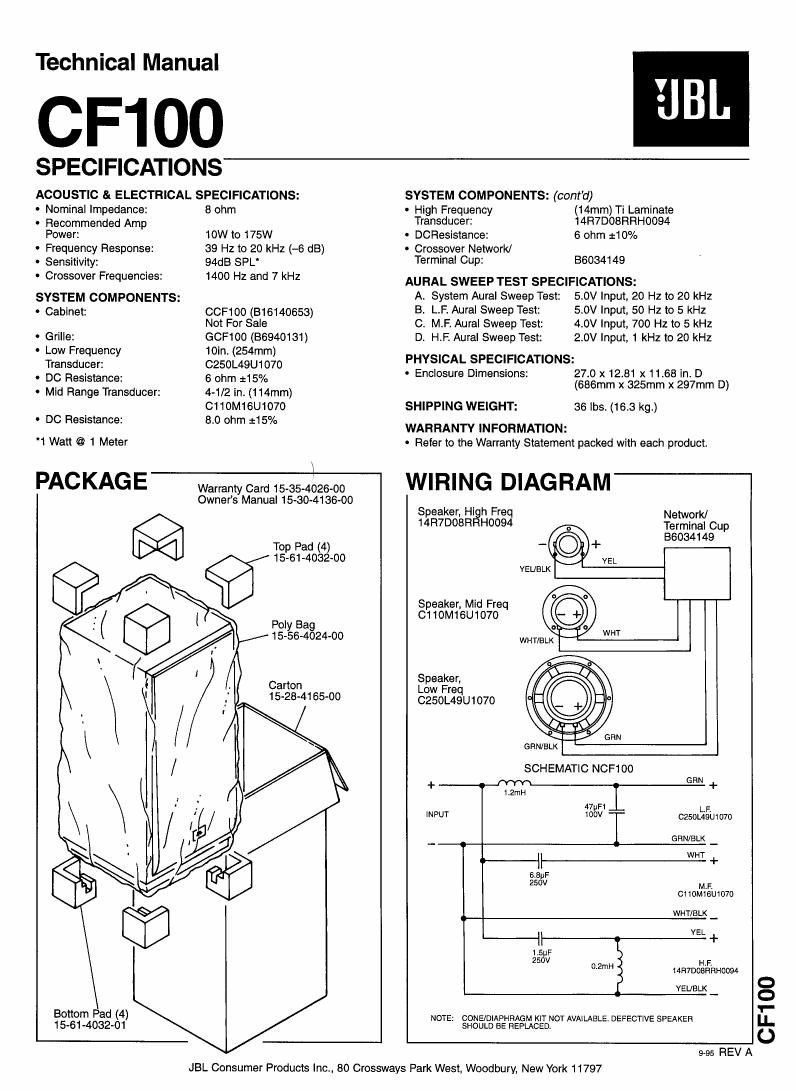

Technical Manual

CF1OO

{JBL

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

' Nominal Impedance: 8 ohm
- Recommended Amp
Power: 10W to 175W
- Frequency Response: 39 Hz to 20 kHz (-6 dB)
0 Sensitivity: 9MB SPL
- Crossover Frequencies: 1400 Hz and 7 kHz
SYSTEM COMPONENTS:
' Cabinet: CCF100 (516140653)
Not For Sale
~ Grille: GCF100 (B6940131)
- Low Frequency 10in. (254mm)
Transducer: 0250L49U1070
- DC Resistance: 6 ohm 115%
- Mid Range Transducer: 4-1/2 in. (114mm)
0110M16U1070

- DC Resistance:
1 Watt @ 1 Meter

PAC KAG E

8.0 ohm 115%

\

Warranty Card 15-35-4026-00

SYSTEM COMPONENTS: (contd)
- High Frequency (14mm) Ti Laminate

Transducer: 14R7DOBFIRH0094
- DCResistance: 6 ohm 110%
- Crossover Network/

Terminal Cup: B6034149

AURAL SWEEP TEST SPECIFICATIONS:
A System Aural Sweep Test: 5.0V Input, 20 Hz to 20 kHz
B, L.F. Aural Sweep Test: 5.0V Input, 50 Hz to 5 kHz
C. ME Aural Sweep Test: 4.0V Input, 700 Hz to 5 kHz
D, H.F. Aural Sweep Test: 2.0V Input, 1 kHz to 20 kHz

PHYSICAL SPECIFICATIONS:

- Enclosure Dimensions: 27.0 x 12.81 x 11.68 in. D

(686mm x 325mm x 297mm D)
SHIPPING WEIGHT: 36 lbs. (16.3 kg.)

WARRANTY INFORMATION:
o Refer to the Warranty Statement packed with each product.

WIRING DIAGRAM

Owners Manual 1530-4136-00 S k H' h F
pea er, I req Network/
14R7D08R H0094 Terminal Cup
56034149
Top Pad (4) -
15-61-4032-00
g Speaker, Mid Freq
C110M16U1070
Poly Bag
15-56-4024-00
Speaker,
Carton Low Freq
15-25-4155-00 0250L49U1070
GRN/BLK
SCHEMATIC NCF100
+ rwvx . GR +
1:2mH
um I L.F.
INPUT 100V 5250L49U1070
- I- GRN/ELK _
______£ war +
6.3.5
250v M.F.
cnomsmm
WHT/BLK __
VEI. +
A5535
02 NR7DDI3RF'FIHOUM
VEL/BLK _
Bottom Pad (4) NOTE: CONE/DIAPHRAGM KIT NOT AVAILABLE. DEFECTIVE SPEAKER
15:61-4032-01 SHOULD BE REPLACED.
e95 REV A

JBL Consumer Products Inc., 80 Crossways Park West, Woodbury, New York 11797

CF100
