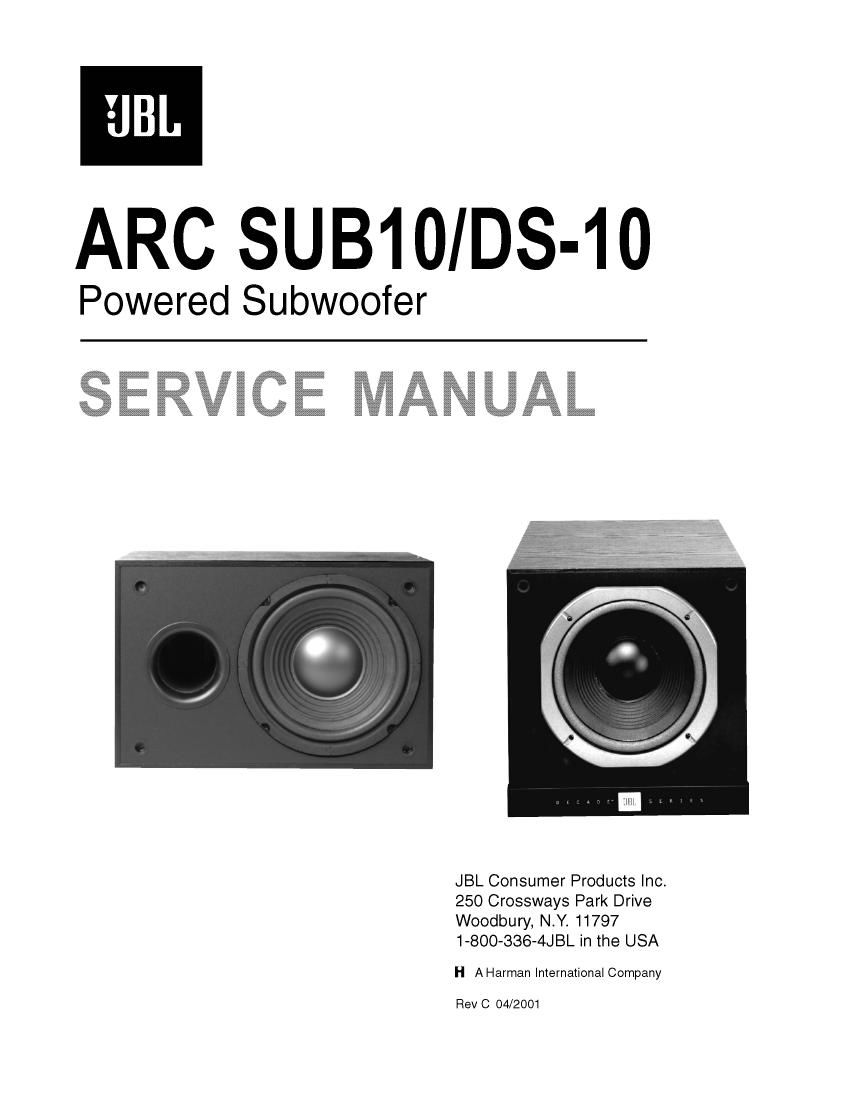

Jbl arcsub 10 service manual
This is the 24 pages manual for jbl arcsub 10 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from jbl arcsub 10 service manual (Ocr-read)
Page 1
Amplifier/Subwoofer ARC SUB10/DS-10 2 SAFETY INFORMATION IMPORTANT SERVICE NOTES: When testing the ARC/Decade Series amplifier, a load must always be connected to the output terminals , whether the woofer, or a 4 to 8 ohm resistive load. All AC powered test instruments (meters, oscillo- scopes, etc.) must have a floating ground, i.e. be connected to an isolation transformer.
Page 2
Amplifier/Subwoofer ARC SUB10/DS-10 3 TABLE OF CONTENTS SAFETY INFORMATION ....................................................2 TABLE OF CONTENTS ......................................................3 GENERAL SPECIFICATIONS ............................................3 DETAILED SPECIFICATIONS ............................................4 ARC SUB10/DS-10 CONTROLS AND THEIR FUNCTION ..............................................................6 CAUTIONS AND WARNINGS ............................................7 ARC SUB10/DS-10 BLOCK DIAGRAM ............................9 SPEAKER CONNECTIONS ..............................................10 TROUBLESHOOTING ......................................................11 ARC SUB10/DS-10 TEST SET UP AND PROCEDURE ....................................................................12 ARC SUB10/DS-10 POWER AMP MODULE TESTING FLOW CHART ................................13 SERVICE BULLETIN JBL9903 Rev1 - FEBRUARY 2001 ..............................................................14 SERVICE BULLETIN JBL2000-01 JANUARY 2001 ..................................................................15 TROUBLESHOOTING TIPS AND SOLUTIONS TO COMMON SERVICE PROBLEMS ............................16 CABINET EXPLODED VIEWS ........................................17 AMPLIFIER EXPLODED VIEWS ......................................18 ARC SUB10/DS-10 PACKING EXPLODED VIEWS ......19 ARC SUB10 Version 5 PCB ..............................................20 ARC SUB10/DS-10 Version 5.1 PCB ..............................21 ARC SUB10/DS-10 ELECTRICAL PARTS LIST ............22 ARC SUB10/DS-10 INTEGRATED CIRCUITS & TRANSISTORS ..................................................................23 ARC SUB10/DS-10 SCHEMATIC ....................................24 Amplifier Power (RMS) ........................100watts Driver 10" ..............................................High-Polymer Laminate Inputs ......................................................Line Level and Speaker Level Outputs ..................................................Speaker Level (onlyactive if Speaker Level Inputs are used) Low-Pass Frequency ............................Continuously variable from 60Hz – 180Hz High-Pass Frequency ..........................High-Pass filter at 180Hz (only active if Speaker Level Inputs are used) Frequency Response............................50Hz - 150Hz (determined by crossover setting) Dimensions (H x W x D) ......................11-1/2 x 17-1/8 x 16-1/2 (292 x 435 x 419mm) Weight ....................................................27 lbs/12.3 kg GENERAL SPECIFICATIONS ARC SUB10 14-1/4 x 14-1/4 x 16 (362 x 362 x 406mm) 27 lbs/12.3kgDS-10
