Jbl 5549 a service manual

Page 1

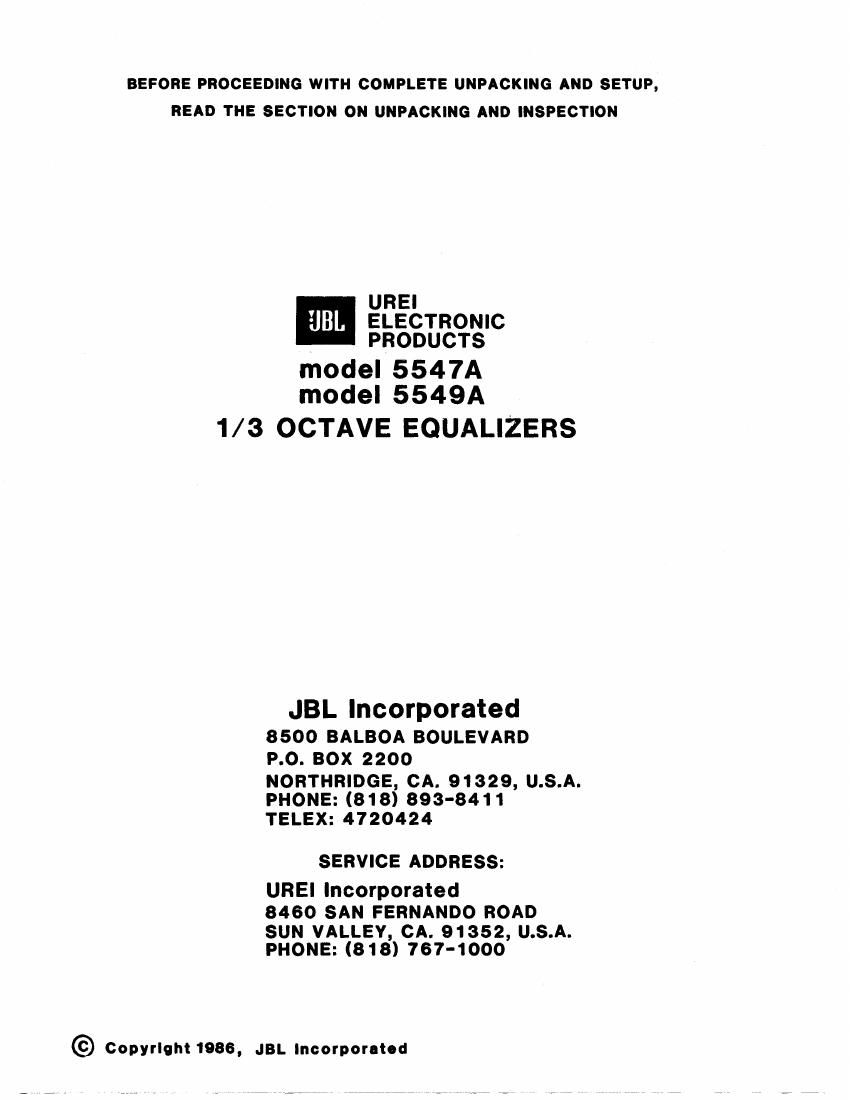

BEFORE PROCEEDING WITH COMPLETE UNPACKING AND SETUP,
READ THE SECTION ON UNPACKING AND INSPECTION

UREI
ELECTRONIC
_ PRODUCTS
model 5547A
model 5549A

1/3 OCTAVE EOUALIZERS

JBL Incorporated

8500 BALBOA BOULEVARD
P.O. BOX 2200

NORTHRIDGE, CA. 91329, U.S.A.
PHONE: (818) 893-8411
TELEX: 4720424

SERVICE ADDRESS:

UREI Incorporated
8460 SAN FERNANDO ROAD

SUN VALLEY, CA. 91352, U.S.A.
PHONE: (818) 767-1000

© Copyright 1986, JBL lncorporatod

Page 2

5547A/5549A MANUAL REV. A

SECIIQILI

EREEAQE

Thank you for purchasing this JBL/UREI product. We have
prepared this instruction manual to enable you to achieve optimum
utility and performance from your new equalizer. We encourage you
to read and to make use of the material contained in this manual.
We welcome your suggestions and comments on our products and on
this manual.

This manual is dedicated to all the people who are interested in
learning about the capabilities and limitations of our products in
order to best use them. Learn, Ean and Share.

W

Your new JBL/UREI Equalizer was carefully packed at the
iactory, and the container was designed to protect the unit during
shipment. Nevertheless, we recommend careful examination of the
shipping carton and its contents (or any sign oi physical damage
which may have occurred in transit.

11' damage is evident, do not destroy any of the packing material
or the carton, and immediately notify the carrier of a possible claim
for damage. Damage claims must be made by you.

The shipping carton should contain:
The JBL/UREI Model 5547A One-Third Octave Graphic
Equalizer,
or the JBL/UREI Model 5549A One-Third Octave Room
Equalizer
This instruction Manual
An envelope containing Rack Mounting Hardware
W
The following section contains an abbreviated installation
procedure followed by setup and operation instructions. Detailed

installation techniques and operational concerns iollow in Section ll.
Section III is devoted to Applications and Section N contains

SECTION I- l
