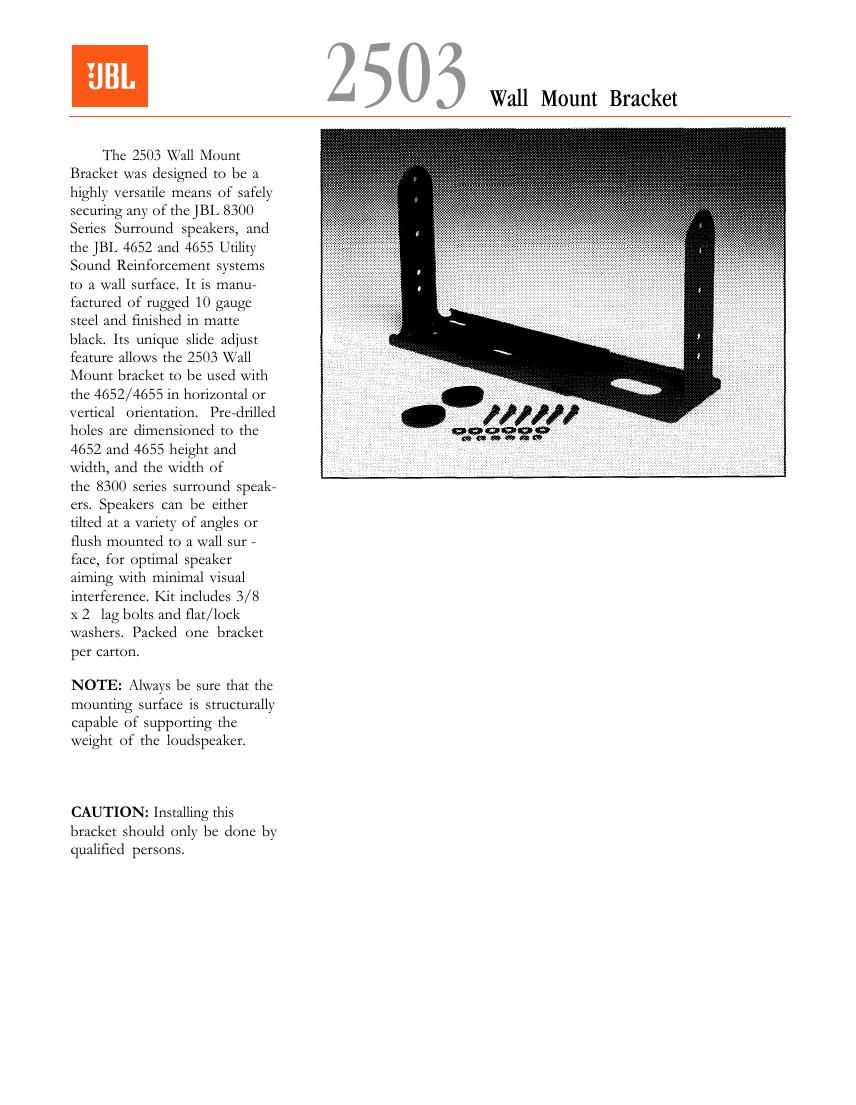

2503 Wall Mount BracketCAUTION: Installing this bracket should only be doneby qualifed persons. JBL continually engages in research related to product improvement. New materials, production methods and design refinements are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product may differ in some respect from its published description but will always equal or exceed the original design specifications unless otherwise stated. JBL Professional 8500 Balboa Boulevard, P.O. Box 2200 Northridge, California 91329 USA A Harman International Company SS 2503 10/94
Page 2
2503 Adjustable Mounting Bracket Front View Side ViewTop View Top View Front ViewSide View Inner Bracket Outer Bracket Hardware kit: 2 pcs. Gasket, 3/8 x 3 x 1/4 thick 6 pcs 3/8 x 2 hex lag bolt 8 pcs. 3/8 Flat washer 2 pcs. 5/16 Lock washer 8 pcs. 3/8 Split lock washer 2 pcs. 5/16 Flat washer Note: Dimensions in Inches
