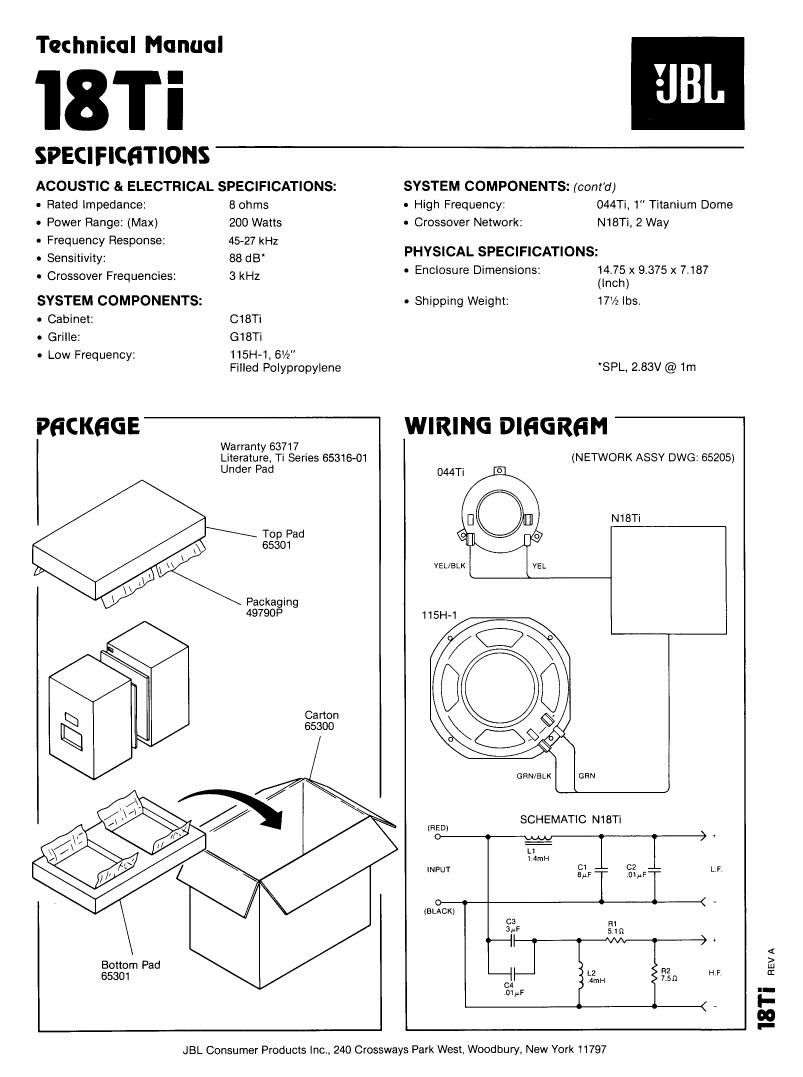

Page 1
Technical Manual
18Ti
SPECIFICGITIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
0 Rated Impedance: 8 ohms
- Power Range: (Max) 200 Walls
. Frequency Response: 45-27 kHz
o Sensitivity: 88 dB
0 Crossover Frequencies: 3 kHz
SYSTEM COMPONENTS:
o Cabinel: C18Ti
. Grille: G18Ti
- Low Frequency: 115H-1, 6%
Filled Polypropylene
PfiCKfiGE
Warranty 63717
Literature, Ti Series 65316-01
Under Pad
Top Pad
65301
Packaging
49790P
Carton
65300
Bottom Pad
65301
SYSTEM COMPONENTS: (contd)
- High Frequency: 044Ti, 1" Tilanium Dome
- Crossover Network: N18Ti, 2 Way
PHYSICAL SPECIFICATIONS:
- Enclosure Dimensions: 14.75 x 9.375 x 7.187
(Inch)
- Shipping Weight: 17% lbs.
SPL, 2,83V @ 1m
WIRING DIEGRGM
(NETWORK ASSY owe: 65205)
(RED)
0 . A l l
u
LamH
01 _. oz __
uNPur EMF _,_ our L.F.
c ,
(BLACK)
(:3 m
IMF 5.151
Ii . r ,
II
-J L2 g R? H F
15:1
04 mil
.o1,.F
JBL Consumer Products Inc.. 240 Crossways Park West, Woodbury, New York 11797
n
I FIEVA
18T
