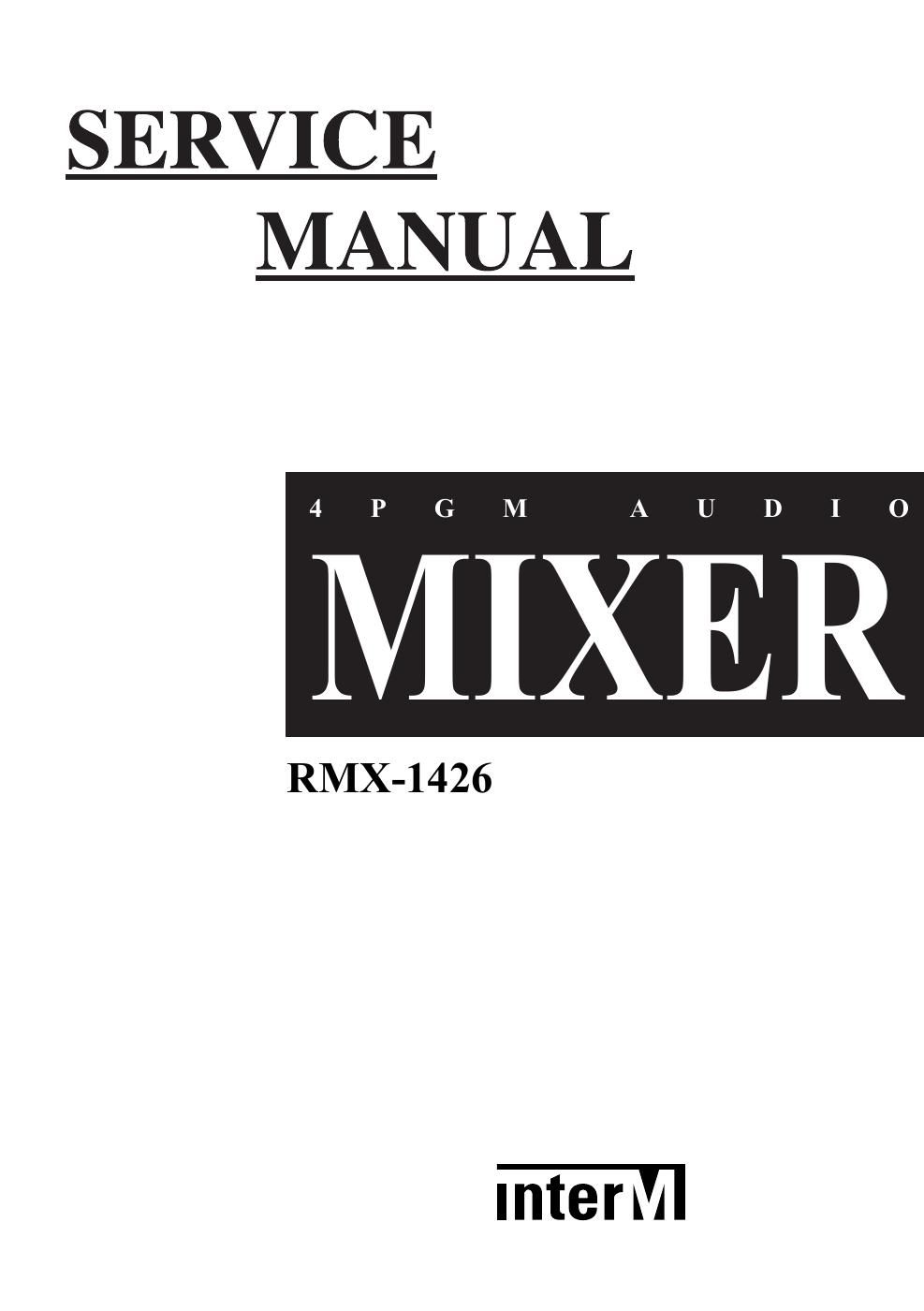

Page 1
SERVICE
MANUAL
InterM
Page 2
ELECTRICAL PARTS LISI' (Rm-17426)
Reference ITEM NO Description Value Qty
lVDm IM3UT B'D (4003490100)
C1348137 3509103530-7 CAP CE F 0.01UF 50v z 0.01 4
C138 3539103521-A CAP CE YF 10000PE 25v 2 AXIAL 10000P 1
C106-107 c1129113 3509101231-A CAP CE 0 100PF 50v K AXIAL 100P 6
C118 C129
C114 C116 3509221231-A CAP CE B 220PE 50v K AXIAL 220P 2
C125 3529220311-A CAP CE SL 22PE 50v I AXIAL 22P 1
C104-105 3509271231-A CAP CE B 270PE 50v K AXIAL 270P 2
C117 C119 C124 C127 3529470311-A CAP CE SL 47PE 50vI AXIAL 47P 5
C130
AN102 4355796901 CONNECTOR ASS'Y 6P 6Pe 6P 1
CON101 4428592820 WAEER BOX 20P TPHABOB-1419-20A WAEER BOX 20P 1
0101-103 2058304100 DIODE |N4148M 1N 4148 3
C115 34092102217 CAP AE RSG 1000UF 6.3V 10 P 1000/ 6.3 1
C133 34092229717 CAP AE RSG 2.2UF 50v 5 P 2.2/50 1
C110»111 c120 C126 3409222071-7 CAP AE RSG 22UF 50v 5 P 22/ 50 6
C128 C131
C101»lO3 3409247081-T CAP AE SG 47UF 63v 8 P 47/ 63 3
VR101 3228072610 VR 09HBF25 RD203-20KRD 20KR0 1
L0101 2300030105 LED L7L-1CHE-021A LI7EON AMBER(SLR34URF) 1
C123 36091021207 CAP MA 0.001UF 100v 0.001M 1
C121-122 3609393120-T CAP MA 0.039UF 100v J 0.039M 2
C132 3609473120-7 CAP MA 0.047UF 100v 0.047M 1
|C1013102 2118010432 Ic NJ M2068DD I RC NJ M 206800 2
sw101 4628992410 sw PUSH SPUN19X1M011 SPUN19X1M011 1
sw102 4628986110 sw PUSH SPUN60X1C021 SPUN60X1C021 1
R157 3009182973 REs CE 1.8K 1/5wI N 1.8K 1
R124 R133 R137 3009101973 REs CE 100 1/5w I N 100 3
R109-110 R113-114 3009100973 REs CE 10 1/ 5w J N 10 4
R149-150 3089100275 REs NER 10 1/ 4wI R PHILKO ER 10 2
R125 R127 R131-132 3009103973 REs CE 10K 1/5w J N 10K 6
R135 R148
R103-104 R152 3009153973 REs CE 15K 1/5w J N 15K 3
R156 3009184973 REs CE 180K 1/ 5w J N 180K 1
R138147 3009183973 REs CE 18I< 1/5w J N 18I< 10
R155 3009105973 RES CE 1M 1/5wI N 1M 1
R117~118 3003220953 RES CE 2.2K 1/5w E N 2.2K 1% 2
R136 3009223973 RES CE 22K 1/5wI N 22I< 1
R1229123 3002270953 REs CE 27K 1/ 5w EN 27K 1% 2
R154 3009202973 REs CE 2K 1/ 5wI N 2K 1
R126 3009333973 REs CE 33I< 1/5wI N 33I< 1
R128 3009472973 REs CE 4.7K 1/5w I N 4.7K 1
R121 3009430973 REs CE 43 1/ 5w I N 43 1
R107-108 3009471973 REs CE 470 1/ 5w I N 470 2
R1583159 3009474973 REs CE 470K 1/ 5w I N 470K 2
