Interm r 150 300 500 amp
This is the 20 pages manual for interm r 150 300 500 amp.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from interm r 150 300 500 amp (Ocr-read)

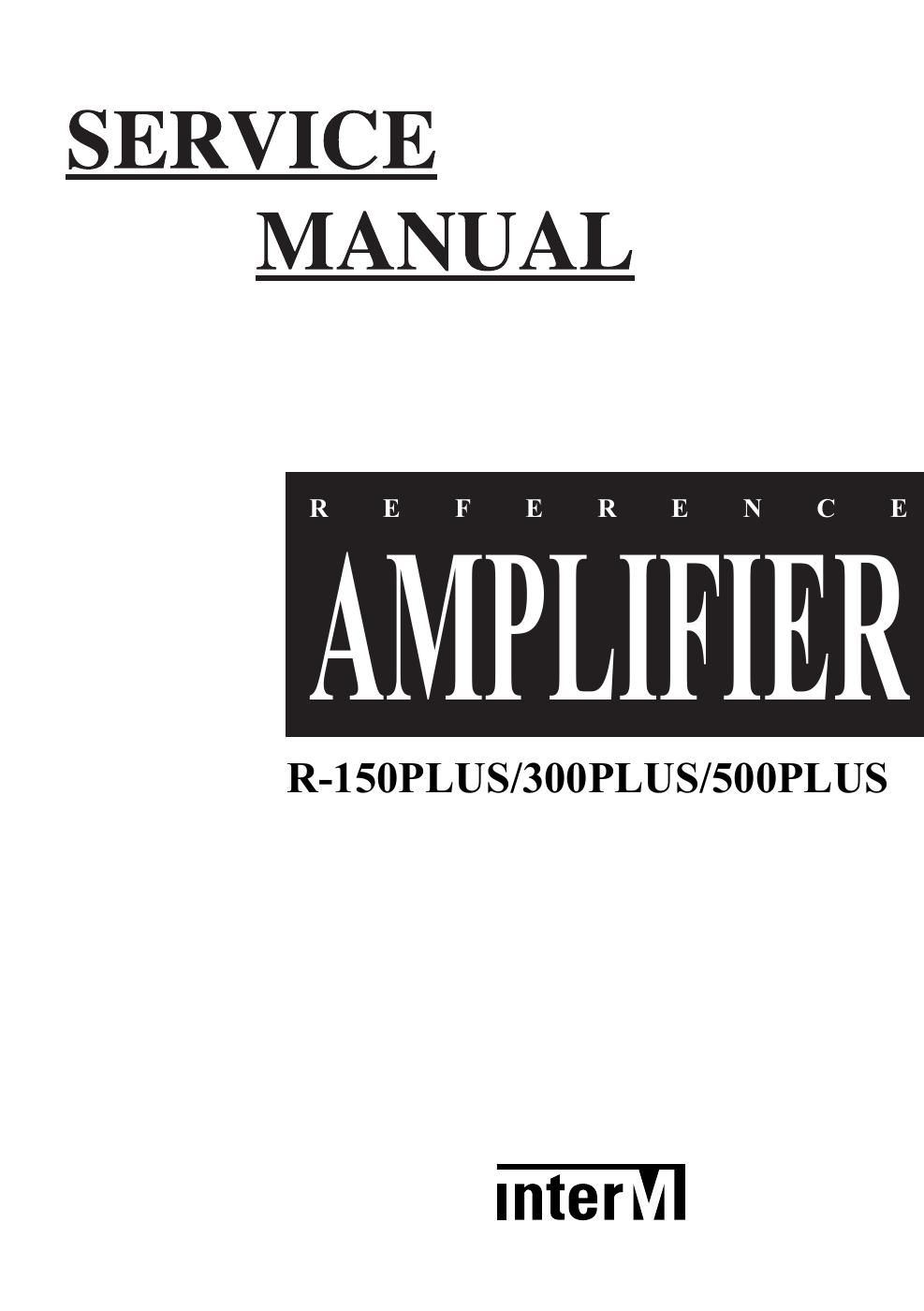

Page 1
SERVICE
MANUAL
AMPLIFIER
R-l SPLO US/P300 SU/S 00PL US
InterM
Page 2
PARTS LISI'(
Ref No. Part No. Description Value Qty
MQIN B'D (04008499900)
[3200 2058100988 DOII BRIIIEE PBU 804 804 1
C203 3639474255 CAP TL 474K 250V K 474/ 250 1
CN10 4355923806 CONNECTOR WAFER 06P(J .SI') 6P 1
CNS 4355923807 CON WAFER 07F] SI' (3. 96) 7P 1
CN7 4355923803 CONNECTOR WAFER 03P(J .SI') 3P 1
02017202 2058100996 DOII RECTIFIER LT1N4006(4007) 1N 4006 2
C208 340921014er CAP AF RSG 100UF 25V 6 P 100/ 25 1
C207 340924799er CAP AF R36 4. 7UF 100V 5 P 4. 7/ 100 1
C211 340921014er CAP AF RSG 1000F 25V 6 P 100/ 25 1
@10 340921017er CAP AF PEG 100UF 50V 8 P 100/ 50 1
(201202 3419568281 CAP AF 6%0UF 63V 30F J AMICON 6800/63 2
GND1 6505958210 GND TERMINAL GND PLATE 1
R201 3009104973 RES CF 100K 1/ 5W] N 100K 1
R2027205 3009223973 RES CF 22K 1/ SW] N 22K 4
R206207 3009183973 RES CF 18K 1/ SW] N 18K 2
R221 30396815727F RES IVD 680 2W] N 680k 2W 1
R220 3009223973 RES CF 22K 1/ SW] N 22K 1
R208 3009223973 RES CF 22K 1/ SW] N 22K 1
R209 3009471973 RES CF 470 1/ SW] N 470 1
R212 3009104973 RES CF 100K 1/ SW] N 100K 1
R210 3009223973 RES CF 22K 1/ SW] N 22K 1
R211 3009563973 RES CF 56K 1/ SW] N 56K 1
RY1 5528009950 RELAY HRVCR3A23 II 24VH RLY M24V 1
IC201 2118050410 IC TA7317P TOSHIBA TA7317P 1
CN4 4355923804 CONNECTOR WAFER 04F (J .SI') WAFHW4P3196 1
1CH AIVP B'D (04008499910)
C101L 350910223er CAP CE YB 1000PF 50v K AXIAL 0. 001 1
C07L C301L C302L 3509104530T CAP CE F 0.1UF 50\/ Z 01/ 50 3
C03L C04L 350910123er CAP CE B 100PF 50\/ K AXIAL 100P 2
C104L C106L C160L 35291503117A CAP CE 1 15PF 50V] AXIAL 15P 3
C08L 352910031er CAP CE 1 10PF 50V] AXIAL 10P 1
C112L 35293303117A CAP CE 1 33PF 50V] AXIAL 33F 1
C05L 352905031er CAP CE 1 SP 50\/ C AXIAL 5P 1
ANS 4355464911 CON ASSY 7P] ST 7P 1
L101L 2648099920 COIL INDJCT OR 0 6UH 0. 6uH 1
AN1171 4355465109 CON ASS'Y 3P SHIELD 3P 1
ANZ 4355465202 CON ASSY 6P SHIELD(3P) 6P 1
D101L D102L D103L 2058304100 DOLE [N4148M 1N4148 11
D104L D106L D107L
D108L D109L D110L
D111L D112L
D113L D114L 2058100110 DOLE RL207 PYUNG CHANG PS 2010 2
C105L C117L 340921007er CAP AF RSG 10UF 50V 5 P 10/ 50 2
C118L C119L 340924799er CAP AF RSG 4. 7UF 100V 5 P 4. 7/ 100 2
C113L C114L 340922207er CAP AF PEG 22UF 50V 5 P 22/ 50 2
C115L 340922214er CAP AF PEG ZZOUF 25V] 8 P 220/ 25 1
C102L 340924797er CAP AF PEG 4. 7UF 5W 5 P 4. 7/ 50 1
