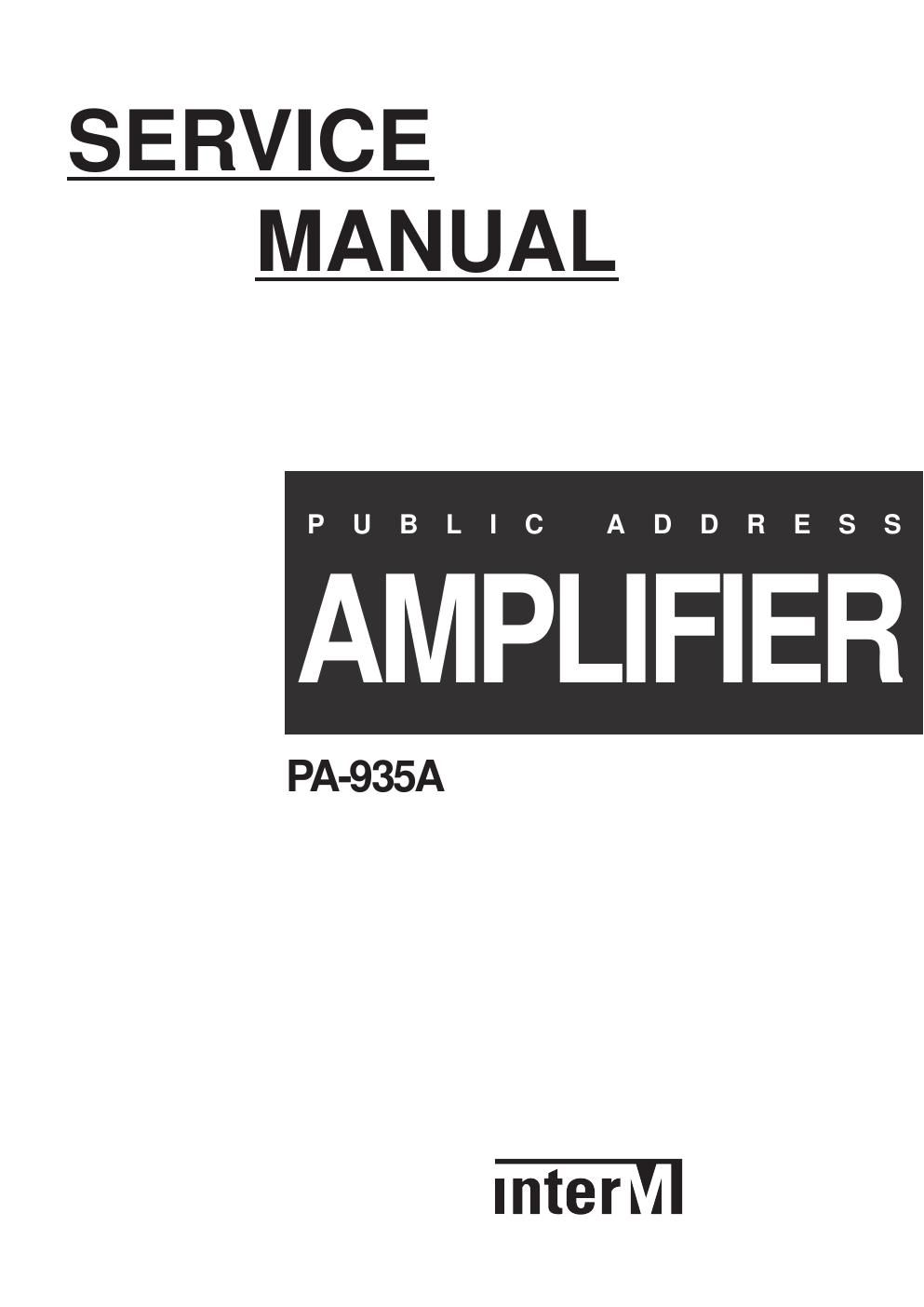

SERVICE
MANUAL
AMPLIFIER
PA-935A
InterM
Page 2
ELECTRICAL ADJUSTMENT PROCEDURE i
1. Connection
©0112
TPi
TESTEPOWT E E
8 EL?
TP2 E "
TEST POINY 2"
IE 2 El
VOL T ME T E R
DIGITAL or ANALOGUE
2. Adjustment
- Adjust SVR104 so that the current through the R190 become 4~7mV.
When that voltage across the Positive TP1 to Negative TP2 becomes 4~7mV,
the current becomes 15~26mA.
