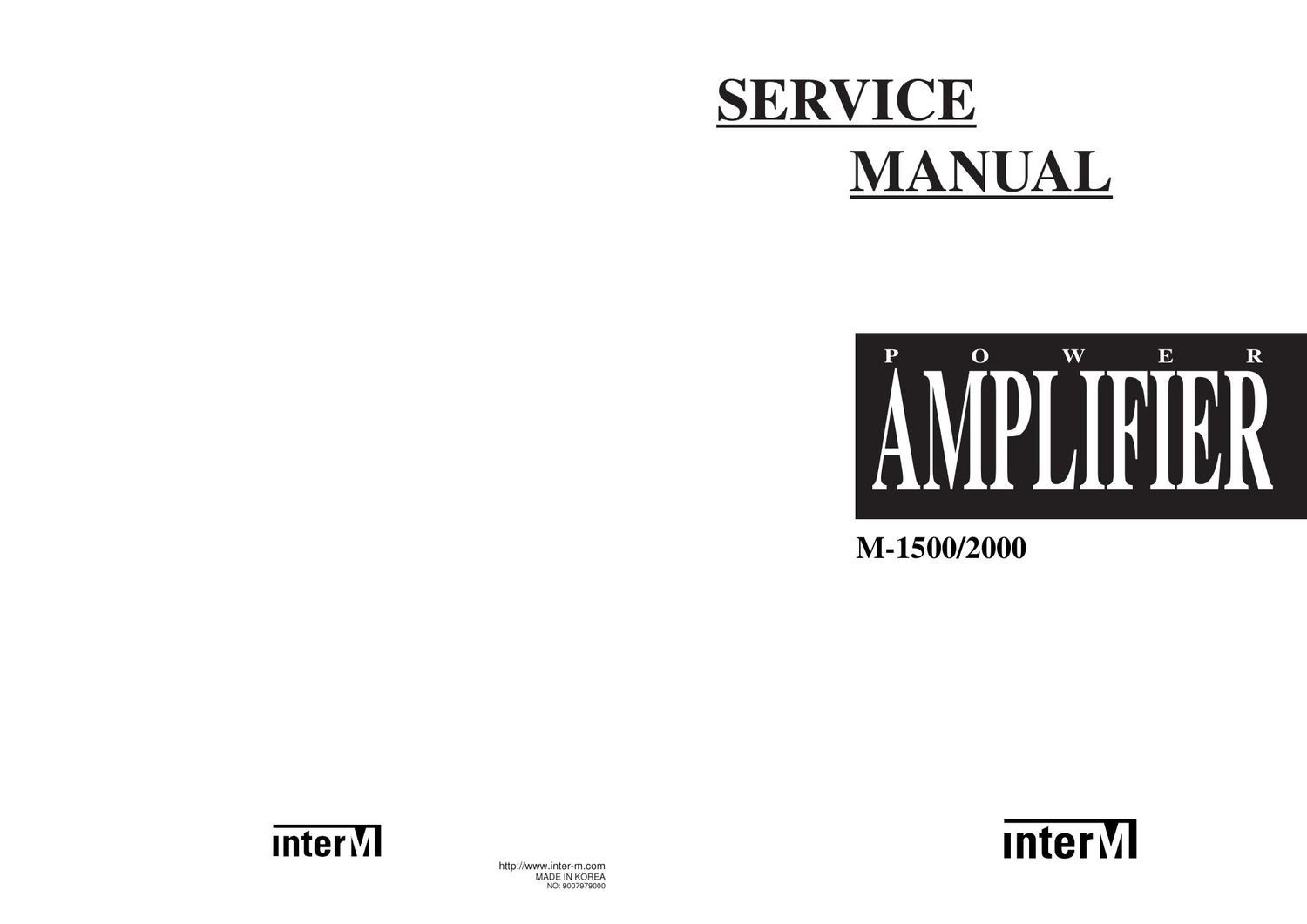

Interm m 1500 2000 pwramp
This is the 10 pages manual for interm m 1500 2000 pwramp.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from interm m 1500 2000 pwramp (Ocr-read)
Page 2
ELECTWCALADJUSTMENTPROCEDURE
I IDLE CURRENT
A. Setting
Set the master volume minimum.
B. Connection
o
TP1 TP2 b
o
C > R162 R145 VOLT METER
VR101
AMP B'D
C. Adjustment
-Adjust VR101 so that the current through the R162, R145 become 10 milliampere.
- When that voltage across the TP1" to TP2 becomes 30 millivolt, the current becomes 10
milliampere.
CONTENTS
Electrical Adjustment Procedure 1
Specifications . . . . . . . . . . . . . . . . . . . . . . 2
Electrical Parts List -------------------- 3
Top and Bottom View of RC. Board - - - - - - - - - - - - -5.
Wiring Diagram ...................... 7
Block Diagram . . . . . . . . . . . . . . . . . . . 8
Schematic Diagram .................... 9 1o! 11, 12
Exploded View of Cabinet & Chassis / Mechanical Parts List . . 13, 14
Assy Drawing ...................... 151 16
