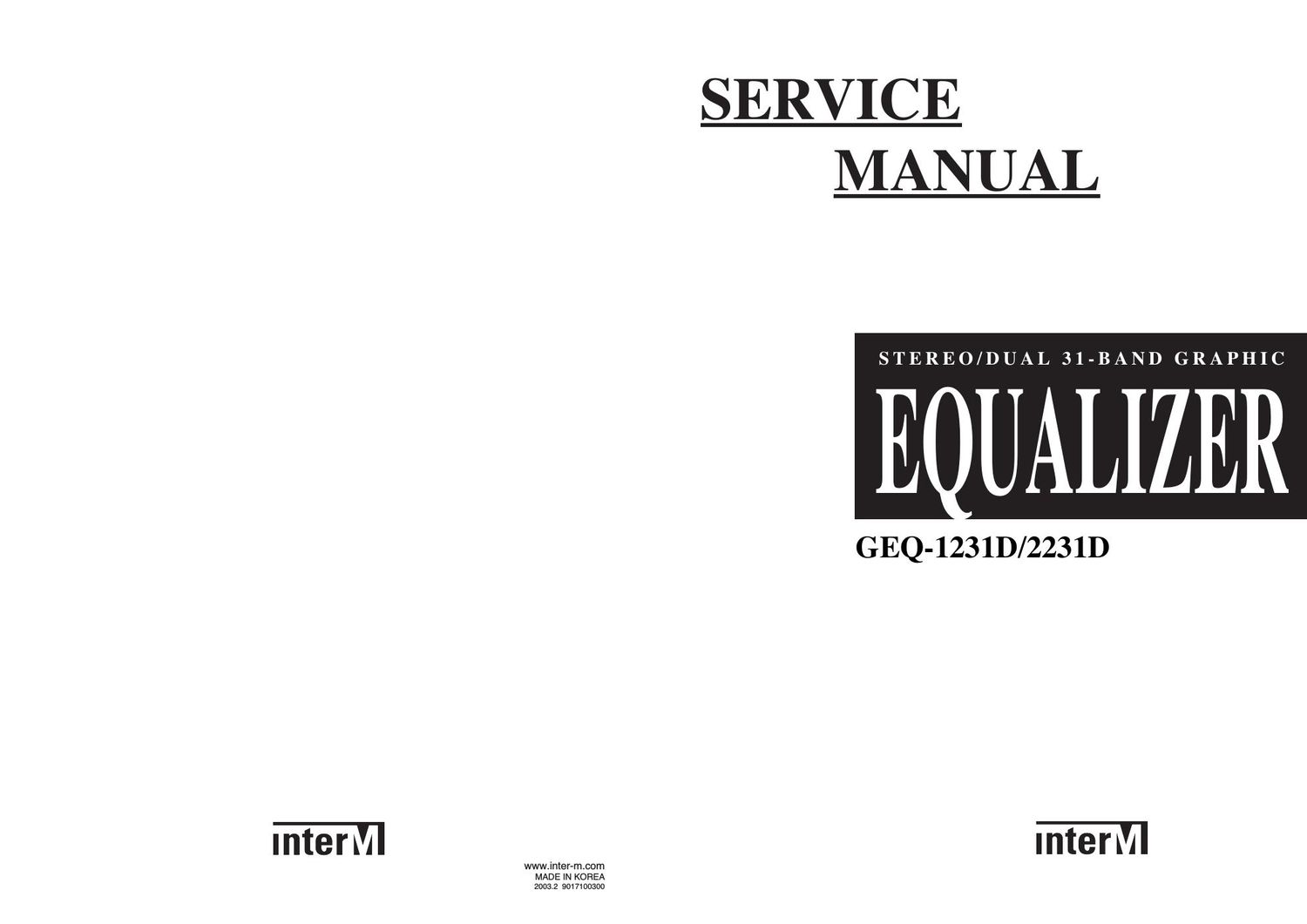

Interm geq 1231d 2231d equal
This is the 32 pages manual for interm geq 1231d 2231d equal.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from interm geq 1231d 2231d equal (Ocr-read)
Page 1
1 MICOM DATA MM74HC4051 8-CHANNEL ANALOG MULTIPLEXER GENERAL DESCRIPTION The MM74HC4051, MM74HC4052 and MM74HC4053 Multiplexers are digitally controlled analog switches implemented in advanced silicon-gate CMOS technology. These switches have low on resistance and low off leakages. They are bidirectional switches, thus any analog input may be used as an output and vice-versa. Also These switches contain linearization circuity which lowers the on resistance and increases switch linearity. These devices allow control of up to ± 6V(peak) analog signals with digital control signals of 0 to 6V. Three supply pins are provided for V CC, ground, and V EE. This enables the connection of 0-5V logic signals when V CC = 5V and an analog input range of ± 5V when V EE = 5V. All three devices also have an inhibit control which when HIGH will disable all switches to their off state. All analog inputs and outputs and digital inputs are protected from electrostatic damage by diodes to V CC and ground. This device connects together the outputs of 8 switches, thus achieving an 8 channel multiplexer. The binary code placed on the A, B, and C select lines determines which one of the eight switches is on, and connects one of the eight inputs to the common output. FEATURES - Wide analog input voltage range: ±6V - Low on resistance: 50 typ.(V CC-V EE = 4.5V), 30 typ.(V CC-V EE = 9V) - Logic level translation to enable 5V logic with ± 5V analog signals - Low quiescent current: 80µA maximum (74HC) - Matched Switch characteristic ORDERING CODE: Devices also available in Tape and Reel. Specify by appending the suffix letter Xto the ordering code. Order Number Package Number Package Description MM74HC4051M M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012,0.150˝ Narrow MM74HC4051WM M16B 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013,0.300˝ Wide MM74HC4051SJ M16D 16-Lead Small Outline Package (SOP), ELAJ TYPE ll, 5.3mm Wide MM74HC4051MTC MTC16 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153,4.4mm Wide MM74HC4051N N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-0010.300˝ Wide Micom Data 1 ~ 21 Specifications 22 Electrical Parts List 23 ~ 24 Top and Bottom View of P.C. Board 25 ~ 29 Wiring Diagram 30 Block Diagram 31~ 32 Schematic Diagram 33 ~ 50 Exploded View of Cabinet & Chassis / Mechanical Parts List 51 ~ 54 Assy Drawing 55 ~ 58 CONTENTS
Page 2
3 PHYSICAL DIMENSIONS inches (millimeters) unless otherwise noted 2 TRUTH TABLES LOGIC DIAGRAMS CONNECTION DIAGRAMS (Pin Assignments for DIP, SOIC, SOP and TSSO) Input Inh C B AON Channel H L L L L L L L LX L L L L H H H HX L L H H L L H HX L H L H L H L HNone Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7 To p V i e w
