Page 1

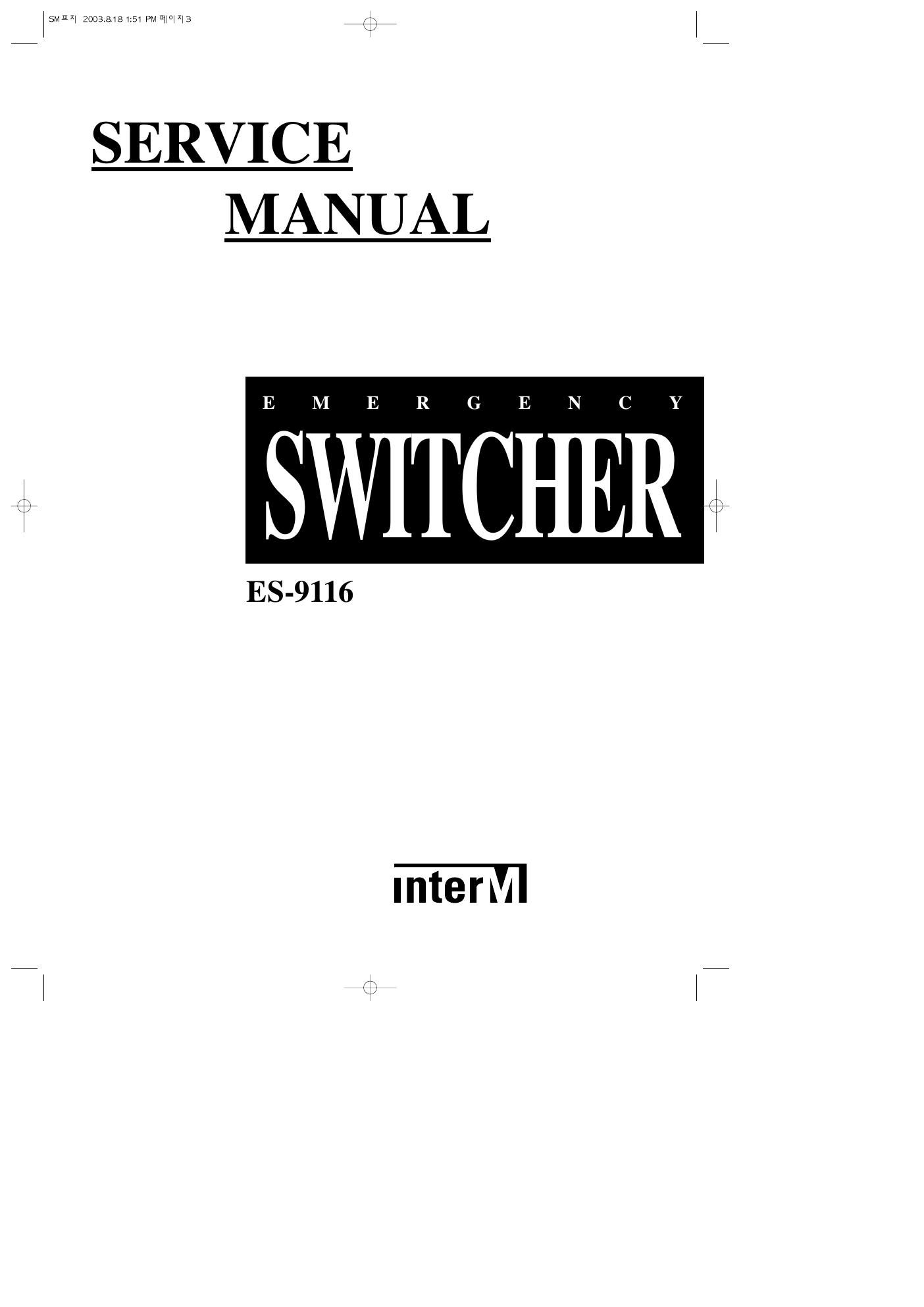

SERVICE
MANUAL

E M E R G E N C Y

SWITCHER

ES-9116

InterM

Page 2

ELECTRICAL PARTS LIST

Ref No. Part No. Descn'pfion Value
MAIN B'D (4003504300)
Q1- 50 2008606104- T TR NPN KTC3198- Y- AT TO- 92 KTC 3198Y
D6 D54- 58 D60- 85 2058100996 DIODE RECTIFIER LTlN4006(4007) 1N 4006
D86- 117 2058304100 DIODE |N4l48M 1N 4148
D1- 5 D7- 53 D59 D118 2058304107 DIODE SCHO'I'I'KY SB- 150 (SR105) SB 150
ZD1- 32 2058502100 DIODE ZENER UZ- 103M(1N5240B) UZ lOBM
R82- 97 R114- 116 3009103973 RES CF 10K l/SWJ N 10K
R18- 50 R52 R54 R56 R58 3009104973 RES CF 100K l/SWJ N 100K
R60 R62 R64 R67 R69
R71 R73 R75 R77 R79 R81
R98- 113 3009153973 RES CF 15K l/SWJ N 15K
R1 17 3009272973 RES CF 2.7K 1/5WJ N 2.7K
R51 R53 R55 R57 R59 R61 3009473973 RES CF 47K l/SWJ N 47K
R63 R65- 66 R68 R70 R72 R74
R76 R78 R80 R117- 120
R121 3039102572- F RES MO lK 2WJ N 1K 2W
Cl- 2 3409222071-T CAP AF RSG 22UF 50V 5 P 22/50
T1- 5 4408194702 CON ASS'Y CON ASS'Y
CON6 4428598303 CONNECTOR WAFER LW- 0640- 3P LW- 0640- 3P
CON10 CON9 4428598304 WAFER LW- 0640- 4P LW- 0640- 04P
CON4 CON5 4428598308 CONNECTOR WAFER LW- 0640- SP LW- 0640- 08P
CON8 4428598309 CONNECTOR WAFER LW- 0640- 9P LW- 0640- 9P
CON2- 3 CON7 4428598310 CONNECTOR WAFER LW- 0640- 10P LW- 0640- 10P
TERl/l TERl/2 TERZ/l TER2/2 4465997310 SCREW TERMINAL 8P TER 8P
TER3 4465997703 SCREW TERMINAL 3P TER 3P
LED1 B'D (4003504330)
ALL LED1- 8 2300050101 LED LTL- 307E- 012A LTL- 307E- 012A
AN6~7 4355901310 CON ASS'Y 10P ES- 9116 CON(5P~5P)
LED2 B'D (4003504340)
LED9- 16 2300050101 LED LTL- 307E- 012A LTL- 307E- 012A
AN8 4355901410 CON ASS'Y 9P ES- 9116 9P ES- 9116
EM SW1 B'D (4003504310)
AN1 4355901210 CON ASS'Y 10P ES- 9116 10P ES- 9116
AN2 4355901510 CON ASS'Y 8P ES- 9116 SP ES- 9116
SW1- 8 4628997910 SW PUSH J PA083- 308DT- 71 J AEIL J PA- 83- 38- Ol

1/2
