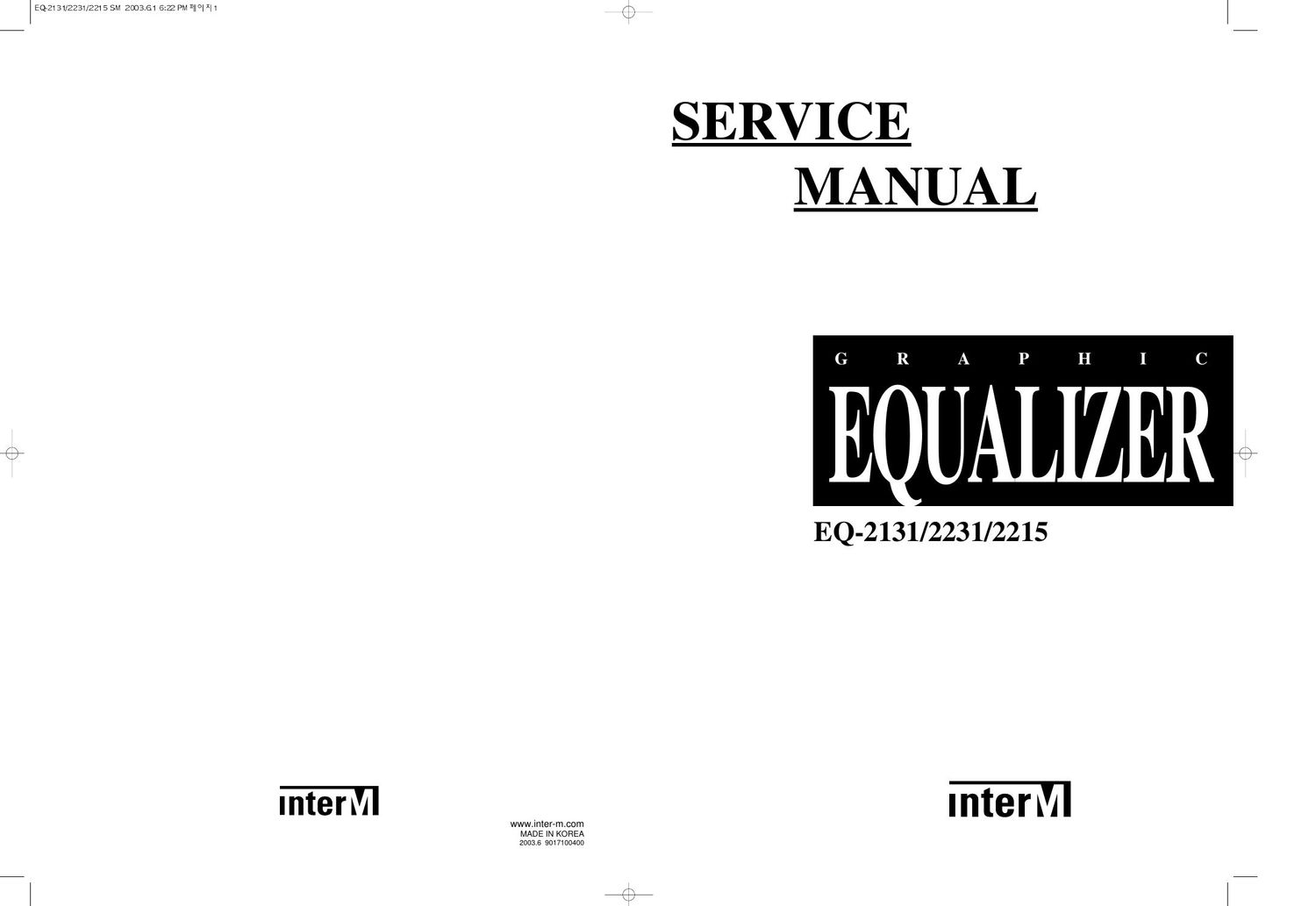

Interm eq 2131 2231 2215 eq ual
This is the 22 pages manual for interm eq 2131 2231 2215 eq ual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from interm eq 2131 2231 2215 eq ual (Ocr-read)
Page 2
EQ-21 31/2231/221 5 SM 200351 6:22 PM II1|°| x| 3 %
SPECIFICATIONS |
I ELECTRICAL
- Output Level / Impedance .................................................................................................... OdB/GOO, BAL
- Input Sensitivity / impedance ................................................................................................ OdB/GOO, BAL
- Total Harmonic Distortion ...Less than 0.01%
- Frequency Response... .20Hz~20kHz (:1dB)
- Signal to Noise Ratio ...Better than 85dB
- Equalizer Level ..................................................................................................................................... +6dB
- Equalizer Frequency
EQ-2131/2231 ........................................... 1/3 Octave ISO (International-Standard-Organization) centers
EQ-2215 ................................................................................................................. 2/3 Octave ISO centers
- High Pass Filter. ........... 80Hz (18dB/oct)
- Cut Only Mode .............................................................................................................. -12dB or -24dB:r3dB
I GENERAL
- Power Source ..................................................................................... AC 100V/120V/230V/240V, 50/60Hz
- Power Consumption .................................................................................................... EQ-2131/2215: 15W
EQ-2231: 20W
- Weight ............................................................................................................. EQ-2131/2215: 4.5kg/10Lbs
EQ-2231 : 5kg/11 Lbs
- Dimensions .................................................................. 482mm/19in(W) ><88mm/3.5in(H) ><280mm/11in(D)
Due to continuous improvements specifications and design are subject to change without prior notice.
CONTENTS |
Specifications . .............. 1
Electrical Parts List """"""""" ' - ' - ' ' -2, 3, 4, 5, 6
Top and Bottom View of RC. Board ' ' ' ---------- 7, 8, 9, 10
Wiring Diagram . .............. . . . . . . .11, 121 13
Block Diagram . .............. . . . . . . .141 151 16
Schematic Diagram ............. . . 17 ~ 26
Exploded View of Cabinet & Chassis / Mechanical Parts List . -27 ~ 32
Ass y Drawing . .............. . . 33 ~ 38
