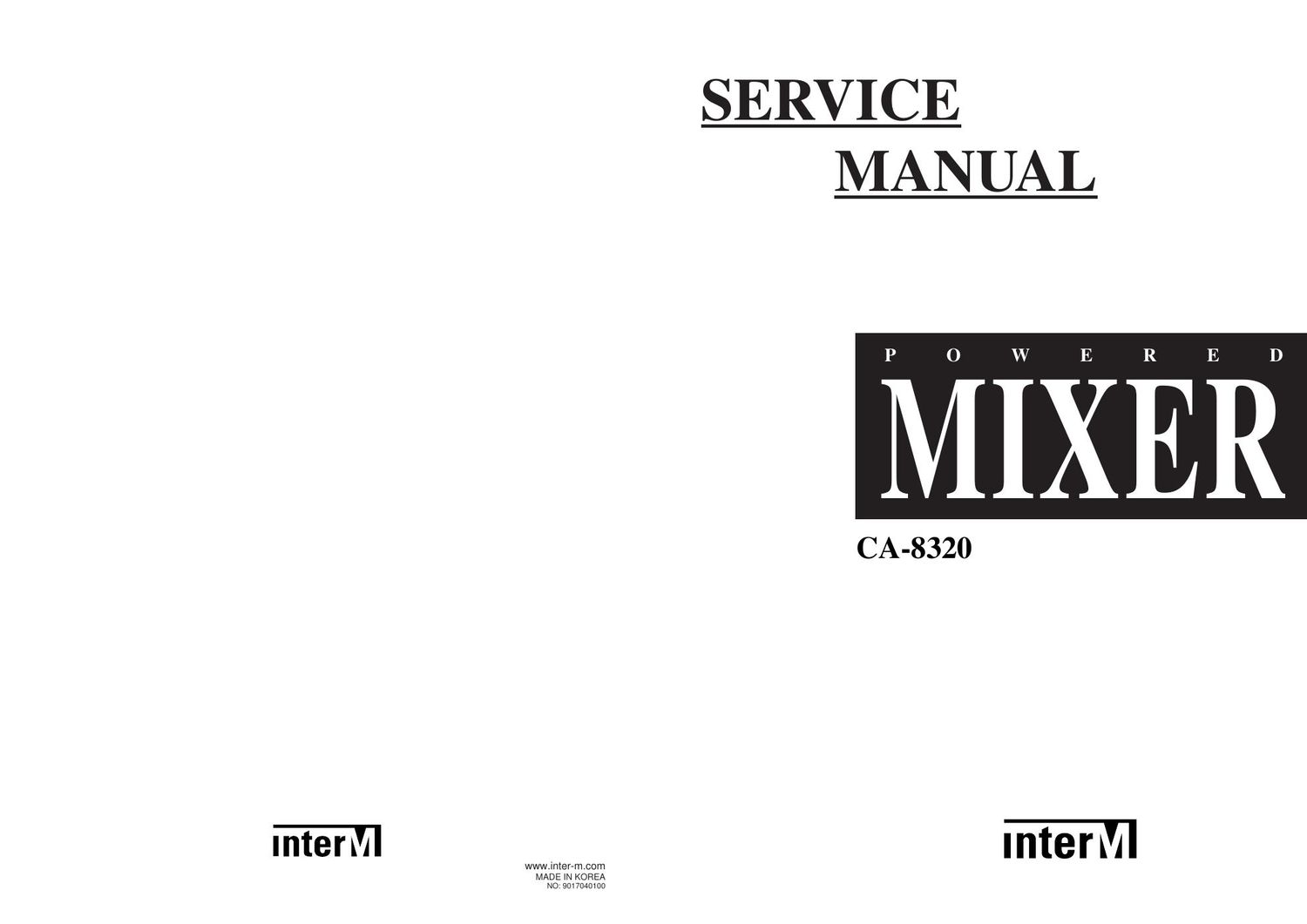

Interm ca 8320 pwrmix

This is the 19 pages manual for interm ca 8320 pwrmix.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 19
interm ca 8320 pwrmix

Extracted text from interm ca 8320 pwrmix (Ocr-read)


Page 2

ELECTRICAL ADJUSTMENT PROCEDURE

I IDLE CURRENT

A. Setting
Set the mixer master volume minimum.

B. Connection

B C E B C E B C E
El ::Ei¥ 1E1 El
0113 0115 0213 0215 0313 0315 @
VR301
VR101 VR201
0114 0116 0214 0216 0314 0316
El I I I I I I I I I I l I I
E c B E c B E c B //
O O O | O |
I |
v ' I
< ______ |_ _________
VOLT METER

C. Adjustment
Adjust VR101, so that the voltage through the between emitter of 0115 and 0116 become 5mV~6mV.
CONTENTS Adjust VR201, so that the voltage through the between emitter of 0215 and 0216 become 5mV~6mV.
Adjust VR301, so that the voltage through the between emitter of 0315 and 0316 become 5mV~6mV.

Electrical Adjustment Procedure - - - - - - - - - - - - - - 1

Surround Processor 3 ------------------- 2, 3, 4, 5, 6

Specifications ...................... 7

Electrical Parts List .................... 8, 9, 10, 11, 12,13,14,15,16, 17
Top and Bottom View of RC. Board - - - - - - - - - - - - -18, 19, 20

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . 21

Block Diagram ...................... 22

Schematic Diagram .................... 23, 24, 25, 26, 27, 28

Exploded View of Cabinet & Chassis / Mechanical Parts List . . 29, 30
Assy Drawing ...................... 31 32
