Interm ca 5115d 5130 pwrmix

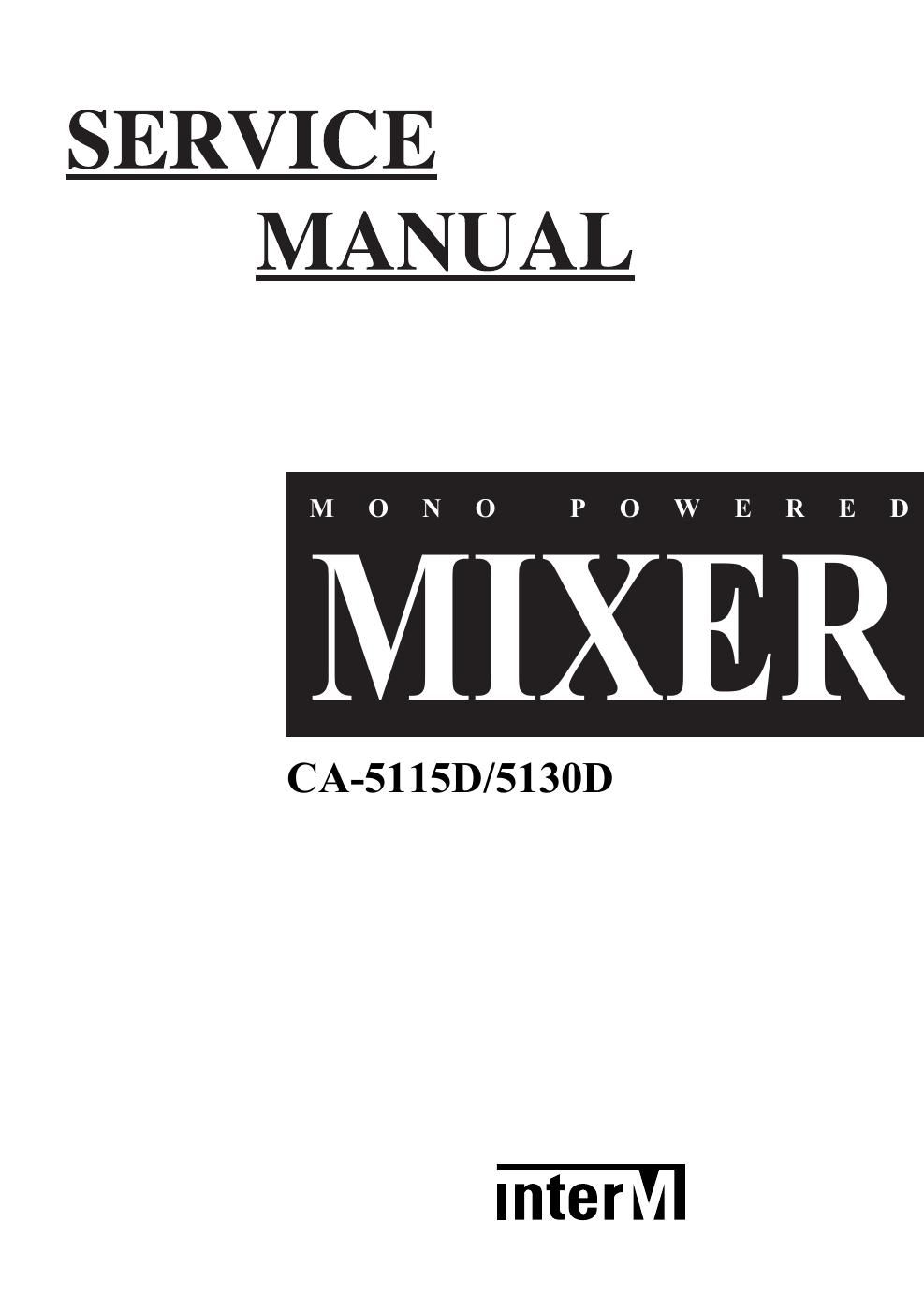

This is the 10 pages manual for interm ca 5115d 5130 pwrmix.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from interm ca 5115d 5130 pwrmix (Ocr-read)
Page 2
ELECTRICAL PARTS LISI' ( CA - 511
Ref No. Value Qty
CHAN|\EL B'D
R32- 33 R127- 129 10
C6 C104 C106 C205 10/ 25
C208
C16 C20 C213 47/ 25 3
C2324 C61 C117 100/ 25 9
C124 C127» 128 C142
C209
C4-5 47P 2
C7 470P 1
C9 C11 C102 100P 3
C119 126 22P 2
C155 47/ 16(BP) 1
C146 M102 1
R11 R21 R27 R105 10K 17
R29 R112»113 R130
R107 R120 R132 R134
R201 R204-205 R211
R303
R13 R26 R103 R106 100K 13
R108 R121 R131 R133
R202 R206 R210 R212
R304
R18- 19 R104 12K 6
R123 R136 R215
R7-8 R209 1K 3
R203 2.4K 1
D1-7 1N4148 7
C8 C19 C101 C103 22/ 25 7
C120 C144 C202
C122 C147 C121 C216 47/ 25 6
C145 C150
C210 C214 22/ 25(N) 2
R23 R25 R28 R125 18K 4
R20 R24 R3539 220 7
C118 C125 C206 C211 220P 4
R14 13K 1
R208 27K 1
R109 R207 R227 22K 3
R31 R302 3. 3K 2
R122 R135 47K 2
C12 C17 C105 C143 33P 9
