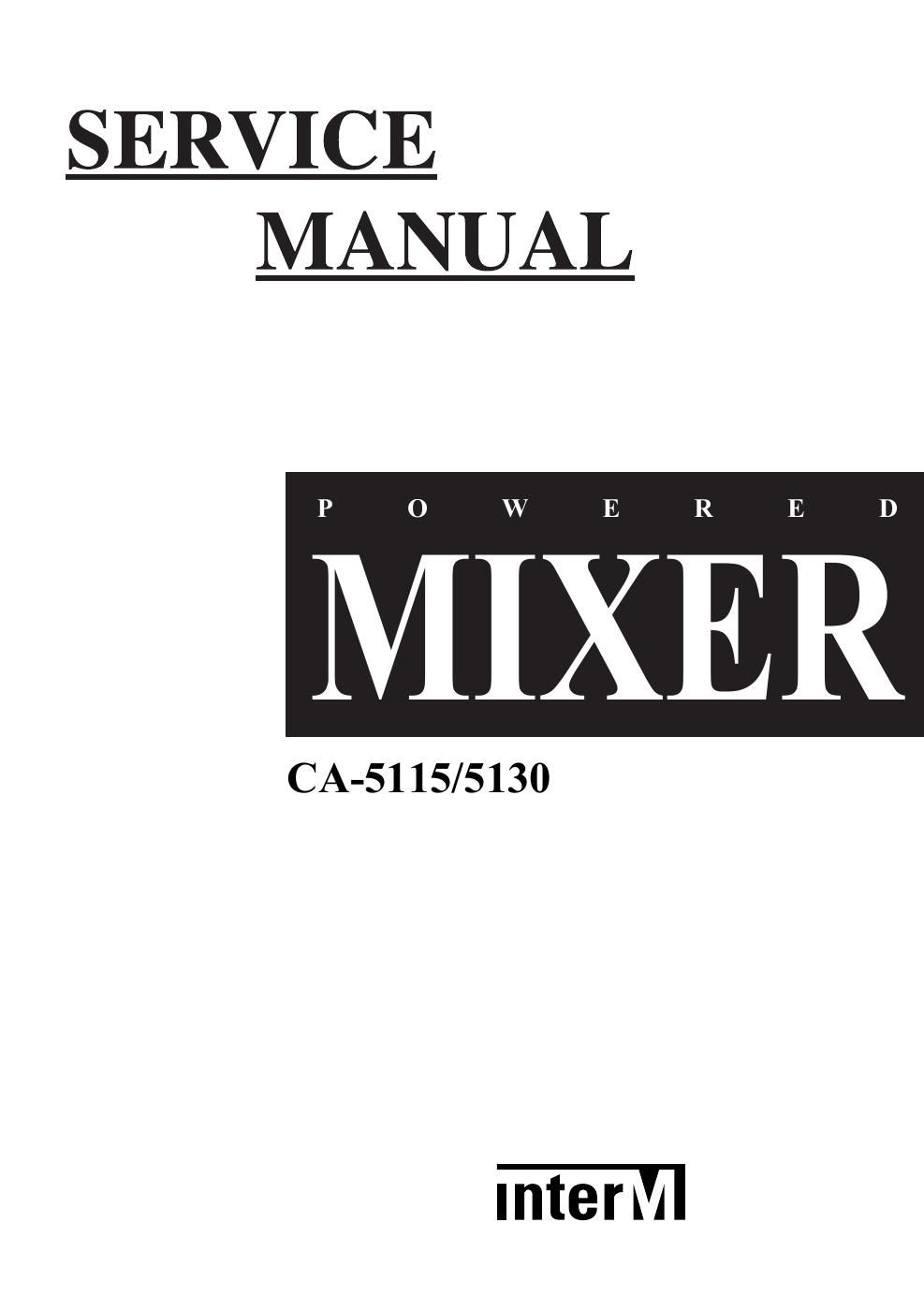

Page 1
SERVICE
MANUAL
InterM
Page 2
ELECTRICAL PARTS LISI' ( CA - 5115 / 5130 )
Ref No. Value QTY
MAIN B'D
AC1 AC 230V 50/ 60HZ 1
F1 1
BD1-2 1N4004X4 2
BD3 1
C301 1000P 1
C303 C308 C310 200P 3
C307 C306 10R 2
C305 33R 1
C311 C334-335 M104 3
C332-333 103 C/ C 2
C323 C325 104 2
C403 C407 104 M 2
C601 103P 400V/ AC 1
C304 C309 C401-402 4.7/50 4
C314 C316 C327 C330 47/ 50 4
C302 C315 C320 22/ 50 3
C318 C317 0.47/50 2
C319 1/ 50 1
C321 10/ 50 1
C322 C324 (CA-5115) 4700/63V 150W 2
C322 C324 (CA-5130) 6800/80 2
C326 C329 1000/ 25 2
C328 C331 100/ 25 2
C330 C327 47/ 50 2
C312-313 0.22/50 2
C404 47/ 50 1
C406 C408 100/ 63 3
D301 D306 1N4001 2
D302-303 D307 1N4004 3
D304-305 1N4148 2
LED2 PROTECT 1
F3 0.33 mH 1
U1 4558 1
PTl VPM5300 : 300W 1
R301 R307 R315 R350 47K 6
R355 R369
R302 R324 R344 R345 2.2K 4
R407 3.3K 1
R311 91 1
R310 R312 1.2K 2
R382-383 1.2K 2
R317 680 1
