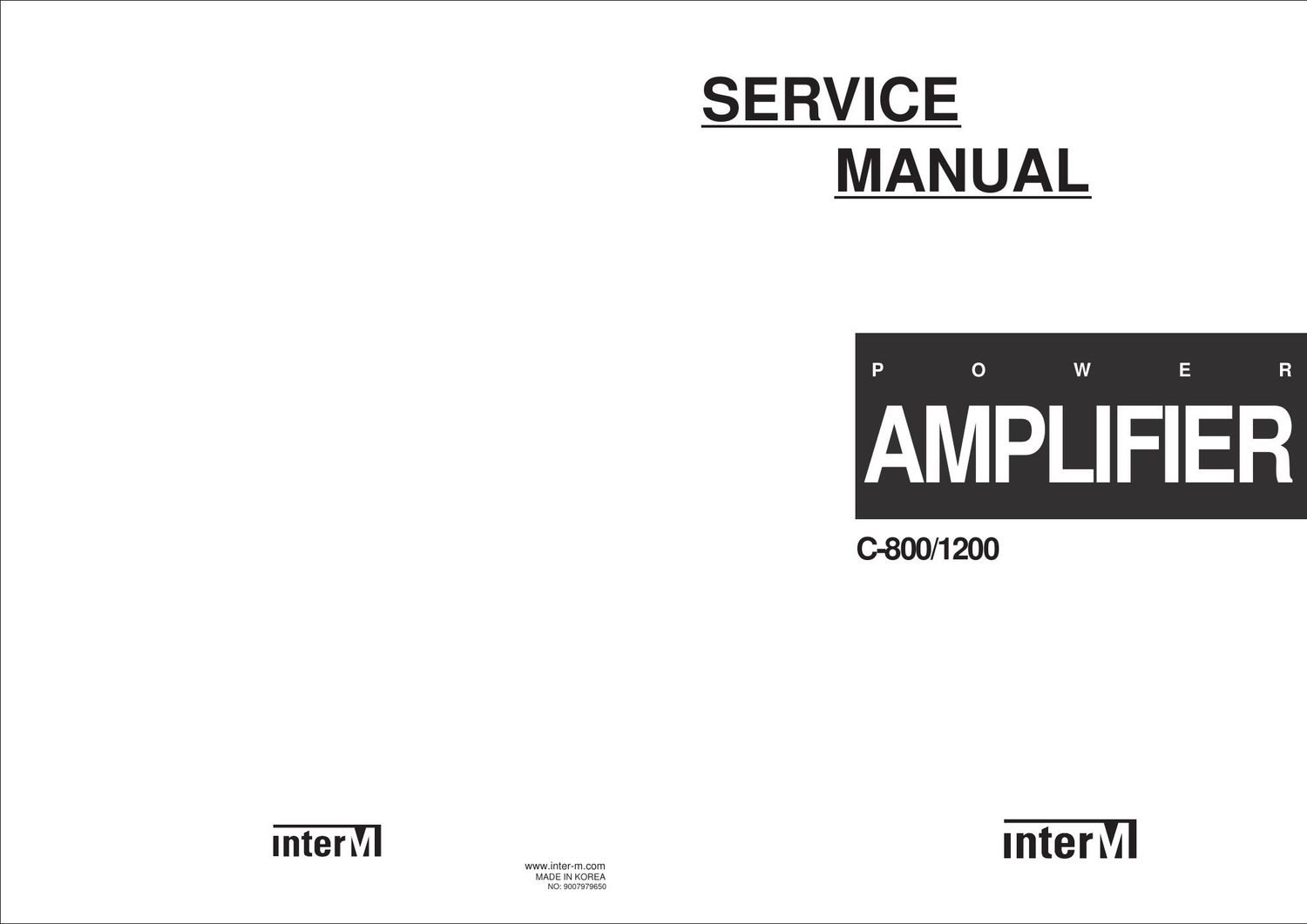

Interm c 800 c 1200 service manual
This is the 10 pages manual for interm c 800 c 1200 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from interm c 800 c 1200 service manual (Ocr-read)
Page 2
ELECTWCALADJUSTMENTPROCEDURE
I IDLE CURRENT
A. Setting
Set the master volume minimum.
B. Connection
O
TP1 TP2 O b
R146 R149
R246 R249 VOLT METER
@ @
SVR101 SVR201
AMP B D
C. Adjustment
- Adjust SVR101, SVR201 so that the current through the R146, R149, R246, R249 become 10
milliampere.
- When that voltage across the Positive TP to Negative TP becomes 10 millivolt, the current
becomes 21 milliampere.
CONTENTS
Electrical Adjustment Procedure 1
Specifications . . . . . . . . . . . . . . . . . . . . . . 2
Electrical Parts List -------------------- 3
Top and Bottom View of RC. Board - - - - - - - - - - - - -5.
Wiring Diagram ...................... 7
Block Diagram . . . . . . . . . . . . . . . . . . . 8
Schematic Diagram .................... 9 1o! 11, 12
Exploded View of Cabinet & Chassis / Mechanical Parts List . . 13, 14
Assy Drawing ...................... 151 16
