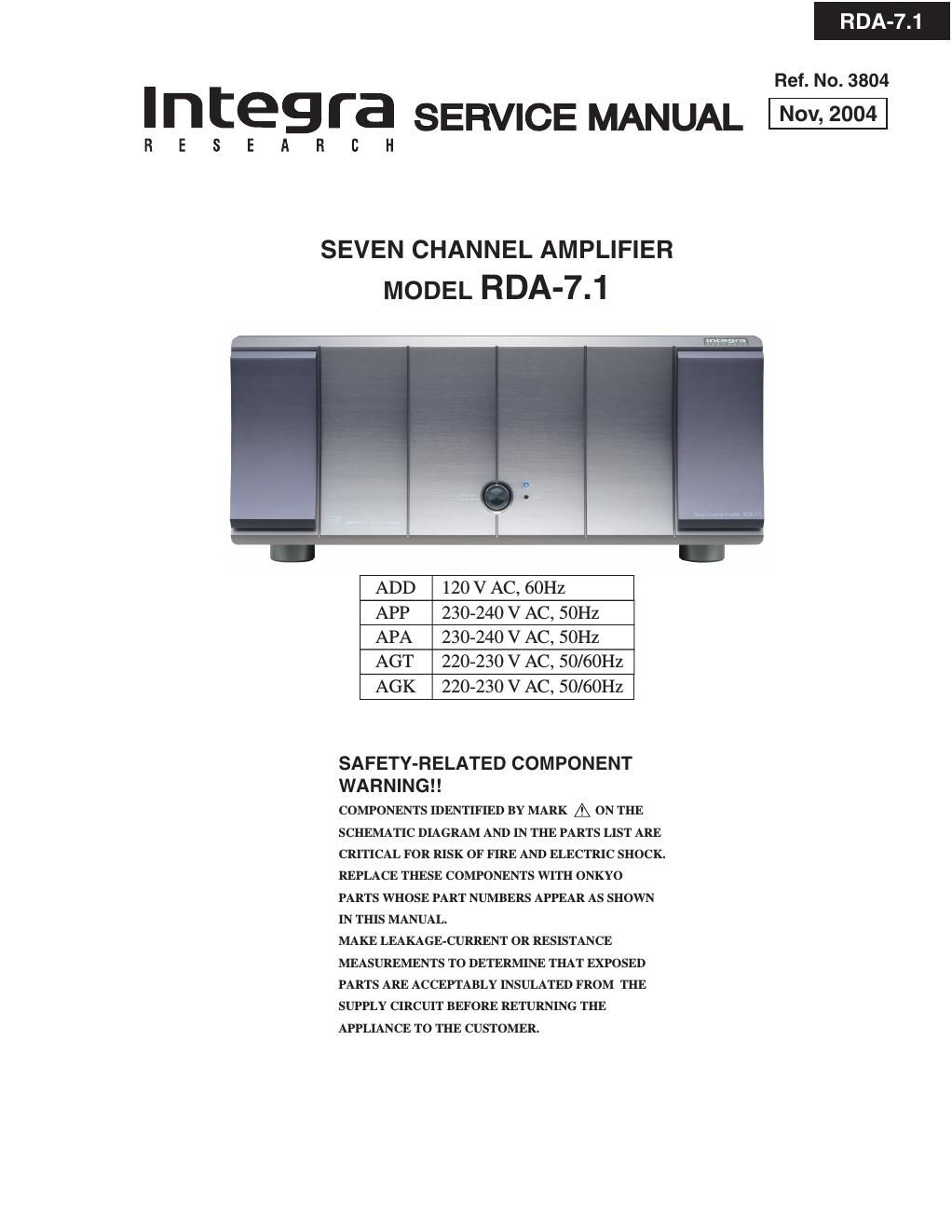

Page 1
RDA-7.1 SPECIFICATIONS AMPLIFIER SECTION Number of channels : Power : Frequency response at -3 dB : Input Impedance : Input signal for max output power : Input Sensitivity (Unbalanced) : Input Sensitivity (Balanced) : THD : Damping Factor : Power consumption USA, Canada and some Asian model : Other models : Rated Speaker Impedance : GENERAL Power Supply : Dimensions (W x H x D) : Weight :7 150 watts per channel min. RMS at 8 ohms, 2 channels driven from 20 Hz to 20 kHz with no more than 0.1 % total harmonic distortion (FTC). 300 watts per channel min. RMS at 4 ohms, 2 channels driven at 1 kHz with no more than 0.1 % total harmonic distortion (FTC). 350 W (EIAJ, 4 ohm, 1 kHz, 10 %) 300 W (DIN, 4 ohm, 1 kHz, 0.7 %) 3.5 Hz - 250 kHz 47 kohm each phase 1.2 V 100 mVrms 200 mV 0.03 % (20 Hz to 20 kHz) 40 at 8 ohm 15 A 10 A 4 ohms AC 120 V, 60 Hz AC 230 V, 50 Hz AC 220 V, 50/60 Hz 450 x 197 x 602 mm 17-11/16" x 7-3/4" x 23-11/16" 52.5 kg, 115.7 lbs. Specifications and features are subject to change without notice. Power supply and voltage vary depending on the area in which the unit is purchased.
Page 2
RDA-7.1 SERVICE PROCEDURE-1 PRIMARY CONNECTIONS FOR DIFFERENT VOLTAGES AC Board Jumpers For voltages in the 100V - 120V range, install the two jumpers marked L. For voltages in the 200V - 240V range, install the single jumper marked H. Main Transformer Jumpers The following connections should be made for different line voltages. 100V : K1-3 to TB1-4 P7 to TB1-3 P2 to TB1-2 K2-3 to TB1-12 P8 to TB1-11 P3 to TB1-10 110V : K1-3 to TB1-6 P7 to TB1-5 P2 to TB1-2 K2-3 to TB1-14 P8 to TB1-13 P3 to TB1-10 120V : K1-3 to TB1-8 P7 to TB1-7 P2 to TB1-2 K2-3 to TB1-16 P8 to TB1-15 P3 to TB1-10200V : K1-3 to TB1-4 TB1-2 to TB1-3 K2-3 to TB1-12 TB1-10 to TB1-11 220V : K1-3 to TB1-6 TB1-2 to TB1-5 K2-3 to TB1-14 TB1-10 to TB1-13 230V : K1-3 to TB1-6 TB1-2 to TB1-7 K2-3 to TB1-14 TB1-10 to TB1-15 240V : K1-3 to TB1-8 TB1-2 to TB1-7 K2-3 to TB1-16 TB1-10 to TB1-15
