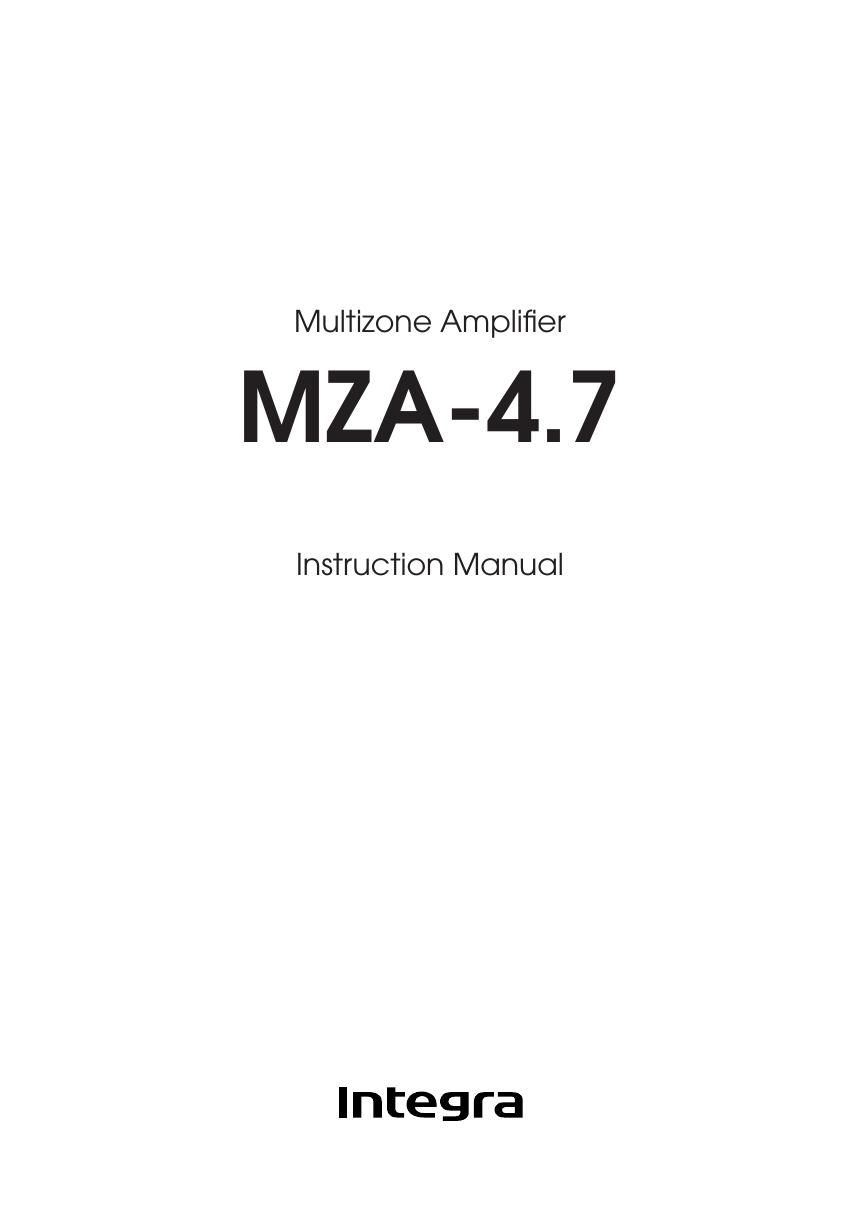

Integra mza 4 7 owners manual
This is the 28 pages manual for integra mza 4 7 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from integra mza 4 7 owners manual (Ocr-read)
Page 1
2 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8. Do not install near any heat sources such as radia- tors, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are pro- vided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience recepta- cles, and the point where they exit from the appara- tus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is dam- aged, B. If liquid has been spilled, or objects have fallen into the apparatus, C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation, E. If the apparatus has been dropped or damaged in any way, and F.When the apparatus exhibits a distinct change in performance this indicates a need for service. 16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous volt- age points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Dont put candles or other burning objects on top of this unit. 17. Batteries Always consider the environmental issues and fol- low local regulations when disposing of batteries. 18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is ade- quate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNINGRISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS PORTABLE CART WARNING S3125A
Page 2
3 Quick Install Guide Unpacking Immediately upon receiving your MZA-4.7 inspect the carton for evidence of mishandling during shipment. Then carefully unpack the unit and inspect for damage. Please save the shipping carton and all inner packing materials in the event that the MZA-4.7 needs to be shipped for service or moved to a new location. Should you discover that the MZA-4.7 has been damaged during shipping please contact your dealer immediately. 1. Check website for latest firmware, and upload if not current. 2. If adding an amplifier to an exiting stack or combin- ing amplifiers all firmware must be the same on all amplifiers 3. Zone setting. The units all ship with zones 1,2,3,4 already setup. To add additional amplifiers to a stack the zones must be changed on the additional amplifiers. If there are zone duplications in a stack of amplifiers the zones with the same number will exactly mirror each others operation. To change an amplifier zone follow the following steps. -Do not connect the expansion bus cable. -From the front facia rotate the Knob to select the appropriate amplifier – turn it on, and then select the More menu (right arrow). Scroll through the menu and select Set Zone and change to the required assignment pushing the Knob to set. 4. Wire the keypads to the rear of the amplifier. 5. To setup the keypad follow the Controllers instruc- tion manual, Briefly: -with a zone, press the SET key (behind the cover plate) followed by the S2 key. -Turn the required amplifier zone ON and OFF twice. The Keypad beeps signalling it has been successfully zoned. The Keypad now controls that zone. -Learn codes into the Keypad by first selecting the source button ie S3. Press the SET key followed by the S1 key to enter keypad IR learning mode. -Press the button you want to learn an IR code into. -Align the remote with the front lower window and press the button on the remote to donate the IR code to that button. Continue learning codes for that source. -Press the SET key to exit learn mode. -Select the next source, ie S2. Then press SET followed by S1 and repeat the learning process. 6. To prevent a user from changing the MZA-4.7s critical installation settings, Setup Lockout can be selected in the Setup Menu. To enter the setup menu press and hold the multi jog for > 10 second, scroll through to Setup Lockout enter and select Yes. The Setup and More menus on the amplifier are no longer accessible to the user. 7. To unlock the MZA-4.7, return to the setup menu as above. And enter the password: 1396 Table of Contents Important Safety Instructions...............................2 Quick Install Guide ..............................................3 Supplied Accessories ..........................................3 Precautions .........................................................4 Features ..............................................................5 Part Names and Functions ..................................7 Typical System Configuration..............................9 Controller Termination .......................................11 Advanced IR Control .........................................12 Multiple MZA-4.7 Stacks ...................................13 Zone Linking ......................................................14 Automation ........................................................15 RS232 Protocol .................................................16 Menu Navigation ...............................................20 Programming Using IMC (Integra Music Center)...... 22 Specifications ....................................................28 Supplied Accessories Make sure you have the following accessories: *In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color. AC Power Cable CD-ROM
