Integra key 5 7 owners manual
This is the 24 pages manual for integra key 5 7 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from integra key 5 7 owners manual (Ocr-read)

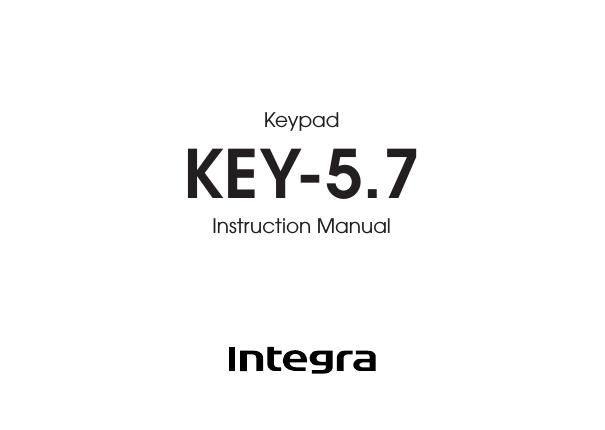

Page 1
2 Precautions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Never expose the unit to moisture. 7. Suitable only for use Indoors. 8. Only connect specified supply volt- ages. 9. Connect only to the specified termi- nals. For U.S. models FCC information for User CAUTION: The user changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter- ference in a residential installation. For Canadian Models NOTE: THIS CLASS B DIGITAL APPARA- TUS COMPLIES WITH CANADIAN ICES- 003. Modèle pour les Canadien REMARGUE: CET APPAPEIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.
Page 2
3 Table of Contents Precautions ..................................... 2 Introduction ...................................... 3 Features .......................................... 4 Part Names and Function ................ 5 Installation ....................................... 8 System Wiring ................................. 9 Manual Programming .................... 11 Troubleshooting ............................. 16 Specifications ................................ 18 Thank you for purchasing an Integra KEY-5.7 keypad. Please read this manual thoroughly before making connections and plugging in the unit. F ollowing the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new key- pad. Please retain this manual for future reference. Introduction The Integra KEY-5.7 keypad is IR learning and includes a host of features to simplify/ enhance the amplifier and source equipment control. When used with an Integra MZA-4.7 amplifier it provides feedback of source selection, power and volume status. The Keypad may be programmed manually, or by a USB connected PC running Integra keypad manager. The Integra Keypad Man- ager software is part of the Integra Software Suite available on the product CD or from the Integra website: www.integrahometheater.com
