Extracted text from integra imc owners manual (Ocr-read)

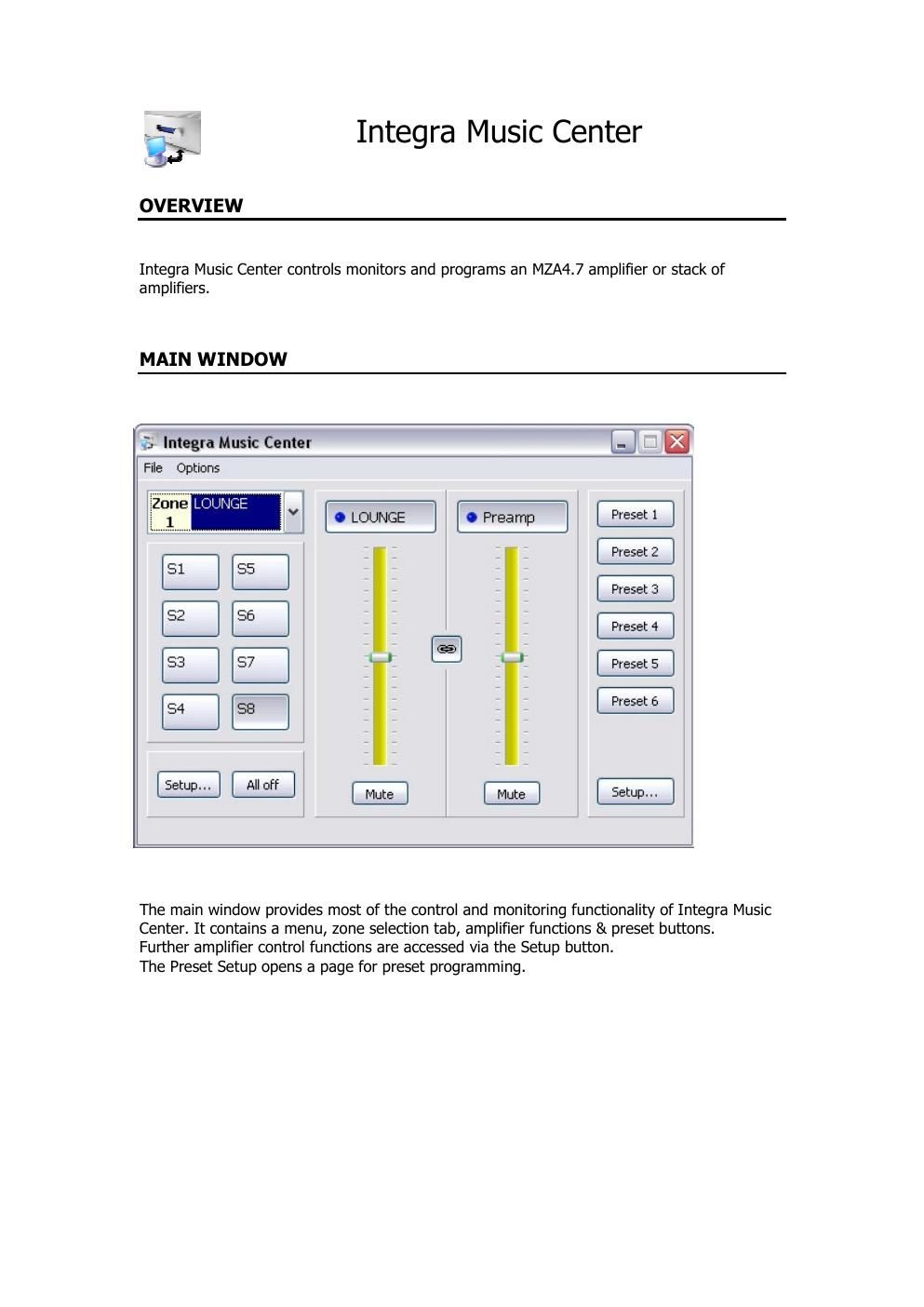

Page 1
FILE MENU New Window: Opens another or multiple main windows. Keypad window: Opens a window representing an Integra KEY-5.7 keypad. If a keypad is connected to the MZA-4.7 then selecting a key on the keypad using a left mouse cl ick will cause the specific zoned keypad to emit the ke ys IR command. View amplifier log: Displays the amplifier log for the connected Integr a MZA4.7 amplifier. The log records thermal protection events, date and Restore Default changes. Upload sound: Opens a directory where a suitable .wav file may be selected and uploaded to the amplifier doorbell memory. The maximum size is 1.5 seconds. Exit: Closes Integra Music Center.
Page 2
OPTIONS MENU Select the appropriate communication port. If connecting via USB to an Integra MZA4.7 amplifier for the first time, windows may require directing to the appropri ate driver. See: USB driver setup ZONE SELECTION TAB The currently selected Integra zone is displayed in the tab. Moving the cursor over the tab displays details of the connected Integra amplifier. To select a different zone, select the down arrow. A zone list is displayed. Make the required selecti on. The main window displays the settings of the select ed zone. STANDBY When a zone is On the standby button is depressed and the buttons blue indicator is illuminated. Both the Amplifier and Preamplifier standby buttons may be labelled with room names. Right mouse click on the standby button opens the label edit window. Change the text and Click OK to save and exit. The text is transferred to the multi-zone amplifier.
