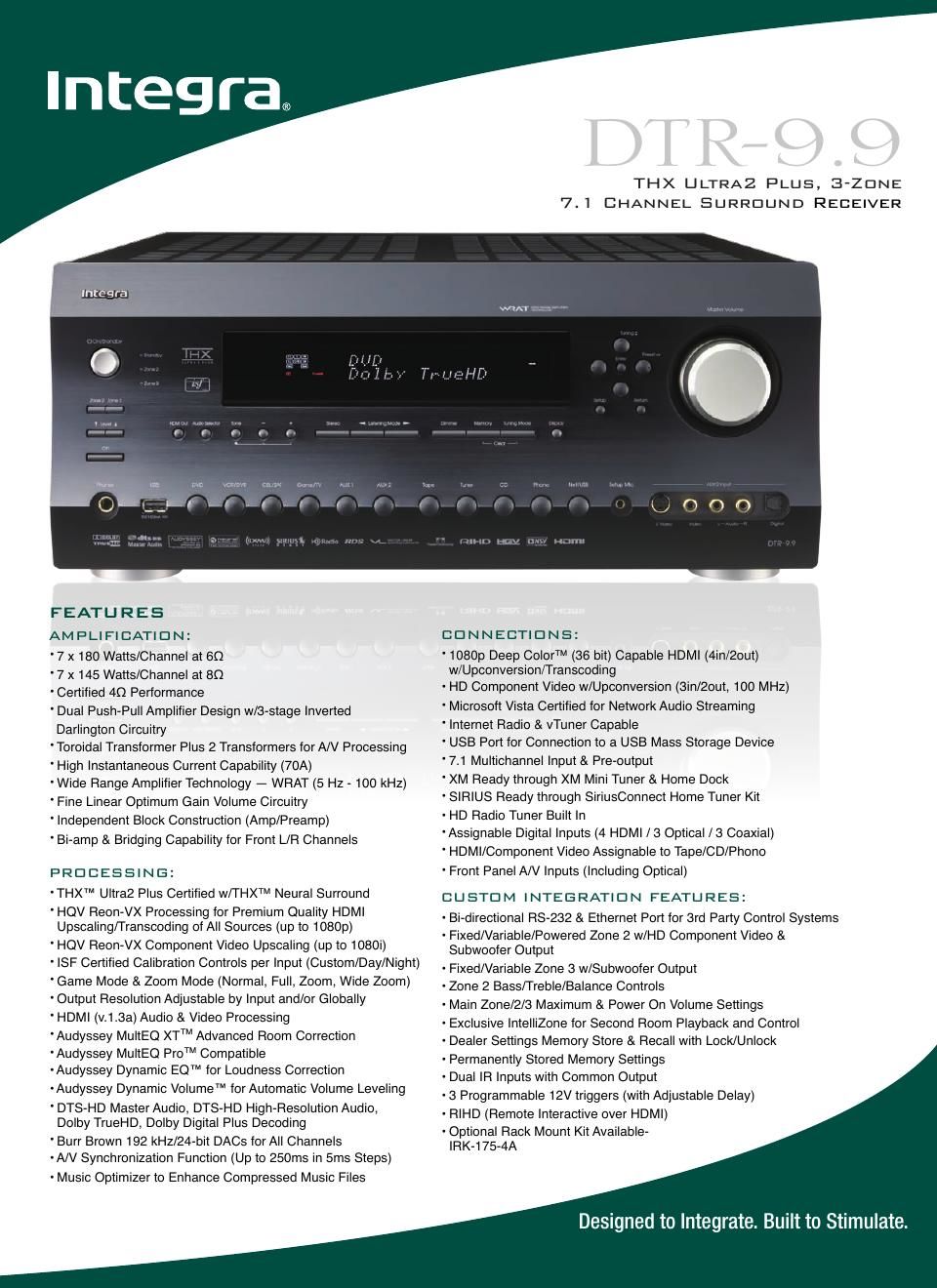

Integra dtr 9 9 brochure

Page 1

SPECIFICATIONS AMPLIFIER Continuous average power output (FTC) All channels: 145 W per channel min. RMS at 8Ω, 2 channels driven from 20 Hz to 20 kHz with no more than 0.05% total harmonic distortion. 185 W min. RMS at 6Ω, 2 channels driven from 1 kHz with no more than 0.1% total harmonic distortion. Dynamic power output (stereo): 2 × 400 W at 3Ω 2 × 300 W at 4Ω 2 × 180 W at 8Ω Frequency response: 5 Hz to 100 kHz: +1/–3 dB Signal-to-noise ratio: 110 dB (LINE, IHF-A) Total harmonic distortion: 0.05% at rated power IM distortion: 0.05% at rated power Damping factor: 60 at 8Ω Speaker impedance: 4Ω to 16Ω INPUT SENSITIVITY AND IMPEDANCE Line: 200 mV, 47 kΩ Phono: 2.5 mV/47 kΩ OUTPUT LEVEL AND IMPEDANCE Rec out: 200 mV, 470Ω Pre out: 1 V, 470Ω Zone 2 line output: 100 mV, 470Ω Designed to Integrate. Built to Stimulate. www.integrahometheater.com THX Ultra2 Plus, 3-Zone 7.1 Channel Surround Receiver TONE CONTROL Bass: ±10 dB at 50 Hz Treble: ±10 dB at 20 kHz FM Tuning range: 87.5–107.9 MHz (100-kHz steps) Usable sensitivity, stereo: 22.2 dBf, 2.0 μV (75Ω IHF) AM Tuning range: 530–1,710 kHz (10-kHz steps) Usable sensitivity: 300 μV/m DIGITAL TUNER HD Radio, XM and SIRIUS Ready GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 9.8 A Dimensions (W x H x D): 17-1/8 x 7-5/8 x 17-7/8 433 x 194 x 454 mm Weight: 53.61 lbs. (24.3 kg) Optional mounting kit: IRK-175-4A U dimension: 4U XM is a registered trademark of XM Satellite Radio Holdings, Inc. SIRIUS is a registered trademark of SIRIUS Satellite Radio Inc. THX is a trademark of THX Ltd. All others are trademarks or registered trademarks of their respective holders. Due to a policy of continuous product improvement, Integra reserves the right to change specifications and appearance without notice. 08/2008 Printed in the USA 454 [17.89] 38 [1.5] 267 [10.51] 175 [6.89] 194 [7.64] 433 [17.06] 360 [14.17] DTR-9.9
