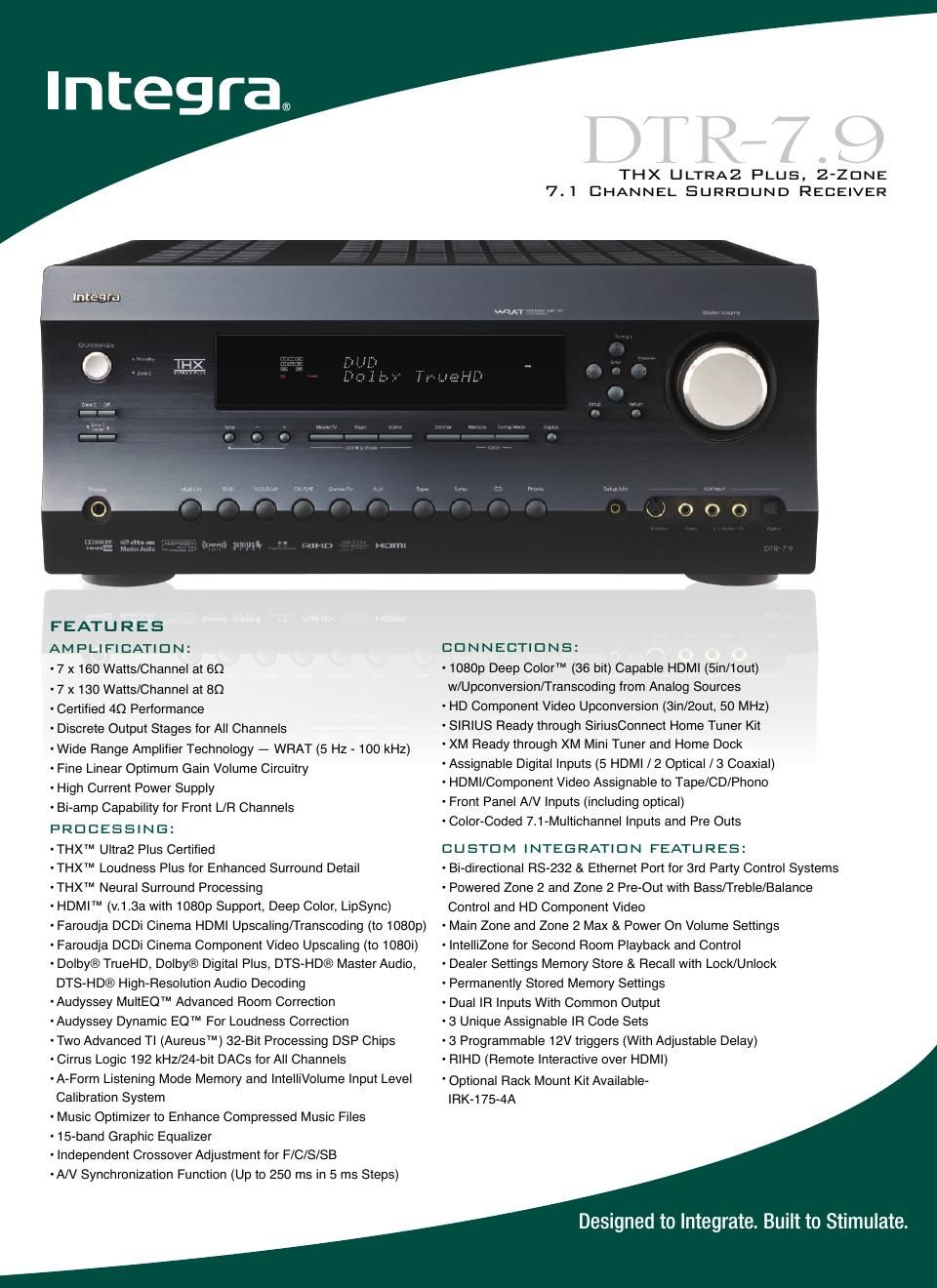

Integra dtr 7 9 brochure

Page 1

SPECIFICATIONS AMPLIFIER Continuous average power output (FTC) All channels: 130 W per channel min. RMS at 8Ω, 2 channels driven from 20 Hz to 20 kHz with no more than 0.08% total harmonic distortion. 160 W min. RMS at 6Ω, 2 channels driven from 1 kHz with no more than 0.1% total harmonic distortion. Dynamic power output (stereo): 2 × 300 W at 3Ω 2 × 250 W at 4Ω 2 × 150 W at 8Ω Frequency response: 5 Hz to 100 kHz: +1/–3 dB Signal-to-noise ratio: 106 dB (LINE, IHF-A) Total harmonic distortion: 0.08% at rated power IM distortion: 0.08% at rated power Damping factor: 60 at 8Ω Speaker impedance: 4Ω to 16Ω INPUT SENSITIVITY AND IMPEDANCE Line: 200 mV, 47 kΩ OUTPUT LEVEL AND IMPEDANCE Rec out: 200 mV, 470Ω Pre out: 1 V, 470Ω Zone 2 line output: 100 mV, 470Ω TONE CONTROL Bass: ±10 dB at 50 Hz Treble: ±10 dB at 20 kHz FM Tuning range: 87.5-107.9 MHz (100-kHz steps) Usable sensitivity, stereo: 22.2 dBf, 2.0 µV (75Ω IHF) AM Tuning range: 530-1,710 kHz (10-kHz steps) Usable sensitivity: 300 µV/m DIGITAL TUNER *XM, SIRIUS GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 7.8 A Dimensions (W x H x D): 17-1/8 x 7-5/8 x 16-13/16 435 x 194 x 427 mm Weight: 37.1 lbs. (16.8 kg) Optional mounting kit: IRK-175-4A U dimension: 4U *SIRIUS requires separate purchase of subscription and SiriusConnect Tuner Kit. XM requires seperate purchase of subscription and XM Connect & Play antenna THX Ultra2 Plus, 2-Zone 7.1 Channel Surround Receiver XM is a registered trademark of XM Satellite Radio Holdings, Inc. SIRIUS is a registered trademark of SIRIUS Satellite Radio Inc. THX is a trademark of THX Ltd. All others are trademarks or registered trademarks of their respective holders. Due to a policy of continuous product improvement, Integra reserves the right to change specifications and appearance without notice. 07/2008 Printed in the USA Designed to Integrate. Built to Stimulate. www.integrahometheater.com 193.4 [7.61] 175 [6.89] 360 [14.17] 433 [17.06] 426.8 [16.80] 259 [10.2] 38 [1.5] 367.3 [14.46] DTR-7.9
