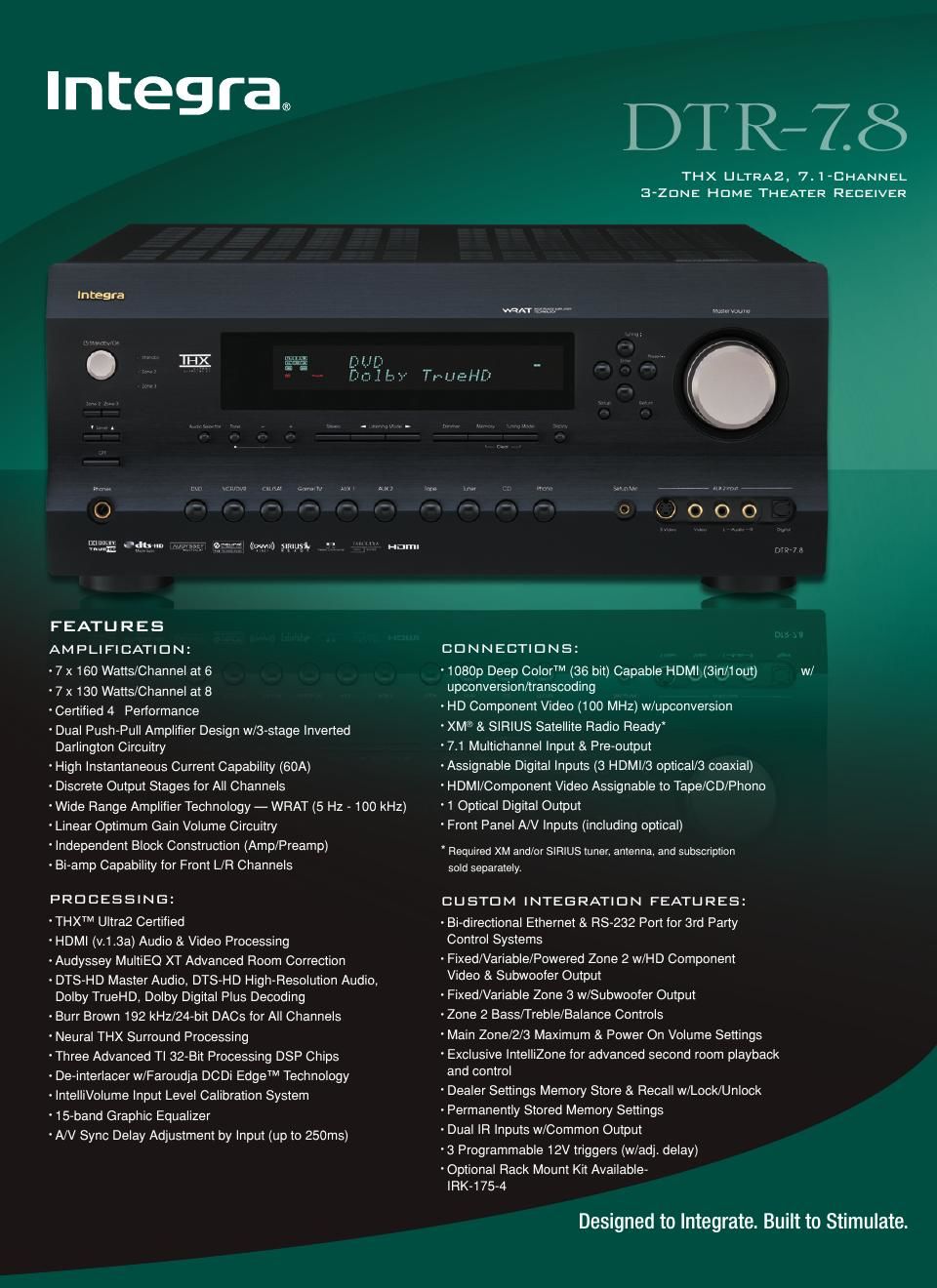

Integra dtr 7 8 brochure

Page 1

Designed to Integrate. Built to Stimulate. SPECIFICATIONS AMPLIFIER Continuous average power output (FTC) All channels: 120 W per channel min. RMS at 8Ω, 2 channels driven from 20 Hz to 20 kHz with no more than 0.05% total harmonic distortion. 160 W min. RMS at 6Ω, 2 channels driven from 1 kHz with no more than 0.1% total harmonic distortion. Dynamic power output (stereo): 2 × 300 W at 3Ω 2 × 250 W at 4Ω 2 × 150 W at 8Ω Frequency response: 5 Hz to 100 kHz: +1/–3 dB Signal-to-noise ratio: 110 dB (LINE, IHF-A) Total harmonic distortion: 0.05% at rated power IM distortion: 0.05% at rated power Damping factor: 60 at 8Ω Speaker impedance: 4Ω to 16Ω INPUT SENSITIVITY AND IMPEDANCE Line: 200 mV, 47 kΩ Phono: 2.5 mV, 47 kΩ OUTPUT LEVEL AND IMPEDANCE Rec out: 200 mV, 470Ω Pre out: 1 V, 470Ω Zone 2 line output: 100 mV, 470Ω TONE CONTROL Bass: ±10 dB at 50 Hz Treble: ±10 dB at 20 kHz FM Tuning range: 87.5-107.9 MHz (100-kHz steps) Usable sensitivity, stereo: 22.2 dBf, 2.0 µV (75Ω IHF) AM Tuning range: 530-1,710 kHz (10-kHz steps) Usable sensitivity: 300 µV/m GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 9.5 A Dimensions (W x H x D): 17-1/8 x 7-5/8 x 18-1/16 435 x 194 x 458.5 mm Weight: 50.9 lbs. (23.1 kg) Optional mounting kit: IRK-175-4 U dimension: 4U XM is a registered trademark of XM Satellite Radio Holdings, Inc\ .SIRIUS is a registered trademark of SIRIUS Satellite Radio Inc.THX is a trademark of THX Ltd.All others are trademarks or registered trademarks of their respective h\ olders.Product features and specifications subject to change without notice. THX Ultra2, 7.1-Channel 3-Zone Home Theater Receiver DTR-7.8
