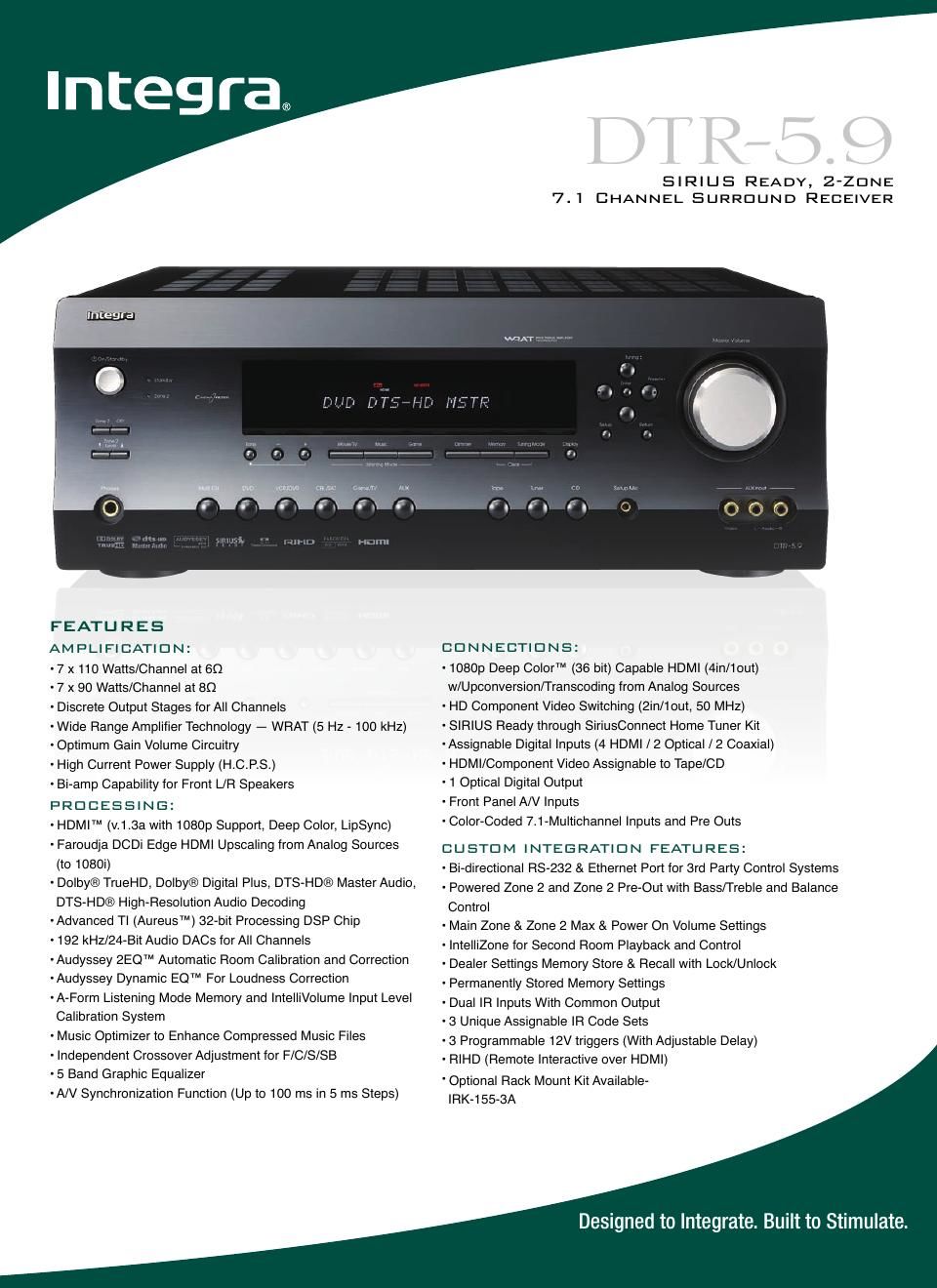

Integra dtr 5 9 brochure

Page 1

SPECIFICATIONS AMPLIFIER Continuous average power output (FTC) All channels: 90 W per channel min. RMS at 8Ω, 2 channels driven from 20 Hz to 20 kHz with no more than 0.08% total harmonic distortion. 110 W min. RMS at 6Ω, 2 channels driven from 1 kHz with no more than 0.1% total harmonic distortion. Dynamic power output (stereo): 2 × 210 W at 3Ω 2 × 180 W at 4Ω 2 × 110 W at 8Ω Frequency response: 5 Hz to 100 kHz: +1/–3 dB Signal-to-noise ratio: 106 dB (LINE, IHF-A) Total harmonic distortion: 0.08% at rated power IM distortion: 0.08% at rated power Damping factor: 60 at 8Ω Speaker impedance: 6Ω to 16Ω INPUT SENSITIVITY AND IMPEDANCE Line: 200 mV, 47 kΩ OUTPUT LEVEL AND IMPEDANCE Rec out: 200 mV, 470Ω Pre out: 1 V, 470Ω Zone 2 line output: 100 mV, 470Ω TONE CONTROL Bass: ±10 dB at 50 Hz Treble: ±10 dB at 20 kHz FM Tuning range: 87.5-107.9 MHz (100-kHz steps) Usable sensitivity, stereo: 22.2 dBf, 2.0 µV (75 ohm IHF) AM Tuning range: 530-1,710 kHz (10-kHz steps) Usable sensitivity: 300 µV/m DIGITAL TUNER SIRIUS* GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 5.5 A Dimensions (W x H x D): 17-1/8 x 6-13/16 x 15-3/8 435 x 173 x 391 mm Weight: 25.6 lbs. (11.6 kg) Optional mounting kit: IRK-155-3A U dimension: 4U *SIRIUS requires separate purchase of subscription and SiriusConnect Home Tuner Kit. SIRIUS Ready, 2-Zone 7.1 Channel Surround Receiver SIRIUS is a registered trademark of SIRIUS Satellite Radio Inc. All others are trademarks or registered trademarks of their respective holders. Due to a policy of continuous product improvement, Integra reserves the right to change specifications and appearance without notice. 06/2008 Printed in the USA Designed to Integrate. Built to Stimulate. www.integrahometheater.com 173 [6.81] 157 [6.18] 360 [14.17] 435 [17.13] 152.5 [6.00] 94 [3.70] 391 [15.39] 215 [8.46] 40 [1.57] 328 [12.91] DTR-5.9
