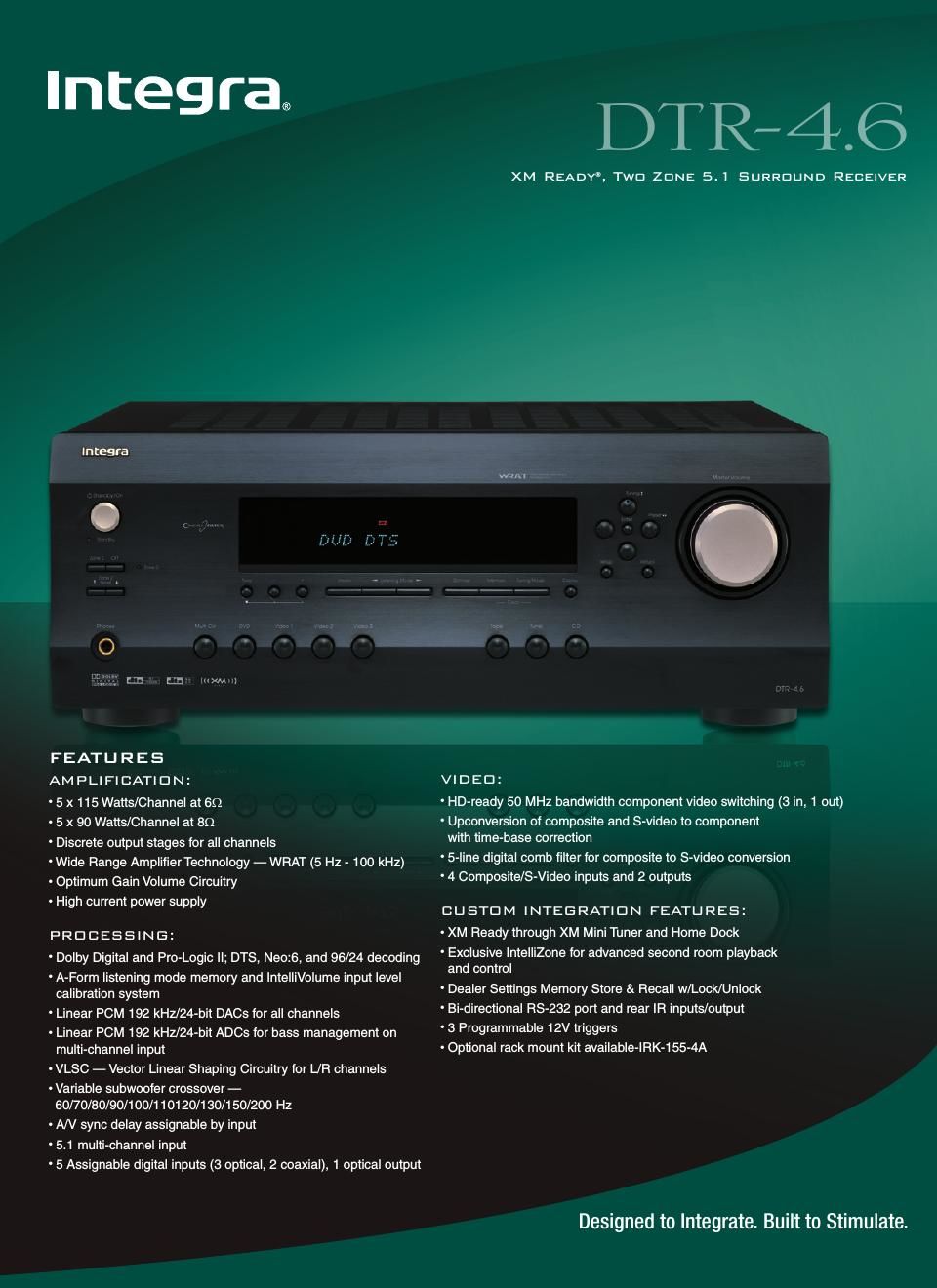

Integra dtr 4 6 brochure

Page 1

Designed to Integrate. Built to Stimulate. SPECIFICATIONS AMPLIFIER Continuous average power output (FTC) All channels: 90 W per channel min. RMS at 8 Ω, 2 channels driven from 20 Hz to 20 kHz with no more than 0.08% total harmonic distortion. 115 W min. RMS at 6 Ω, 2 channels driven from 1 kHz with no more than 0.1% total harmonic distortion. Dynamic power output (stereo): 2 × 225 W at 3Z 2 × 170 W at 4 Ω 2 × 105 W at 8 Ω Frequency response: 5 Hz to 100 kHz +1/-3 dB Single-to-noise ratio: 100 dB (IHFA, 0.5 V input) Total harmonic distortion: 0.08% at rated power IM distortion: 0.08% at rated power Damping factor: 60 at 8 Ω Muting: Set by user INPUT SENSITIVITY AND IMPEDANCE Line (CD, Tape, DVD, Video 1-3): 200 Ω mV, 47 k Ω Multi-Channel input (Front L/C/R, Surround L/R): 200 Ω mV, 47 k Ω (Subwoofer): 36 Ω mV, 47 k Ω OUTPUT LEVEL AND IMPEDANCE Rec out (Tape, Video 1, 2): 200 Ω mV, 470 Ω Pre out: 1 V, 470 Ω Zone 2 line output: 100 mV, 470 Ω TONE CONTROL Bass: ±10 dB at 50 Hz Treble: ±10 dB at 20 Hz FM Tuning range: 87.5-107.9 MHz (100-kHz steps) Usable sensitivity, stereo: 22.2 dBf, 2.0 µV (75 Ω IHF) AM Tuning range: 530-1,700 kHz (10-kHz steps) Usable sensitivity, stereo: 300 µV/m GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 5.7 A Dimensions (W x H x D): 17-1/8 x 6-13/16 x 16-7/8 435 x 173.5 x 428.5 mm Weight: 25.8 lbs. (11.7 kg) Optional mounting kit: IRK-155-4A U dimension: 4U XM is a registered trademark of XM Satellite Radio Holdings, Inc. All others are trademarks or registered trademarks of their respective holders. Product features and specifications subject to change without notice. XM Ready ®, Two Zone 5.1 Surround Receiver DTR- 4.6
