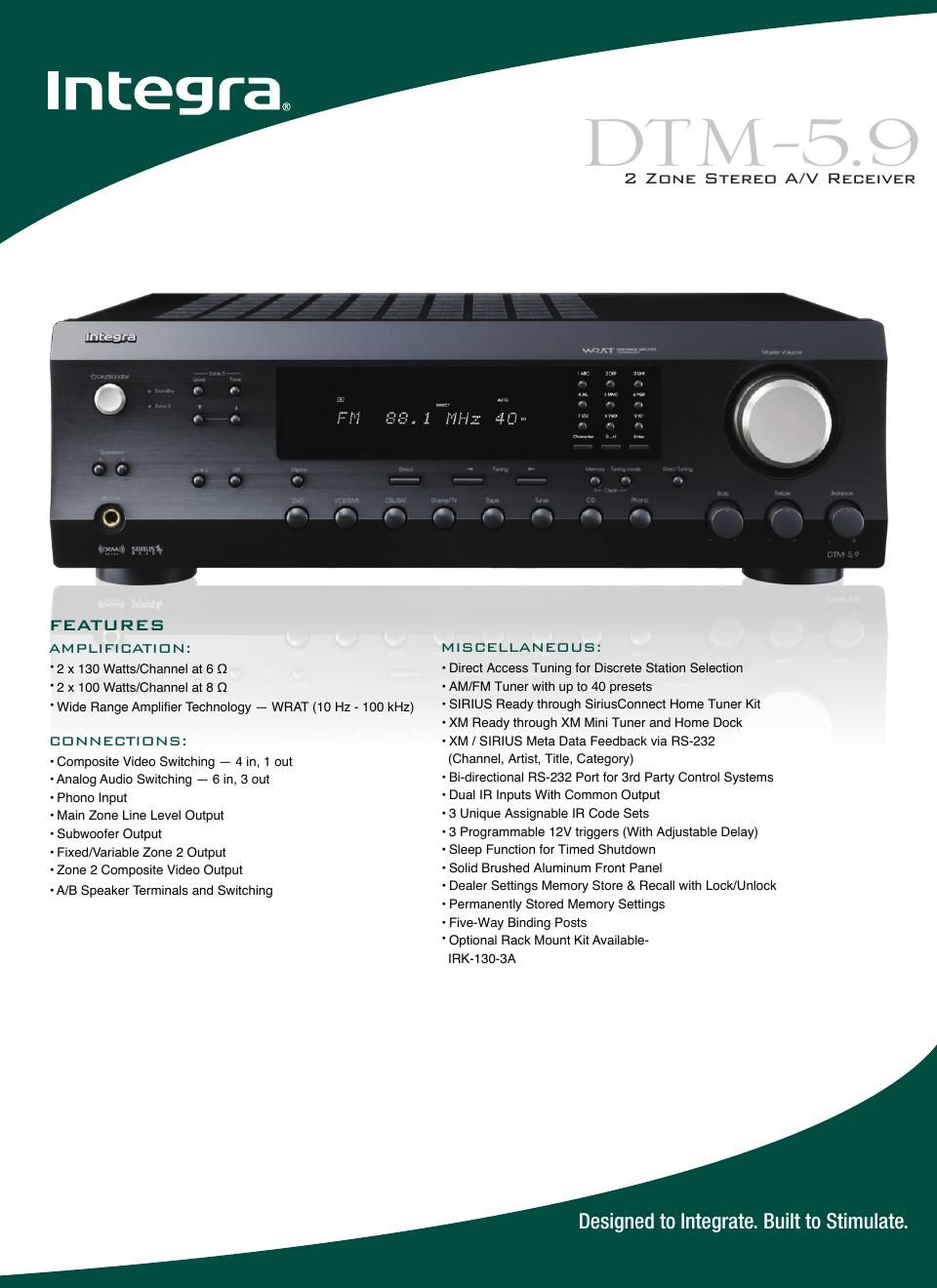

Integra dtm 5 9 brochure

Page 1

SPECIFICATIONS AMPLIFIER SECTION Continous average power output (FTC): 100 W per channel min. RMS at 8Ω, 2 channels driven from 20 Hz to 20 kHz, with no more than 0.08% total harmonic distortion. Dynamic power output: 2 x 230 Watts at 4Ω 2 x 170 Watts at 6Ω 2 x 145 Watts at 8Ω Total harmonic distortion: 0.08% at rated power Frequency Response: 20 Hz to 30 kHz; ±1 dB Signal-to-noise ratio: 100 dB (IHF A. 0.5 V input) IM Distortion: 0.08% at rated power Damping Factor: 60 at 8Ω INPUT SENSITIVITY AND IMPEDANCE Line (CD, Tape 1-2, Video, DVD): 150 mV, 50 kΩ PHONO Input sensitivity: 2.5 mV, 50 k ohms Overload: 120 mV RMS at 1 kHz, 0.5% THD RIAA Deviation: 20 Hz to 20 kHz: ±0.8 dB Signal-to-noise ratio: 80 dB (IHF A, 0.5 V input) OUTPUT LEVEL AND IMPEDANCE Rec out (Tape 1-2, Video): 150 mV, 2.2 kΩ Zone 2 line output: 150 mV, 2.2 kΩ TONE CONTROL Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10,000 Hz FM Tuning range: 87.5–108.0 MHz (100-kHz steps) Usable sensitivity, stereo: 17.2 dB f, 2.0 µV (75 ohms IHF) AM Tuning range: 530–1,710 kHz (10-kHz steps) Usable sensitivity: 30 µV DIGITAL TUNER *XM, SIRIUS GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 2.8 A Dimensions (W x H x D): 17-1/8 x 5-7/8 x 13-3/16 435 x 150 x 335 mm Weight: 18.7 lbs. (8.5 kg) Optional mounting kit: IRK-130-3A U dimension: 3U *SIRIUS requires separate purchase of subscription and SiriusConnect Tuner Kit. XM requires seperate purchase of subscription and XM Connect & Play antenna 2 Zone Stereo A/V Receiver XM is a registered trademark of XM Satellite Radio Holdings, Inc.SIRIUS is a registered trademark of SIRIUS Satellite Radio Inc. All others are trademarks or registered trademarks of their respective holders. Due to a policy of continuous product improvement, Integra reserves the right to change specifications and appearance without notice. 08/2008 Printed in the USA Designed to Integrate. Built to Stimulate. www.integrahometheater.com 360 [14.17] 435 [17.13] 335.2 [13.2] 178 [7.0] 38.7 [1.52] 149.8 [5.9] 130.3 [5.13] 49.5 [1.95] DTM-5.9 DTM-5.9
