Integra dtm 5 3 brochure

Page 1

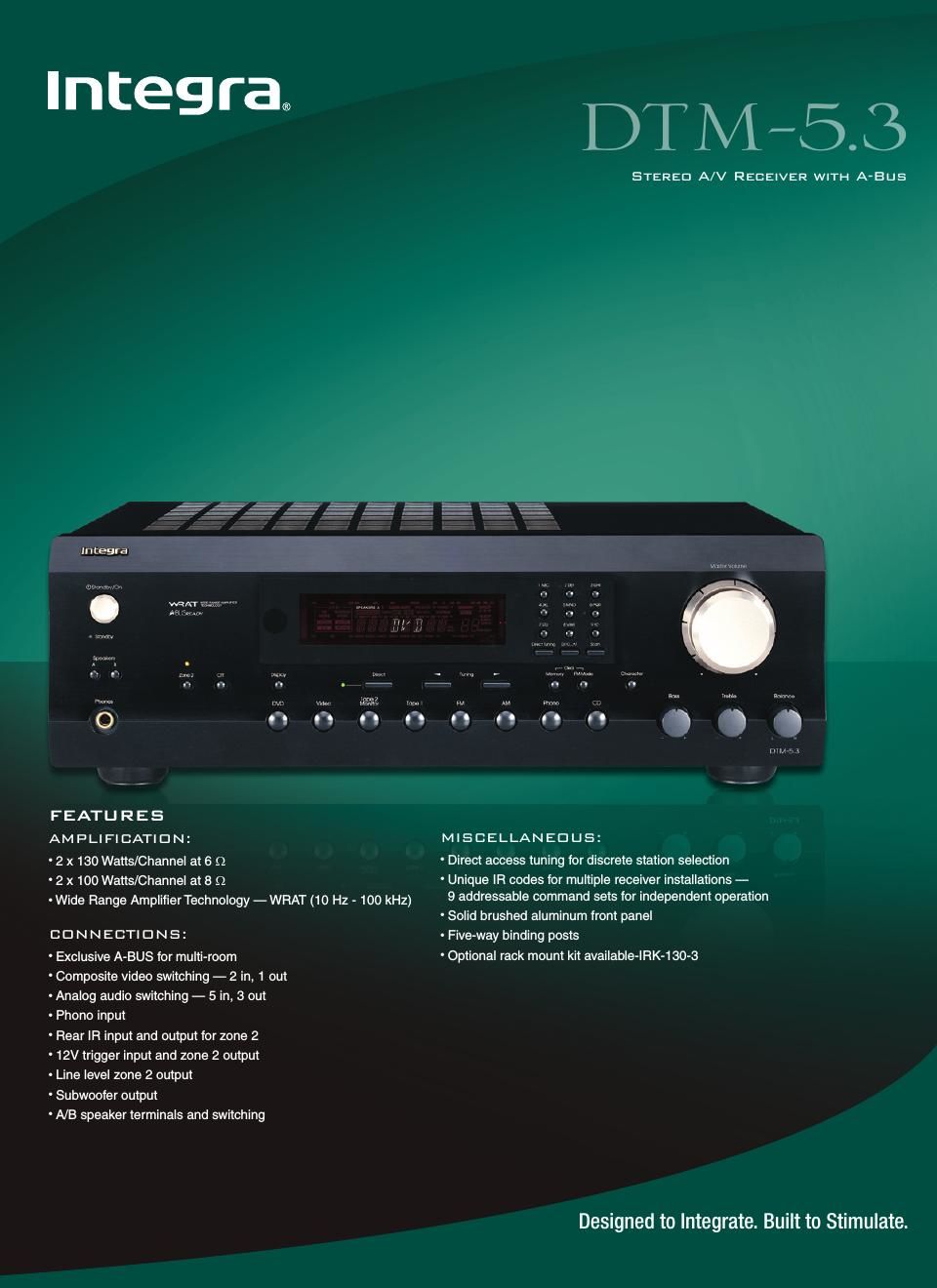

Designed to Integrate. Built to Stimulate. SPECIFICATIONS AMPLIFIER SECTION Continous average power output (FTC): 100 W per channel min. RMS at 8 Ω, both channels driven from 20 Hz to 20 kHz, with no more than 0.08% total harmonic distortion. Dynamic power output: 2 x 170 Watts at 2 Ω 2 x 135 Watts at 4 Ω 2 x 140 Watts at 8 Ω Total harmonic distortion: 0.08% at rated power Frequency Response: 20 Hz to 30 kHz; ±1 dB Signal-to-noise ratio: 100 dB (IHF A. 0.5 V input) IM Distortion: 0.08% at rated power Damping Factor: 60 at 8 Ω Muting: -50 dB INPUT SENSITIVITY AND IMPEDANCE Line (CD, Tape 1-2, Video, DVD): 150 mV, 50 k Ω OUTPUT LEVEL AND IMPEDANCE Rec out (Tape 1-2, Video): 150 mV, 2.2 k Ω Zone 2 line output: 150 mV, 2.2 k Ω TONE CONTROL Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10,000 Hz FM Tuning range: 87.5–108.0 MHz (100-kHz steps) Usable sensitivity, stereo: 17.2 dB f, 2.0 µV (75 ohms IHF) AM Tuning range: 530–1,710 kHz (10-kHz steps) Usable sensitivity: 30 µV PHONO Input sensitivity: 2.5 mV, 50 k ohms Overload: 120 mV RMS at 1 kHz, 0.5% THD RIAA Deviation: 20 Hz to 20 kHz: ±0.8 dB Signal-to-noise ratio: 80 dB (IHF A, 0.5 V input) GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 2.8 A Dimensions (W x H x D): 17-1/8 x 5-7/8 x 13-7/16 435 x 150 x 341 mm Weight: 19.8 lbs. (9.0 kg) Optional mounting kit: IRK-130-3 U dimension: 3U Product features and specifications subject to change without notice. Stereo A/V Receiver with A-Bus DTM-5.3
